97 4.6 Longtube Headers installed

Well after getting yelled at by alot of people for having crappy JBA shortys on my new motor, I decided to look into an upgrade. Being the cheapskate I am, I wasn't about to pay out for the Kooks headers, and the guy I found that makes longtubes for my car wanted 1300 bucks for a set so that was out the window. Well after much searching here and reading and searching and reading somemore, I kept an eye on the mustang boards and scored a set of MAC longtubes for 100 bucks. A little cutting a little welding and here we go. I'll let the pics speak from here, but believe me when I say this, very very very simple to make these fit (once I figured out where the pipe had to go to that is).

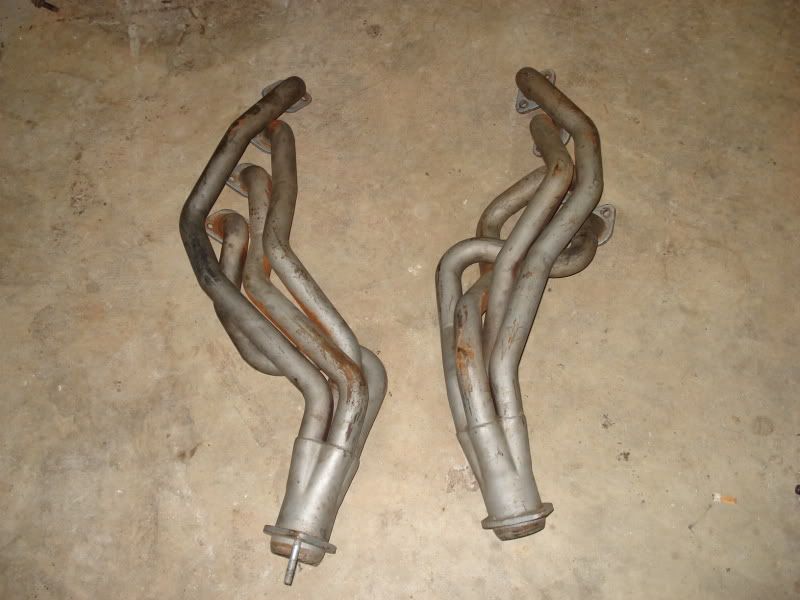

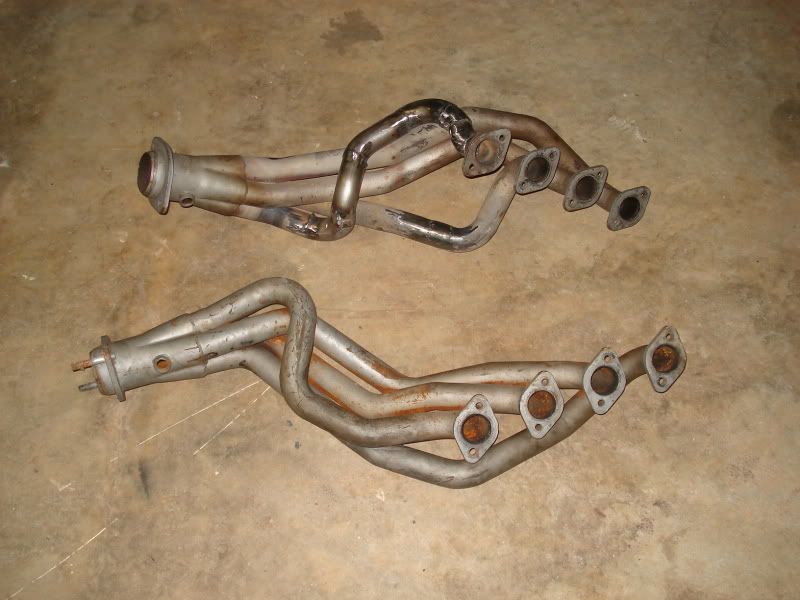

This is what they looked like when I got them

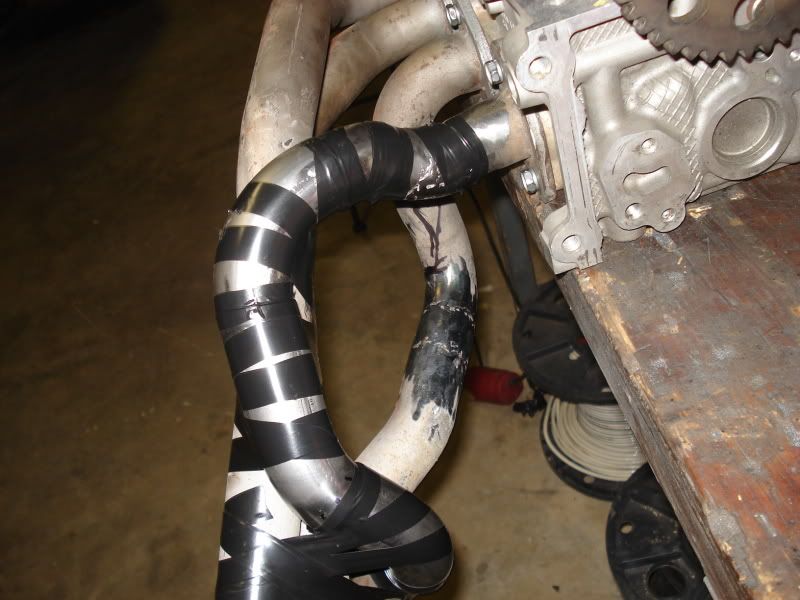

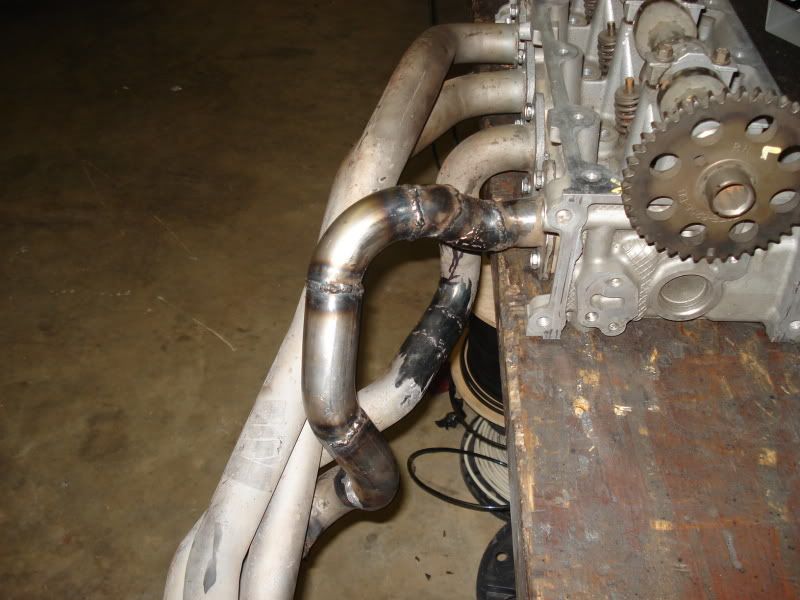

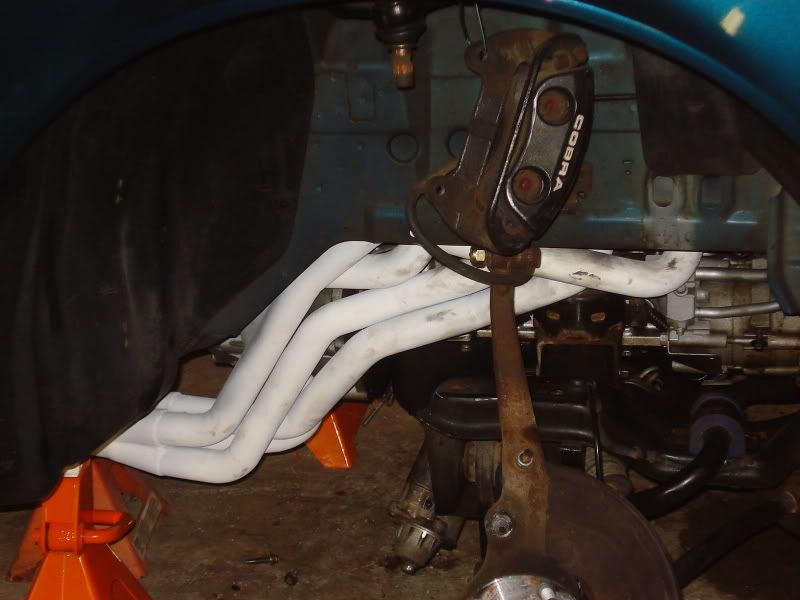

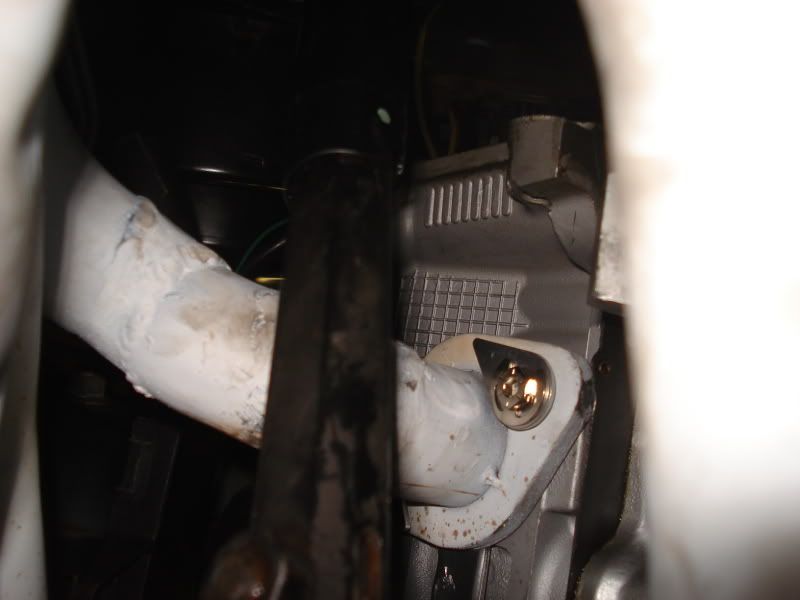

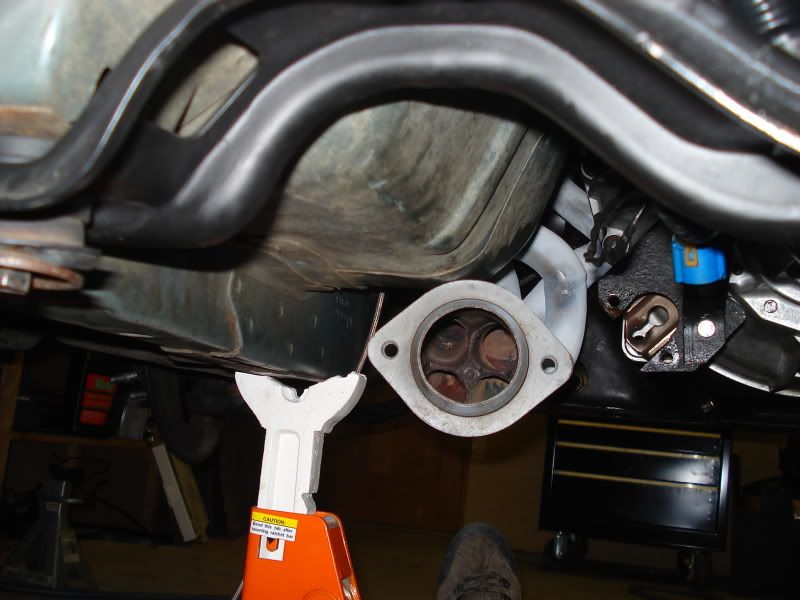

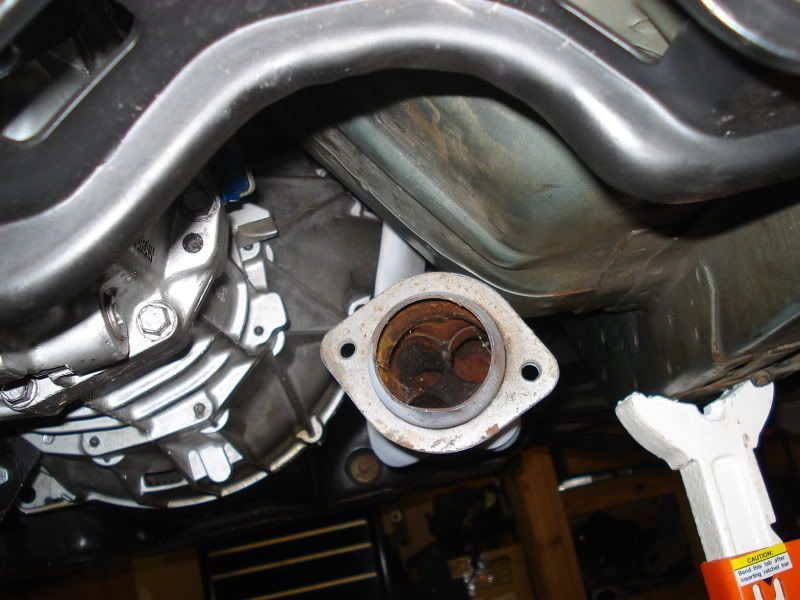

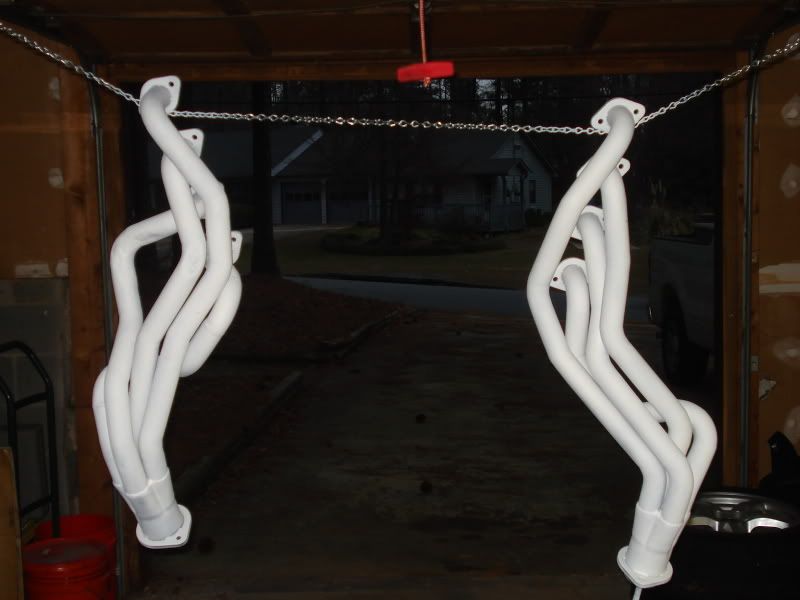

And after I made the neccesary mods for them to fit in the car

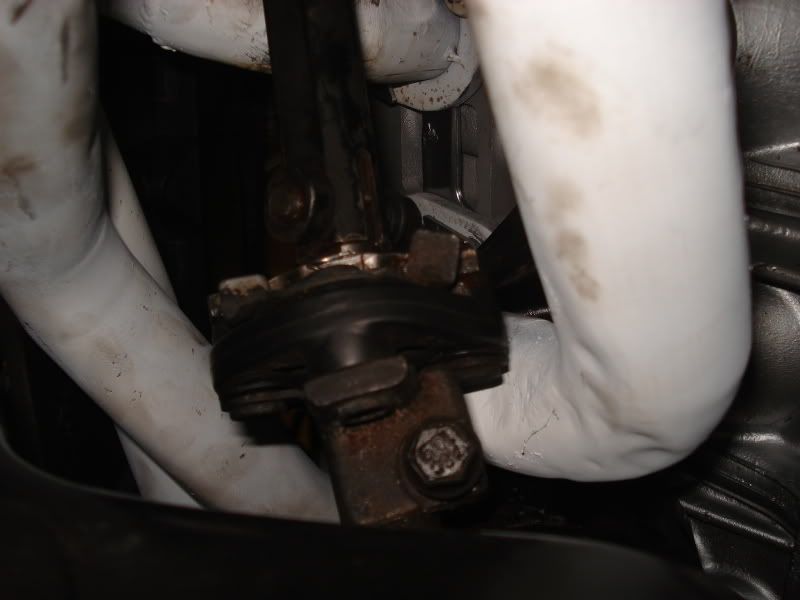

Note it was just 1 pipe was in the way and had to be re-routed for the steering shaft...I did not do the steering shaft mod nor did I modify the car in anyway passenger side needed no modification















That welding looks like crap, but you cant see any of it and it is functional. But still I won't leave it that way for the long, I plan to get the car running with these and the blower, work all those kinks out, and next winter, I'll probably pull them back off use a few less pieces of pipe and send them off for a more permanant coating. I have a grand total of $250 in these headers and thats including the cost of the headers, new Percy's dead soft gaskets, Stage 8 locking header bolts, 2 premade universal 1 5/8" u-bends and paying someone to do the welding cause mine looked even worse than that where I didn't manage to blow holes in the pipe, lol. I'll get a couple more of the u-bends and now I know what path I need to take, I can cut them properly and not have to scab together a bunch of stuff I cut and welded and then cut apart. I wasnt really sure what way I needed to move the pipe, so in figuring that out, I think I built and tore them apart 4 times, so when I finally figured it out, the pipe I had was pretty well cut up at that time. But for the time being they will work, they dont leak, and I have longtube headers on my car, hahahahahaha
SILVRBRD likes this.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
Sponsored Links
Advertisement

post #2 of 82 (permalink) Old 02-18-2011, 11:53 PM
Seasoned PostWhore

Earl's Avatar

Join Date: Jul 2002
Location: Katy TX
Age: 34
Posts: 6,100
INTERESTING....I was just thinking about headers since I am going to a nice new true dual exhaust here shortly....so those are just mac longtubes for a 96-04 mustang GT?
Earl is offline
post #3 of 82 (permalink) Old 02-18-2011, 11:59 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
Yep they only made one 2V set for 96-04 or so I believe anyways. I got a good deal on those because they were all kinked out of shape, apparently a MAC trait. But a few minutes with a pry bar getting them to line up again on my spare head and then a rosebud to seat them and that was all fixed.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline

post #4 of 82 (permalink) Old 02-19-2011, 12:02 AM
Seasoned PostWhore

Chris_Murder's Avatar

Join Date: Sep 2006
Location: Las Vegas, Nevada
Posts: 5,390
Send a message via AIM to Chris_Murder
Unfortunately auto trans fitment will always be a mystery.

-1996 Pearl White Thunderbird 4.6 Sport 4v with many mods:
Current Best: 13.583 @ 103.74 10/2014.
227hp/241tq measured on calibrated mustang dyno, tested at full vehicle simulation with inertia enabled, no number skewing.
-2001 White Ford F-250 Super Duty 6.8 V10, 4-door, 4x4, Limo Tint, BFG KO2's, Bilstein 7100 Remote Reservoir Race Bypass Shocks, 6" Spring lift, Kenwood Double Din, K&N Intake, FlowMaster Exhaust
Amber_Murder's Daily Driver.
-2005 White GMC Sierra 3500 6.6 Duramax, Dually, 4-door, 4x4, Limo Tint, BFG Commercial T/A's, Rancho RS9000XL Shocks, Kenwood Double Din, K&N Intake, Banks Monster Exhaust
Chris_Murder's Daily Driver.
Chris_Murder is offline
post #5 of 82 (permalink) Old 02-19-2011, 12:09 AM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
I dont know about that, there is an awful lot of clearance on either side of my trans. I cant think that the 4r70w is that much bigger. And besides, with these like I said I dont think there is an auto or manual option, at least not I could find in the MAC catalog at least.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #6 of 82 (permalink) Old 02-19-2011, 12:11 AM
Slightly Disjointed
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Age: 28
Posts: 15,315
Garage
Send a message via Yahoo to XR7-4.6
Nice work, you beat guitar maestro to the punch lol

-Matt
XR7-4.6 is offline
post #7 of 82 (permalink) Old 02-19-2011, 01:23 AM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Quote:
Originally Posted by XR7-4.6 View Post
Nice work, you beat guitar maestro to the punch lol
+1 Very nice work. Get that baby on the dyno and see what you've picked up! I hope this will reflect how I've been preaching on here the great benefits to be had from long-tubes and you will be closer to your 300rwhp goal.

~Rick
TCCoA Sig
NetKeym is offline
post #8 of 82 (permalink) Old 02-19-2011, 07:10 AM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 37
Posts: 11,922
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
Nice work indeed...I've had my two sets of mac's here but just havn't gotten around to getting them done....this thread deserves to be stuck

Last edited by guitar maestro; 02-19-2011 at 11:05 AM.
guitar maestro is offline
post #9 of 82 (permalink) Old 02-19-2011, 07:33 AM
Seasoned PostWhore

Join Date: May 2003
Location: Tinton Falls, NJ
Age: 34
Posts: 6,851
Garage
Send a message via AIM to MadMikeyL
Awesome! I think I'll keep an eye out for some cobra MAC longtubes, and see if I can make them work on the MarkVIII.

-91 Cougar LS, coming soon, complete overhaul with a 427" Windsor.
-90SC 5-speed, MP2, coated rotors, double intercooler, 15%OD, ported heads, comp stage 1 cam, 85mm TB, 90MM LMAF, 80# injectors, soon to be transplanted into...
-90 XR7 5-speed black on black w/sunroof
-98 Mark VIII LSC, Procharger P600b, TR3650 swap and 3.73s.
-70 Torino GT Fastback project car. Needs EFI and a manual trans, but I'm not sure what motor to go with yet.
-"Your buddy Mike is INSANE!" -ClintD's dad
MadMikeyL is offline
post #10 of 82 (permalink) Old 02-19-2011, 08:42 AM
PostWhore

cobra R Thunderbird's Avatar

Join Date: Dec 2009
Location: Thomasville GA
Age: 32
Posts: 1,486
Jim has been impressing me with his work for the past month.... :P lol great work man! I can't wait to see ur car again. Gunna be some major changes in both of our cars on our next meet up! Haha

1995 Tbird ~ 02 explorer SVO 4.6 Sold
1986 built/restored notch body mustang ~ appears as a 91+ built 5.0 gt40p, Ud pullies, ss headers, msd everything, arp head bolts, 1.7 crane roller rockers, B303 cam, Holley carb, high rise intake,5 speed, steeda everything. Sold
2001 GT BULLITT #00762 stock
2000 GT ~ 310 rwhp on mustang dyno. 08 2v, super low miles, comp 262 cams, bbk ud pullies, ported bullitt intake/accufab TB, 24# injectors, dyno tuned, 3inch pypes catless x pipe system, cobra brakes, coated cross & drilled rotors, Cobra r hood, 99-01 cobra front bumper, & 01-04 side scoops, dropped
2003 z71 avalanche fully loaded
cobra R Thunderbird is offline
post #11 of 82 (permalink) Old 02-19-2011, 09:28 AM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
Thanks guys it's been a long process, but it will be worth it in the end. I wont know what I gained with just the longtubes, but they should help me hit my power goal with the blower. I have spent alot, and I mean alot of time on just getting these to fit, but like I said, once I figured out where the tube needed to move to and what path to take, it's nothing, maybe 3-4 hours worth of work. I have clearance all around, but there still is some tight spots. Depending on how much the motor moves when I fire it up, will dictate whether or not they come back out for more clearancing. I'll keep you all updated as I go. I'll probably drop the k member back down this weekend to plumb the new boost and water temp gauges as well as fix some earlier work. Then I should be able to put it back up and lock it down permanant and get the blower on.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #12 of 82 (permalink) Old 02-19-2011, 10:41 AM
PostWhore

Join Date: Apr 2008
Posts: 1,716
Send a message via Yahoo to 94 Thunderbird XX
Definitely worth your investment of time and (little) money.
Two thumbs way up!

I realize not everyone has access to welders, etc. or that kind of know-how....but I LOL everytime I see someone wooting over their shorties.

Delete my account.
94 Thunderbird XX is offline
post #13 of 82 (permalink) Old 02-19-2011, 11:08 AM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 37
Posts: 11,922
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
Quote:
Originally Posted by XR7-4.6 View Post
Nice work, you beat guitar maestro to the punch lol
he beat KDanner too since he had once started it, but I don't see you raggin' on him though! such a h8er!
guitar maestro is offline
post #14 of 82 (permalink) Old 02-19-2011, 12:49 PM
PostWhore

Join Date: Apr 2008
Posts: 1,716
Send a message via Yahoo to 94 Thunderbird XX
Quote:
Originally Posted by CableguyJJS3 View Post
I'll probably pull them back off use a few less pieces of pipe and send them off for a more permanent coating........... But for the time being they will work, they dont leak, and I have longtube headers on my car, hahahahahaha
Is the car running? Wanna see/hear open header clips!

As for coatings, I'm thinking of sending my custom longtubes to Braincoating when I get them done this Spring. Should work for that app, right?

Delete my account.
94 Thunderbird XX is offline
post #15 of 82 (permalink) Old 02-19-2011, 01:28 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
Car isnt running yet, still have to install the blower. I'm really almost tempted to reassemble it N/A and fire it up just to see what it sounds like and how it performs, but I want the blower on worse lol. But yeah I figure next year after I can free up some more cash Ill take them off redo them and send them out for Braincoating. For now my $10 header paint will have to suffice. And for those with no access to a welder/welding skills, like I said still possible to do. A cut off wheel, sawzall and a bench grinder and you can get it good enought to be carried sowewhere for welding. This is how I did mine so I could have it welded.



As long as you keep your gaps pretty close and it stays in place they shouldn't have any trouble welding it up

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #16 of 82 (permalink) Old 02-19-2011, 01:40 PM
Slightly Disjointed
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Age: 28
Posts: 15,315
Garage
Send a message via Yahoo to XR7-4.6
Quote:
Originally Posted by guitar maestro View Post
he beat KDanner too since he had once started it, but I don't see you raggin' on him though! such a h8er!
He didn't say he'd be "working on them this weekend" every weekend for a year in a half

-Matt
XR7-4.6 is offline
post #17 of 82 (permalink) Old 02-19-2011, 03:28 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
Sometimes it felt like a year and a half though, lol. But another point for those wanting to do this... when I said I didn't do the steering shaft mod while that is true, looking into an aftermarket rag joint or something smaller around might not be a bad idea. I did a little"massaging" in the one tube that wraps around the rag joint to gain clearance. And even still it's a bit tight for my comfort. The Flaming River joint would give plenty of room, but my main concern is the rubber getting hot from the heat of the header and coming apart. Something to consider.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #18 of 82 (permalink) Old 02-21-2011, 03:37 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
Another point of interest for anyone looking to do this, Be sure you have a Mustang dip tube handy. I had one from when I did my motor build last year, it comes in the head bolt/head gasket swap kit. I tried to get the T-Bird one to fit, didnt seem to want to go in, but the Mustang one dropped right in. Now this could be due to the fact the engine is still bolted to the K-member and the motor mounts, but I'm thinking it has more to do with tube placement. Either way, perhpas if you assemble it with the dip tube then the mounts then the headers it might work I dont know. All I know is I couldn't get mine to work, but the mustang one dropped right into place. Something to keep in mind.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #19 of 82 (permalink) Old 02-21-2011, 04:08 PM
Seasoned PostWhore

VicRattlehead's Avatar

Join Date: Jul 2002
Location: RT66 Raceway Channahon IL
Posts: 6,212
Quote:
Originally Posted by guitar maestro View Post
Nice work indeed...I've had my two sets of mac's here but just havn't gotten around to getting them done....this thread deserves to be stuck
umm. yea when you gonna get around to doing them?

CMP Drag Racing
best ET: 12.410 -- best MPH: 107.61
NMRA MM7270 -- NMCA EFI/? ????
Thank you to the CMP Drag Racing team: Tony, Doug, Maryann, Dale, Paul and Chris.

VicRattlehead is offline
post #20 of 82 (permalink) Old 02-21-2011, 04:10 PM
Slightly Disjointed
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Age: 28
Posts: 15,315
Garage
Send a message via Yahoo to XR7-4.6
This weekend lol

-Matt
XR7-4.6 is offline
post #21 of 82 (permalink) Old 02-21-2011, 04:36 PM
Seasoned PostWhore

Earl's Avatar

Join Date: Jul 2002
Location: Katy TX
Age: 34
Posts: 6,100
Quote:
Originally Posted by CableguyJJS3 View Post
Another point of interest for anyone looking to do this, Be sure you have a Mustang dip tube handy. I had one from when I did my motor build last year, it comes in the head bolt/head gasket swap kit. I tried to get the T-Bird one to fit, didnt seem to want to go in, but the Mustang one dropped right in. Now this could be due to the fact the engine is still bolted to the K-member and the motor mounts, but I'm thinking it has more to do with tube placement. Either way, perhpas if you assemble it with the dip tube then the mounts then the headers it might work I dont know. All I know is I couldn't get mine to work, but the mustang one dropped right into place. Something to keep in mind.
engine oil or transmission tube? which one? I am assuming engine, but please clarify
Earl is offline
post #22 of 82 (permalink) Old 02-21-2011, 06:00 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
Engine oil dip tube, sorry for the confusion. I didn't even think of the trans dip tube as with the 5-speed in my car, I dont have one anymore, lol. But like I said before, I can't find an auto or manual option for these headers so I'm guessing they only have one set, and with that I don't see the trans tube being an issue, but it might not be a bad idea to have one of those handy as well.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #23 of 82 (permalink) Old 02-22-2011, 10:20 AM
smoothed and filled red pearl 94

94MN1246's Avatar

Join Date: May 2006
Location: Sterling, VA
Age: 32
Posts: 631
Send a message via AIM to 94MN1246
hey GM want to sell a set?

-John

MAMN-12 Fringe Member
94MN1246 is offline
post #24 of 82 (permalink) Old 02-22-2011, 08:21 PM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Quote:
Originally Posted by 94MN1246 View Post
hey GM want to sell a set?

-John
I believe GM hasn't finished his first modifed set yet. Unless you plan on buying a set of his and having them "modified".

Note to CableguyJJS3: What would you charge for a second modified set (should go pretty quickly since you've already built one)? Make some jigs!

~Rick
TCCoA Sig
NetKeym is offline
post #25 of 82 (permalink) Old 02-22-2011, 08:37 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
I have thought about doing just that. However my welding skills leave alot to be desired. That said, the guy that did my welding charged me $50. If someone wanted to send me a drivers side header I'd be happy to modify a set and send them over to him and have him weld. Or I can cut the tubes up fit them and send them back tacked for your welding pleasure. I had $30 in the u-bends I bought to have enough pipe so at least that is needed. I'm not going to throw out numbers, I'll just say I'm really really really cheap. If someone is dead serious about doing it, shoot me a message, I'll be happy to talk about it, and I'm more than happy to help out a fellow member.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #26 of 82 (permalink) Old 02-22-2011, 08:45 PM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Excellent! I've been waiting for a man like you! lol

Seriously, ok step 1 ... find a set of Mustang long-tubes. Do you have a model number of the set you started with? Were they for a '98-'04 GT?

~Rick
TCCoA Sig
NetKeym is offline
post #27 of 82 (permalink) Old 02-22-2011, 09:11 PM
PostWhore
The AFDB is on a lil tight.

Splattered's Avatar

Join Date: Mar 2007
Location: is hot
Posts: 3,868
I think MAC is poor quality is there a better quality header that is similar?

Spinning pies like wheels.

DD driving my 20 year old project

Now with new ball joints...again
Splattered is offline
post #28 of 82 (permalink) Old 02-22-2011, 09:37 PM
Slightly Disjointed
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Age: 28
Posts: 15,315
Garage
Send a message via Yahoo to XR7-4.6
Pypes are supposed to be dimensionally identical to MAC only they are made of stainless steel.

-Matt
XR7-4.6 is offline
post #29 of 82 (permalink) Old 02-22-2011, 10:13 PM Thread Starter
PostWhore

CableguyJJS3's Avatar

Join Date: Nov 2002
Location: Atlanta,GA
Age: 40
Posts: 1,194
Send a message via AIM to CableguyJJS3 Send a message via Yahoo to CableguyJJS3
On a whim I was looking on ebay the other day at mustang headers and your right Pypes look identical to the MAC headers. Now if they fit or not I cant say I didnt have a set of them to work with. When I put my motor in last year I had a set of JBA shortys and a set of the SSA Auto chrome ones, they looked identical as well, but the SSA's didn't fit. I wouldn't feel comfortable trying a set of headers that weren't dimesionally the same as the MAC headers for the simple fact I dont know where the tubes would land in relation to the enigine and the K-member, therefore I wouldn't know how to modify them. I make my offer to modify the headers for anyone serious about having it done, but obviously I can't promise they will fit. I don't have a parts car around for mock up, nor am I inclined to take mine apart everytime, lol. But I am about 99% confident that if I was to do another set that I could do them and they would fit without any major issues. And yes the ones I used were 96-04 GT 2v longtubes. I bought them used so there was no box and they didnt have any markings on them at all, so I have no idea what the model number is. But like I said earlier, when I bought them I searched the net and the MAC catalog and only found the one set for that application, so you should be safe with any set you find. if your interested, let me know, I'm happy to help, this is fun for me, lol.

Ban low performance driver's, not high performance cars.

"Any idiot can make a Mustang fast, but it takes a special kind of idiot to make a Thunderbird fast."
CableguyJJS3 is offline
post #30 of 82 (permalink) Old 02-22-2011, 10:19 PM
Slightly Disjointed
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Age: 28
Posts: 15,315
Garage
Send a message via Yahoo to XR7-4.6
I'm not too worried about the K member as the SN95 has relatively similar clearance, I'm more worried about floor/firewall clearance with other headers. If they didn't sit low enough I'd have to hammer on the floor

-Matt
XR7-4.6 is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
