In the middle of installing dss level 5 axles

Okay guys I've got this and test fitting with the car on the ground the inner tripod about a 1/4 of it hangs out the inner [yolk] yuck, from reading EECDOC ran his the way I have it set up, but I'm not sure I'm comfortable with it a half inch longer shaft would be nice any thoughts guys?

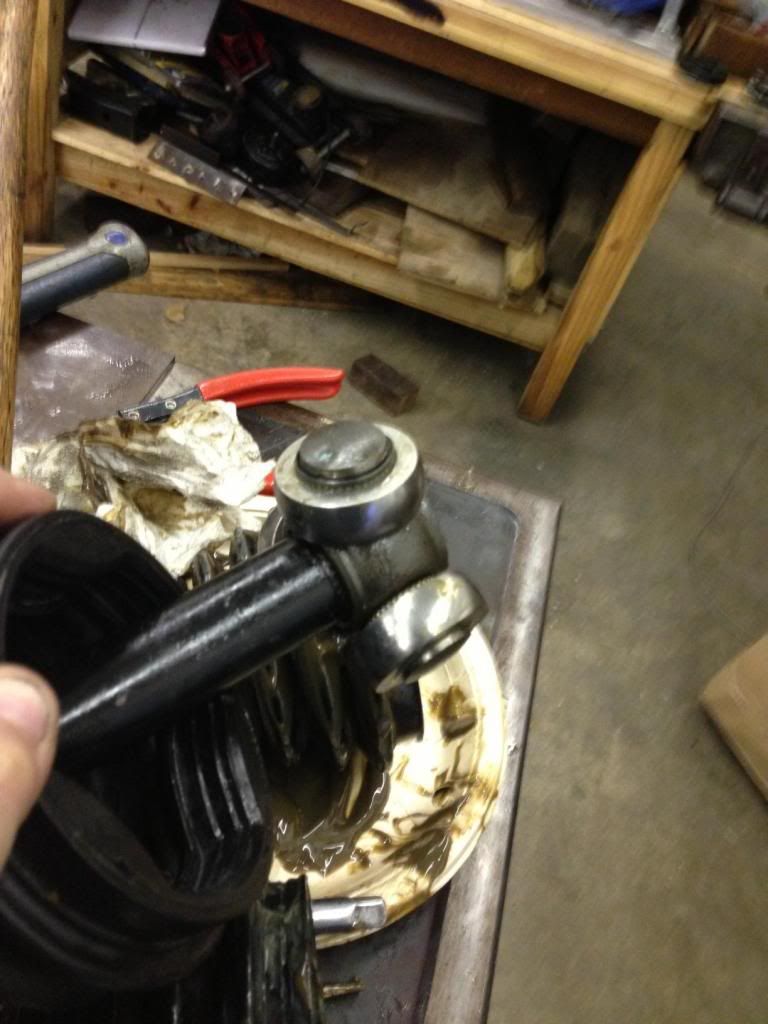

DSS with stock Tripod



DSS Tripod slid out over clip

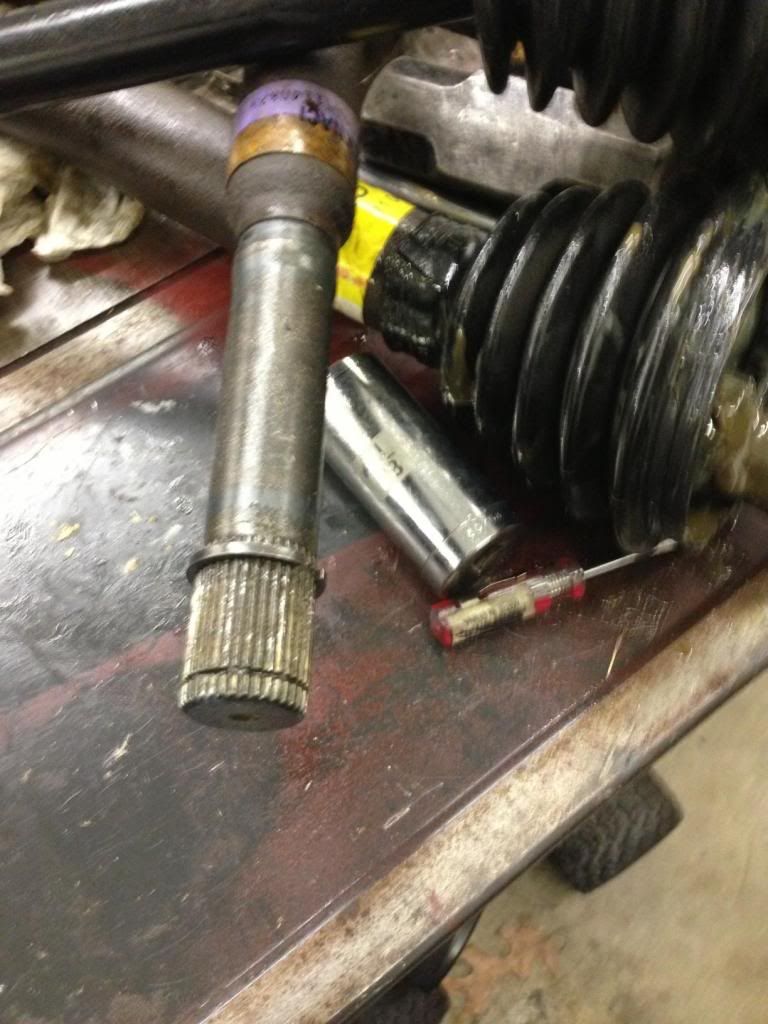

Stock with inner clip - DSS only has place for outer clip



DSS 33 Spline Outer

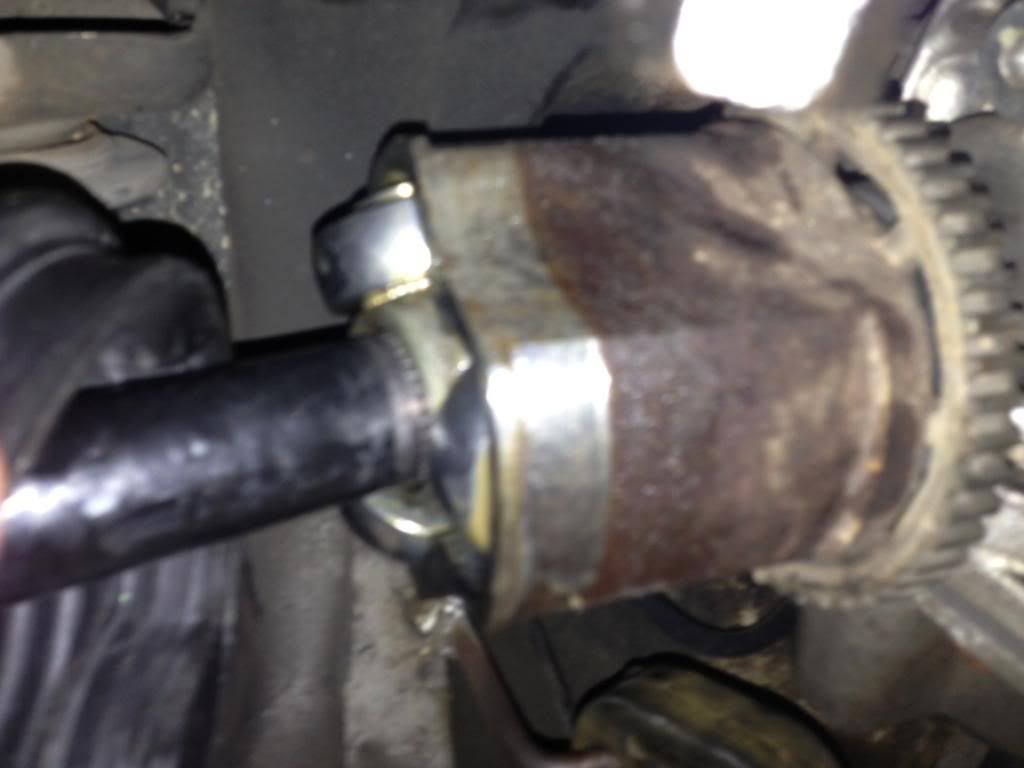

This is it installed; you can see how much hangs out this with wheel hanging

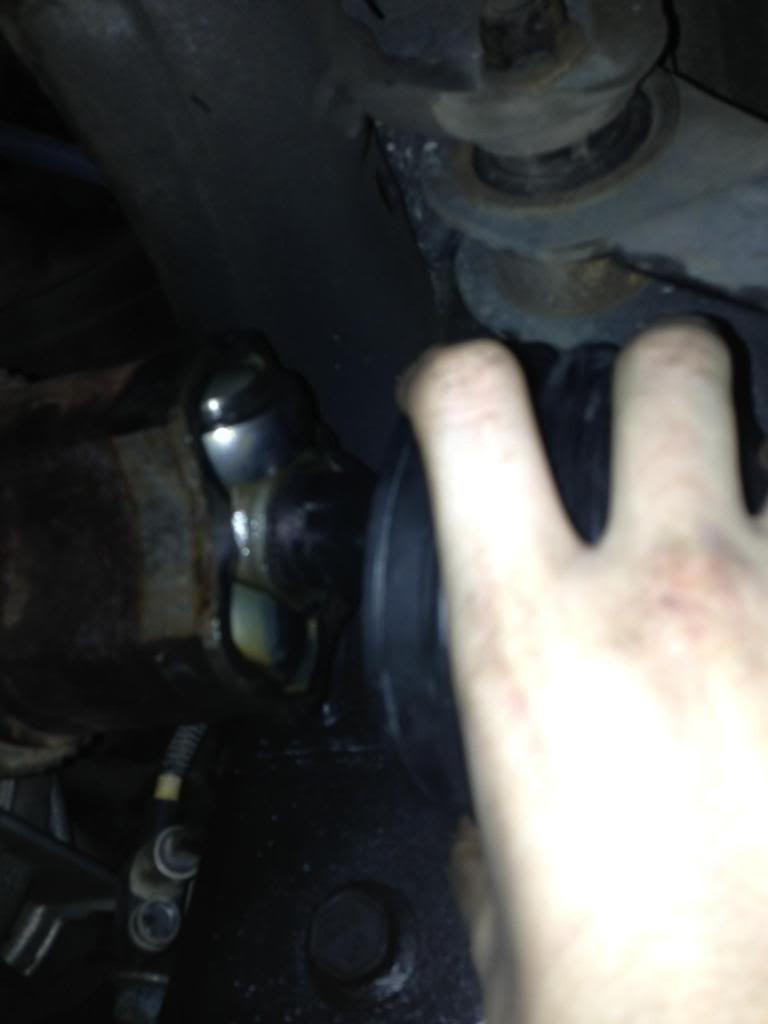

Another shot the upper goes in with wheel on ground
