Window Regulator Bushing Replacement/Mod

If you can hear your window motor turning but the window does not move, then you probably need to replace your regulator bushings.

This is my take on using steel rather than plastic for these bushings. The process is the same for any of the options below with the modifications described. I have not had any issues with this, but I am not liable if you damage/destroy yourself or your stuff.

You will need:
  • OEM Option: Dorman p/n# 74410 (1 pk per door)
  • Nylon Option: Hillman p/n# 880435 (1/2"x.194"x1/2" nylon spacer) - (3 pc per door)
  • Steel Option: Hillman p/n# 880418 (3/8"x1/2"x1-1/2" steel spacer) - (1 pc per door)
  • Grinder/Dremel/hack saw (to cut the steel spacer)
  • Sharp knife/razor blade (to trim the nylon spacer)
  • Small flat screwdriver (to remove c-clip)
  • Grease (I used marine wheel bearing grease.)
  • Channel-lock
  • Patience


This is what bad bushings look like:

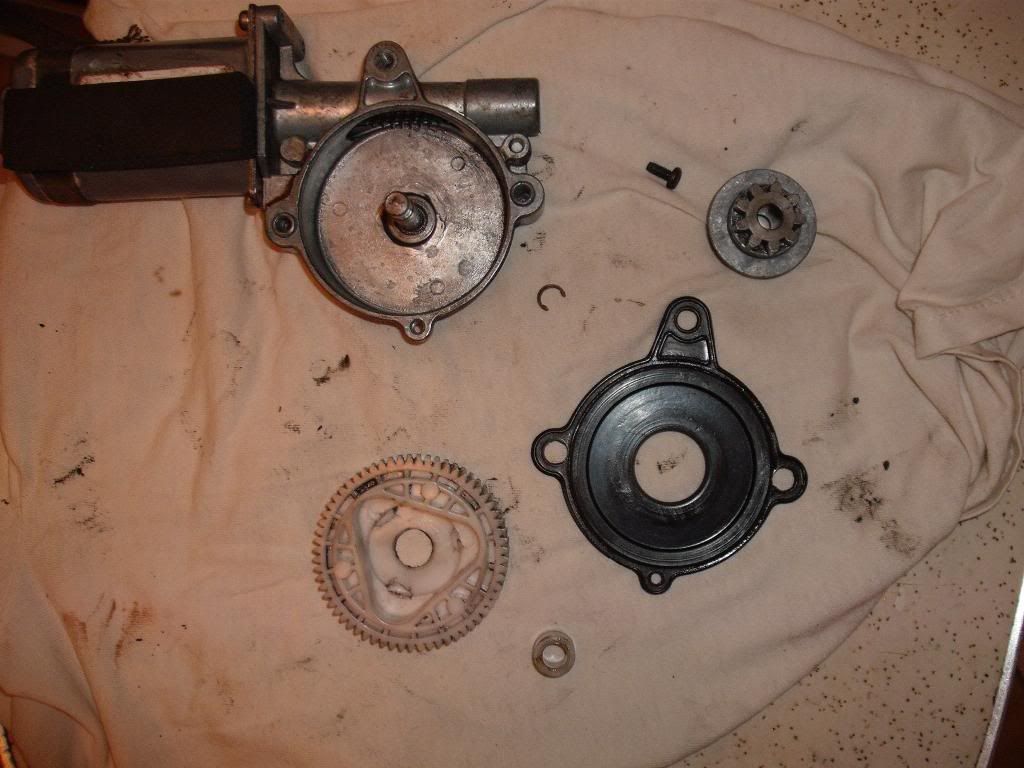

You will need to remove the small c-clip on the top of the steel gear. Then pull straight up and remove the steel gear from the plastic gear. Remove the plastic gear from the housing.

Use your patience to remove all of the small bits of plastic and old grease. The plastic pieces can get stuck in the worm-gear so try to get it all out. I decided to pull the motor housing off to get at it better. I recommend you do NOT do that, because it is a HUGE pain to get back together correctly.


You will then need to cut the steel spacer into 3 roughly equal pieces about 1/2" long. I suppose you could just use 3/8"x1/2"x1/2" spacers if you can find them. I didn't explore that.

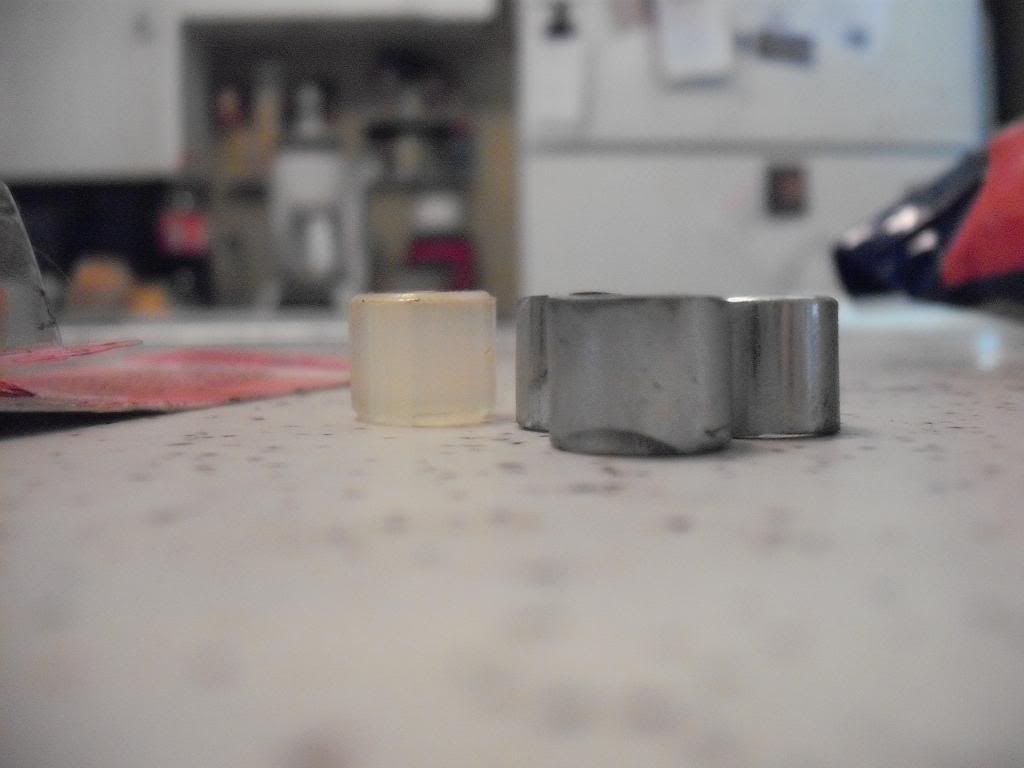

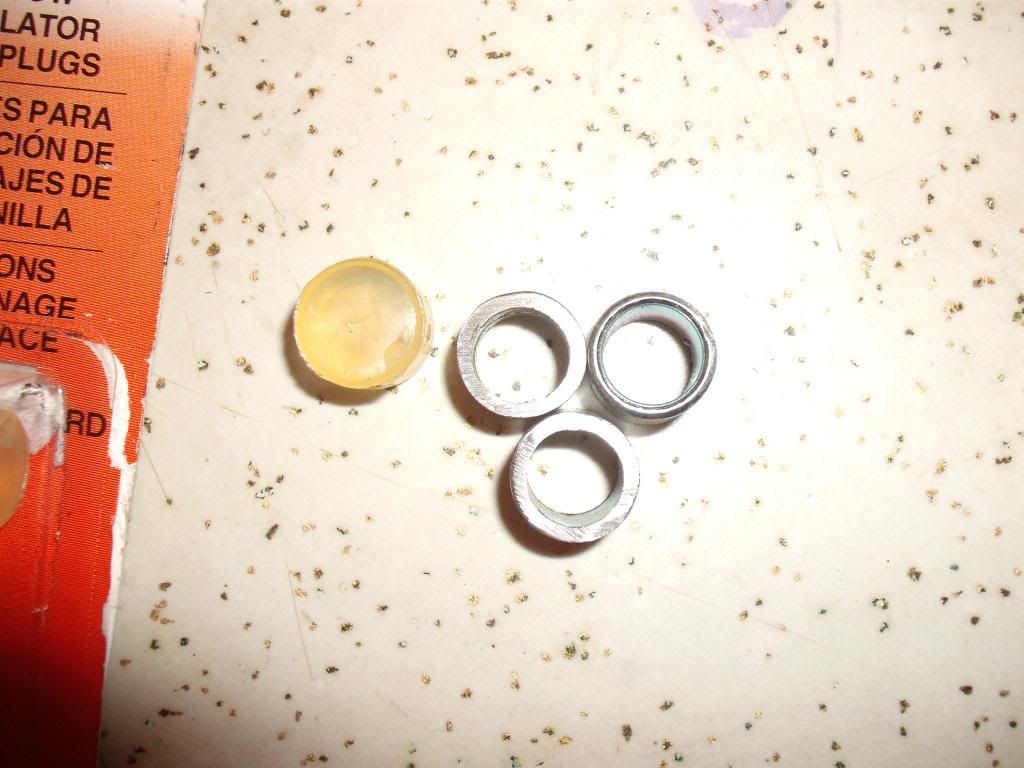

New plastic bushing versus new steel bushing (for comparison).

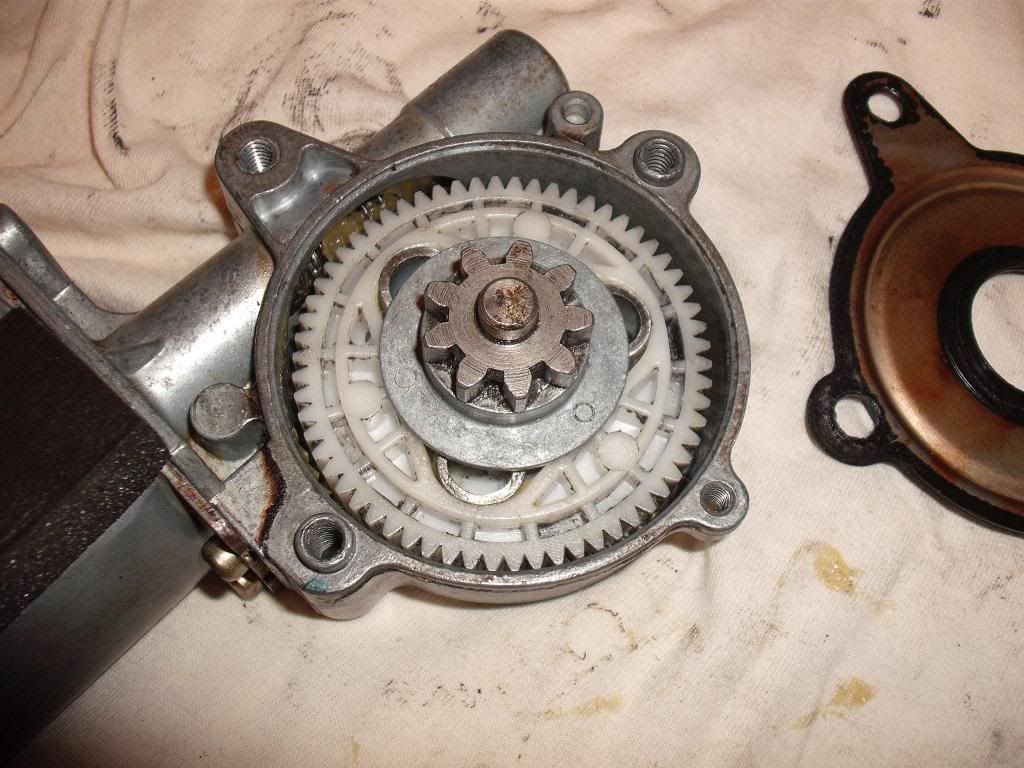

Now take your 3 steel bushings and set them in place in the white plastic gear. Then take the steel gear and set it in position in between the bushings. Mine was kinda tight, so I used the channel-locks to work it down until it was fully seated. If you do this, be careful to work it around evenly as to not break the white plastic gear. Take the assembled gears and apply a light coat of grease to the back side of the white gear, front side of the steel gear, and the teeth on both. Now drop them into the housing, making sure the teeth mate with the worm-gear correctly.


Re-install the c-clip on top of the steel gear. Re-install the gear cover and screws. Re-install the regulator into the door and enjoy not having to fix it again next year!

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W

Last edited by jco1385; 08-05-2015 at 08:00 AM.
jco1385 is offline
Sponsored Links
Advertisement

post #2 of 31 (permalink) Old 06-18-2013, 02:18 PM
Newbie

greddy2race's Avatar

Join Date: May 2013
Location: Ohio
Posts: 21
Awesome write up, looks a simple yet very useful mod.

Also you can get the spacers from Lowes for about 1.48 per 40 pieces

Last edited by Rodeo Joe; 06-19-2013 at 06:35 PM. Reason: Merged posts
greddy2race is offline
post #3 of 31 (permalink) Old 06-18-2013, 02:28 PM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
Quote:
Originally Posted by greddy2race View Post
Also you can get the spacers from Lowes for about 1.48 per 40 pieces
I just went with the new plastic bushing and found something to make work

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline

post #4 of 31 (permalink) Old 06-18-2013, 04:22 PM
3rd Gear Poster

richuncle's Avatar

Join Date: Apr 2005
Location: Atlanta
Age: 32
Posts: 186
Good tutorial. I made the mistake of taking the motor housing off as well when I was cleaning out the plastic pieces. I wouldn't recommend taking it off unless someone knows of an easy way to put it back.

I used a piece of paper I folded into a half circle to hold the springs down as I inserted the shaft back in, and then it took a couple tries to get the housing back on without moving the shaft out. Wasn't worth it for the few pieces of plastic I got out.
richuncle is offline
post #5 of 31 (permalink) Old 06-18-2013, 05:58 PM
PostWhore

jhiland32's Avatar

Join Date: Apr 2012
Location: Nashville, TN
Age: 41
Posts: 1,181
Good to know this happened to me Saturday night. I haven't looked at it yet. Thanks for the write up.

Jason H.
Mods:
Exterior- Paint, grill, trim, SHO wheels
Power train- 4.6 cat back w/ muffler delete 2"I.D. tips , Taylor Pro Series plug wires, intake silencer delete

Photographs http://s1175.photobucket.com/user/jh...?sort=4&page=1
jhiland32 is offline
post #6 of 31 (permalink) Old 06-19-2013, 04:20 PM
Newbie

Join Date: Jun 2010
Location: Portland, OR
Posts: 2
Nice write up! Thanks! My PS window is getting cranky, maybe I will tear into it...

Regards,
Mark
SculptorMac is offline
post #7 of 31 (permalink) Old 06-20-2013, 08:19 PM
PostWhore

jhiland32's Avatar

Join Date: Apr 2012
Location: Nashville, TN
Age: 41
Posts: 1,181
Did this today to fix my Pass.side. It worked great good write up.

Jason H.
Mods:
Exterior- Paint, grill, trim, SHO wheels
Power train- 4.6 cat back w/ muffler delete 2"I.D. tips , Taylor Pro Series plug wires, intake silencer delete

Photographs http://s1175.photobucket.com/user/jh...?sort=4&page=1
jhiland32 is offline
post #8 of 31 (permalink) Old 12-22-2013, 08:28 PM
2nd Gear Poster

Join Date: Jan 2013
Location: pennsylvania
Posts: 68
almost looks like a pilot bushing will work for this any body try this?
transtech520 is offline
post #9 of 31 (permalink) Old 12-23-2013, 08:33 AM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
Basically anything roughly 7/16" x 1/2" round will work.

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W

Last edited by jco1385; 08-05-2015 at 07:52 AM.
jco1385 is offline
post #10 of 31 (permalink) Old 12-23-2013, 10:42 PM
2nd Gear Poster

Join Date: Jul 2002
Location: Texas
Posts: 95
Thanks for this. I just bought a 1996 T-Bird that's going to need this done to both sides. What is it with Ford and their crappy window regulators? My previous car was a 2004 Grand Marquis (Killed in action by Bambi) that I had to have both front window regulators replaced.

I'll probably fix mine over the New Year's holiday.
rea98d is offline
post #11 of 31 (permalink) Old 11-04-2014, 05:55 PM
2nd Gear Poster

Join Date: Oct 2014
Location: Eastern NC
Age: 22
Posts: 69
I need to try this. Seeing how i will never own another car besides a mn12 i see the 40 pieces for 1.48 being a good investment. My passenger windoe you can hear the motor just slipping. The drivers rolls up smooth till it gets about 1" inch from shutting thrm it binds and after a few seconds it slips up by itself or by holding thr button.

I know i need new bushings on the pass side.

What do u guys think is happening with the drivers side.?
94Thunder is offline
post #12 of 31 (permalink) Old 11-04-2014, 06:51 PM
Kind of slapped together

Join Date: Jan 2010
Location: Bossier City, LA
Age: 61
Posts: 4,418
94Thunder - on my car, the window windlace (?) that it slides into is slightly bowed. I can straighten it out and the window works perfectly for a few months, then ... time to grab the screwdriver and widen it out again when it starts to bind.

IOW - Check EVERYTHING in the path to find where it's rubbing.

Don't forget to lubricate the guide rails for the scissors action.

RwP

Fuelly
RalphP is offline
post #13 of 31 (permalink) Old 11-04-2014, 09:43 PM
PostWhore

CrystalPistol's Avatar

Join Date: Aug 2003
Location: Shenandoah Valley
Age: 63
Posts: 1,027
I've replaced the biscuits before, did it on my '85 Bird back in the '90s and most recently my '92 Bird that is 22 years old and still oem on pass side. Motors are smooth, windows fast. I think Ford used same motors since the mid '60s anyway.

I think they are a decent enough design, they have a designed in weak link.

A fine pair ... ... and whatever you do, Have a Safe Trip!
CrystalPistol is offline
post #14 of 31 (permalink) Old 11-04-2014, 11:59 PM
1st Gear Poster

BLKBRD88's Avatar

Join Date: Oct 2014
Location: Humboldt Az
Age: 74
Posts: 30
Terrific pics & directions for installing either steel or plastic bushings.
A big thanks to jco1385 for sharing this info with those of us who lack experience repairing these regulators.

The driver's window on our 95LX. is a definite candidate for this fix & I plan to refer to these directions when I begin the task.
Ron

Last edited by BLKBRD88; 11-07-2014 at 07:56 PM. Reason: spelling error
BLKBRD88 is offline
post #15 of 31 (permalink) Old 11-05-2014, 09:19 AM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
Mine gets stuck sometimes due to old crappy tint residue that gets warm and sticky. While the door panel is off, you can grease the moving parts. After you fix the motor run the window up and down with the panel off to see if you can tell what the issue is.

I edited the first post to provide the OEM style part number.

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #16 of 31 (permalink) Old 11-06-2014, 10:33 PM
2nd Gear Poster

Join Date: Oct 2014
Location: Eastern NC
Age: 22
Posts: 69
Quote:
Originally Posted by RalphP View Post
94Thunder - on my car, the window windlace (?) that it slides into is slightly bowed. I can straighten it out and the window works perfectly for a few months, then ... time to grab the screwdriver and widen it out again when it starts to bind.

IOW - Check EVERYTHING in the path to find where it's rubbing.

Don't forget to lubricate the guide rails for the scissors action.

RwP
Well thats good advice, i doubt the door has bent or even tooken apsrt before i did it..

However i do believe i dnt have enough lu rication on the scissors action. I sprayed a lil wd40 on it and it seemed to help s tad. Bit. My thing is the doors window track has never been replaced and its rivoted in.. Ehich is gonna be a pita to just get a new one and install it.
94Thunder is offline
post #17 of 31 (permalink) Old 11-06-2014, 11:37 PM
Kind of slapped together

Join Date: Jan 2010
Location: Bossier City, LA
Age: 61
Posts: 4,418
Quote:
Originally Posted by 94Thunder View Post
Well thats good advice, i doubt the door has bent or even tooken apsrt before i did it..

However i do believe i dnt have enough lu rication on the scissors action. I sprayed a lil wd40 on it and it seemed to help s tad. Bit. My thing is the doors window track has never been replaced and its rivoted in.. Ehich is gonna be a pita to just get a new one and install it.
WD40 will remove the lubricant, not lubricate the movement.

Don't need to replace it, just lubricate it with the proper lubricant (I used a PTFE-based spray lubricant on mine.)

RwP

Fuelly
RalphP is offline
post #18 of 31 (permalink) Old 11-07-2014, 07:05 PM
5th Gear Poster

Urambo Tauro's Avatar

Join Date: Nov 2010
Location: SE Michigan
Posts: 395
I thought the bushings were made out of plastic for two reasons: One, in the event of a child's neck in the way, these bushings would fail first, and prevent decapitation. The other reason is that the bushings would be the first item to wear out from normal use, so the other parts would last longer.

This mod makes the plastic gear the "weakest link". How long do the plastic bushings typically last? If they wore out every 5-10 years, I might be inclined to go with steel. But if the plastic is good for 20 years... I'd go OEM.

1996 Thunderbird LX (4.6), daily driver
1995 Mustang GT (5.0), alternate daily driver
Urambo Tauro is offline
post #19 of 31 (permalink) Old 11-07-2014, 08:14 PM
Veteran Poster

1995 cougar xr7's Avatar

Join Date: Dec 2007
Location: Naples, FL.
Age: 42
Posts: 842
Quote:
Originally Posted by Urambo Tauro View Post
I thought the bushings were made out of plastic for two reasons: One, in the event of a child's neck in the way, these bushings would fail first, and prevent decapitation. The other reason is that the bushings would be the first item to wear out from normal use, so the other parts would last longer.

This mod makes the plastic gear the "weakest link". How long do the plastic bushings typically last? If they wore out every 5-10 years, I might be inclined to go with steel. But if the plastic is good for 20 years... I'd go OEM.
I thought the plastic bushings gave the window a little cushion when it went to the top, and solid bushings would break the window when it went up to the top
1995 cougar xr7 is offline
post #20 of 31 (permalink) Old 12-01-2014, 01:20 PM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
Quote:
Originally Posted by Urambo Tauro View Post
I thought the bushings were made out of plastic for two reasons: One, in the event of a child's neck in the way, these bushings would fail first, and prevent decapitation. The other reason is that the bushings would be the first item to wear out from normal use, so the other parts would last longer.

This mod makes the plastic gear the "weakest link". How long do the plastic bushings typically last? If they wore out every 5-10 years, I might be inclined to go with steel. But if the plastic is good for 20 years... I'd go OEM.
The reason that I did this with steel is because it was my 2nd time going in there to replace the plastic pieces. The first set lasted about 2 or 3 years before they gave up. I don't think the motor is strong enough to decap a child.

Quote:
Originally Posted by 1995 cougar xr7 View Post
I thought the plastic bushings gave the window a little cushion when it went to the top, and solid bushings would break the window when it went up to the top
I have also not broken any windows with this mod.

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #21 of 31 (permalink) Old 12-01-2014, 06:11 PM
Custom User Title

Join Date: Dec 2006
Location: Nor-Cal
Age: 36
Posts: 3,836
Garage
Quote:
Originally Posted by jco1385 View Post
The reason that I did this with steel is because it was my 2nd time going in there to replace the plastic pieces. The first set lasted about 2 or 3 years before they gave up. I don't think the motor is strong enough to decap a child.



I have also not broken any windows with this mod.
I still havent had a set of 94+ window motors go bad because of the bushings. Never had to tear them apart to see what the difference is.

As for the decap .. stick your hand or any other sensitive body part in the track and roll the window up. Its a lot stronger than it seems.
dDUBb is offline
post #22 of 31 (permalink) Old 02-15-2015, 04:16 PM
1st Gear Poster

BLKBRD88's Avatar

Join Date: Oct 2014
Location: Humboldt Az
Age: 74
Posts: 30
Ok, time to revive this thread again.
A big thanks to "jco1385" for the directions on doing this rebuild.
I went with the nylon bushings, but followed the directions and the window is working just fine.
Ron
BLKBRD88 is offline
post #23 of 31 (permalink) Old 02-19-2015, 01:52 PM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage

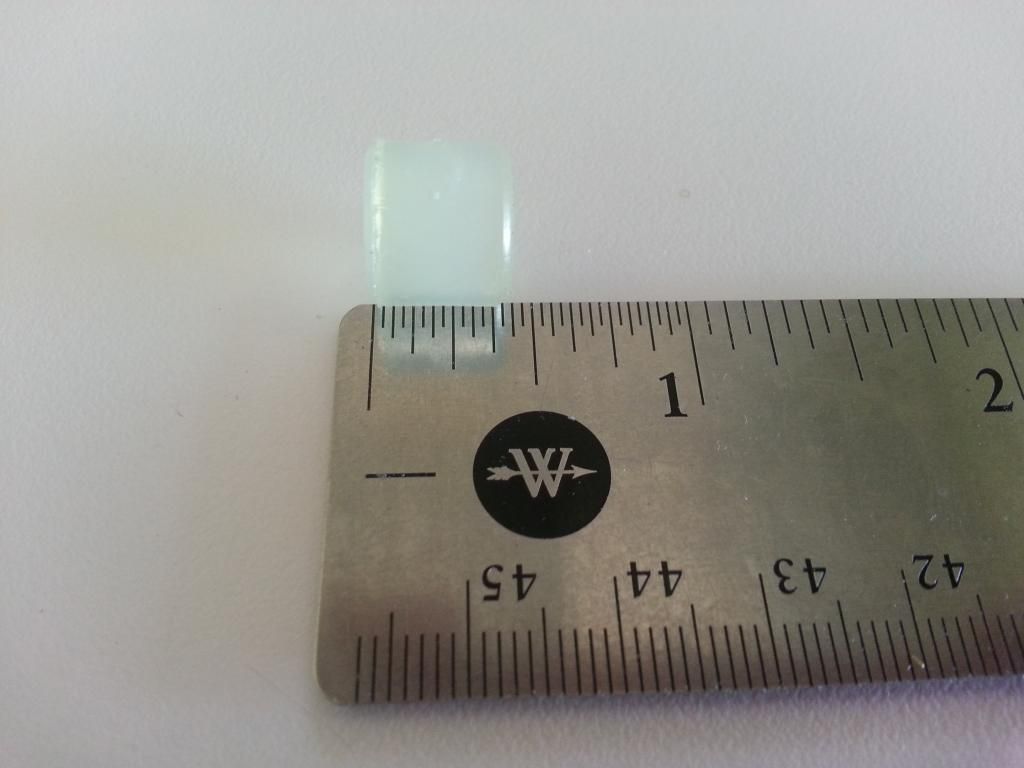

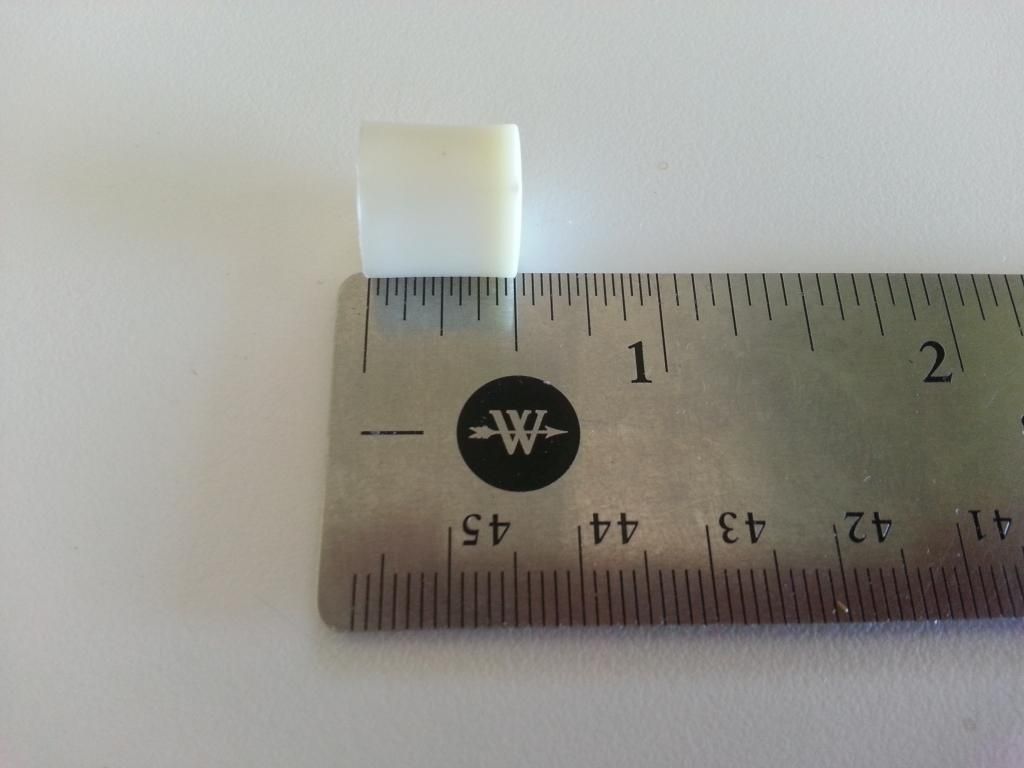

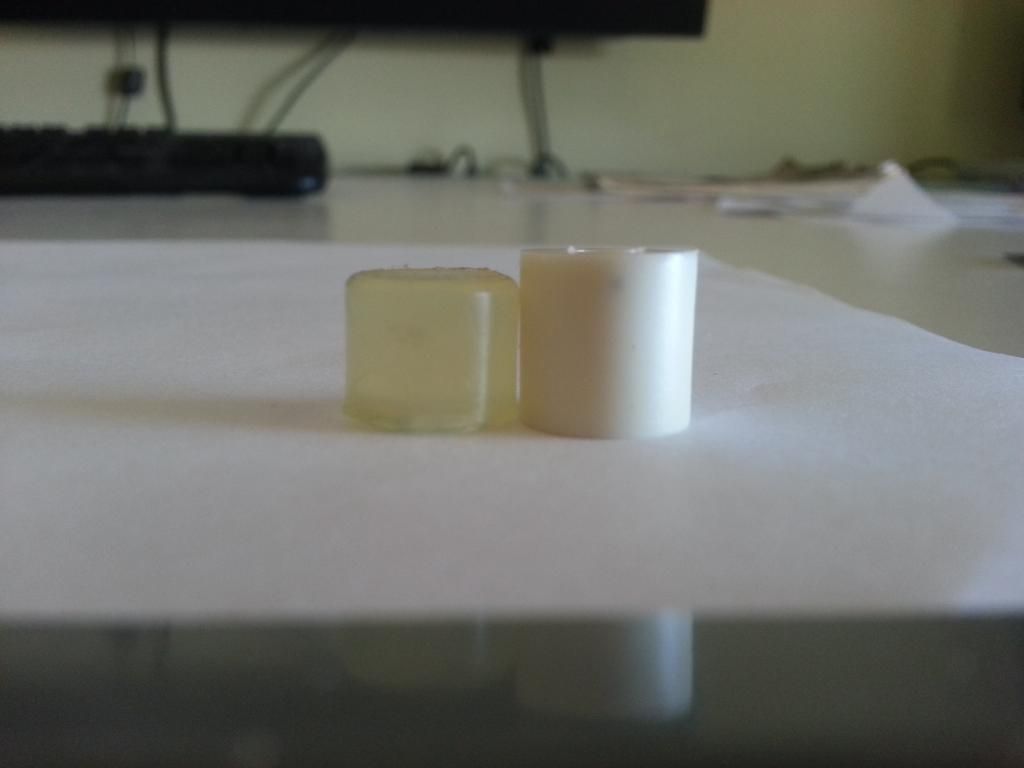

I have another alternative that I am going to try. I found these nylon spacers for $0.99 at Lowe's. They are about 1/16" taller than the Dorman pieces.



Dorman


Hillman:



1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #24 of 31 (permalink) Old 02-19-2015, 06:41 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 54
Posts: 8,185
If it's too long, chuck it up in a cordless, and use a razor knife to trim it.

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.

I'm not Human enough to be human; but I'm trying to fit in, and I'm learning to fake it.

"Never said Hibbity..." - Brian Williams
Grog6 is offline
post #25 of 31 (permalink) Old 03-02-2015, 11:36 AM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
The nylon pieces from Lowe's do work, but you have to trim the excess off or the c-clip won't go back on top of the metal gear. But for $3 to do both doors I'd say it's worth the effort, since the Dorman pieces are about $8 for one side (3 pc). Just use a sharp razor knife to trim them.

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #26 of 31 (permalink) Old 05-10-2015, 05:40 PM
2nd Gear Poster

Join Date: Jan 2013
Location: pennsylvania
Posts: 68
just did this mod using the metal ones works great but now I need to do the other door
transtech520 is offline
post #27 of 31 (permalink) Old 08-05-2015, 07:55 AM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
I edited the first post to put all of the part numbers in one place for the different options I've tried. I also edited the title so it may be easier to find in a search. Sticky??

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #28 of 31 (permalink) Old 08-08-2015, 01:18 PM
̇

Rayo's Avatar

Join Date: Nov 2008
Location: Ohio
Posts: 3,610
Garage
Thanks for posting the information JCO..


I chose to go with the Dorman bushings in lieu of the steel bushings..

The window motors are so easy to remove, and rebuild..I didn't find it necessary to use the steel bushings..

Somewhere down the line if these bushings fail..I'll try the steel bushing mod instead..






Rayo..

.
.
1991 Ford Thunderbird Sport

"If you don't know where you're going..Any road will take you there."George Harrison
Rayo is offline
post #29 of 31 (permalink) Old 08-23-2015, 12:44 PM
Seasoned PostWhore

bowez's Avatar

Join Date: Aug 2002
Location: NEAR
Posts: 2,423
For those who are interested, I measured the Dorman pieces. I used a set of 9" Starrett calipers so the decimal measurement should be good.

Height: 0.421" or 27/64" if you perfer

Diameter: 0.500"

Thinking about maybe making some out of UHMW.

If all else fails get a bigger hammer!

93 SC Tbird
MPII w/ Plenum,90mm MAF, 85mm TB, 40# Injectors, 255 lph FP, Double IC w/fan, SCT Chip (Tuned by Jerry),3/4" Raised Top, F52-TT TC, SilverFox AOD 550, SPT-R VB
96 1/2 XR7 Sold and Salvaged
93 5.0 Tbird

Last edited by bowez; 08-23-2015 at 12:50 PM.
bowez is offline
post #30 of 31 (permalink) Old 09-25-2015, 10:47 PM
Newbie

Join Date: May 2010
Location: Southern Middle Tennessee
Posts: 4
Steel ball bearings work perfectly also.
jstnmcgl is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
