post #31 of 84 (permalink) Old 12-06-2005, 07:11 AM
Full Metal

RedThunder94's Avatar

Join Date: Feb 2004
Location: South Central, Tx.
Age: 38
Posts: 4,744
Send a message via AIM to RedThunder94 Send a message via Yahoo to RedThunder94
woah, you got smoke off the alternator? are your connections tight? double check your wiring and make sure all connections are tight, that's the only thing i can think of, and better yet, post up a picture of your wiring if you can.

Smash Forehead on Keyboard to Continue....

2004 Mercury Grand Marquis GS
Pioneer DEH-P6000UB Infinity 2 way 6x8's, and Eclipse 5x7 3 ways, Fultron Tweets, Infinity 1211A, Alpine SWR-1222D Type-R 12.

1999 VW New Beetle SOLD!

1990 F150 Lariat Xlt 4.9L std cab longbed, E4OD, Work Truck.

1994 F150 XL 5.0L 4R70W Current Project.


Member of the MN12Online posse.



click here to check 'em out.
RedThunder94 is offline
Sponsored Links
Advertisement

post #32 of 84 (permalink) Old 12-06-2005, 08:29 AM
Resident Line Creator

th3subtl3on3's Avatar

Join Date: Dec 2003
Location: Horsham
Age: 31
Posts: 1,874
Send a message via AIM to th3subtl3on3
Nice write up. I love my 130 amp alternator on my car. I didn't have to have that plate to be able to mount the alt on. My mechanic simply ground down part of the alternator and some of the bracket for the pulley until the holes met up. Works great, and haven't had any troubles at all.


-Brian
1989 Mercury Cougar - Anything but the Ordinary

Fully Built 4.2 Coming Soon, Parts include:
SC Block, 4.2 Crank, Scat H Beam Rods, Wiseco Pistons, Custom Comp Cam, 3/8 Main Stud Girdle, Ported/Polished Split Port Heads and Lower Intake, Windstar Upper, Heavier Springs, 1.73 Roller Rockers, BBK Valve Covers, Kooks long tube headers, Aluminum Radiator.

It May Not Be Pretty When Finished, But It'll Perform Pretty Darn Well.
th3subtl3on3 is offline
post #33 of 84 (permalink) Old 12-06-2005, 09:09 AM
Birdless
Moderator

Grasshopper's Avatar

Join Date: Aug 2002
Location: Moore, OK
Age: 45
Posts: 2,717
Send a message via AIM to Grasshopper Send a message via Yahoo to Grasshopper
Here's pix...
Wide shot Arrows to my alt, engine (alt casing) and ground.

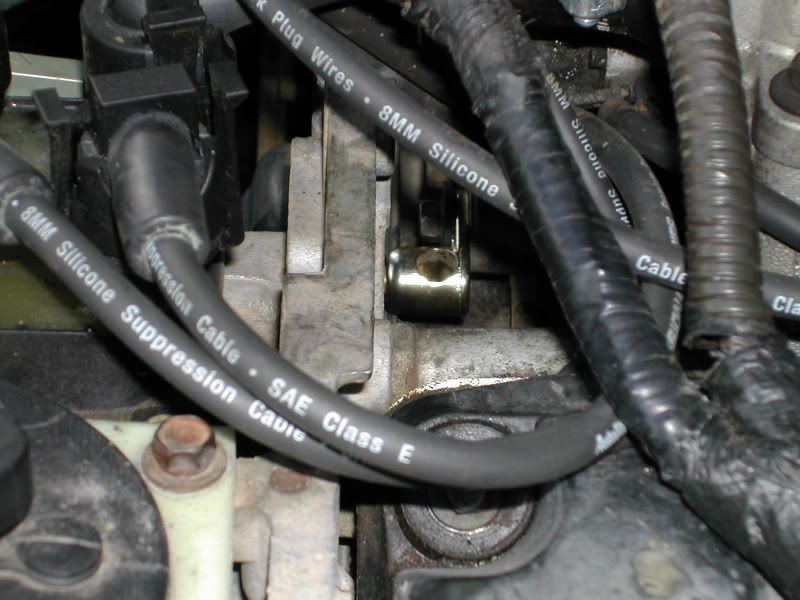

Alternator You can see my alt. post mount and my engine/alt. casing mount. Gotta love the backwards alternator!!

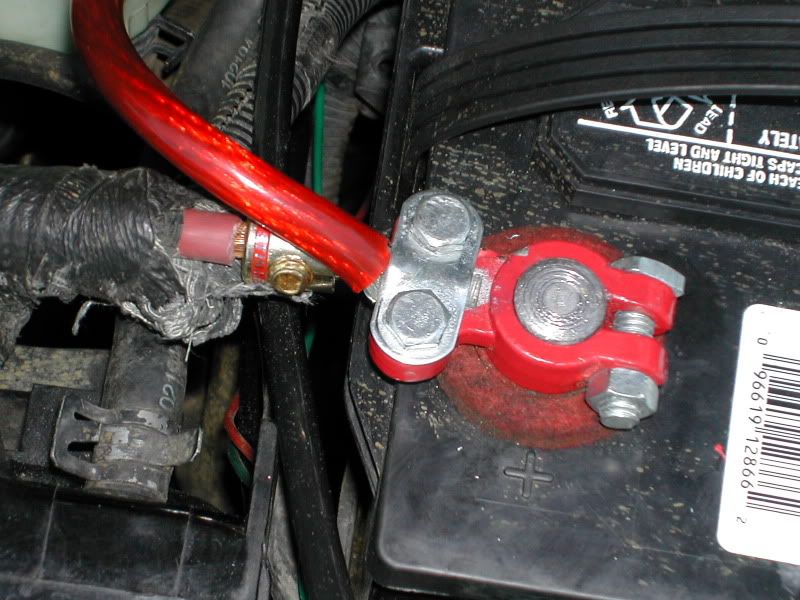

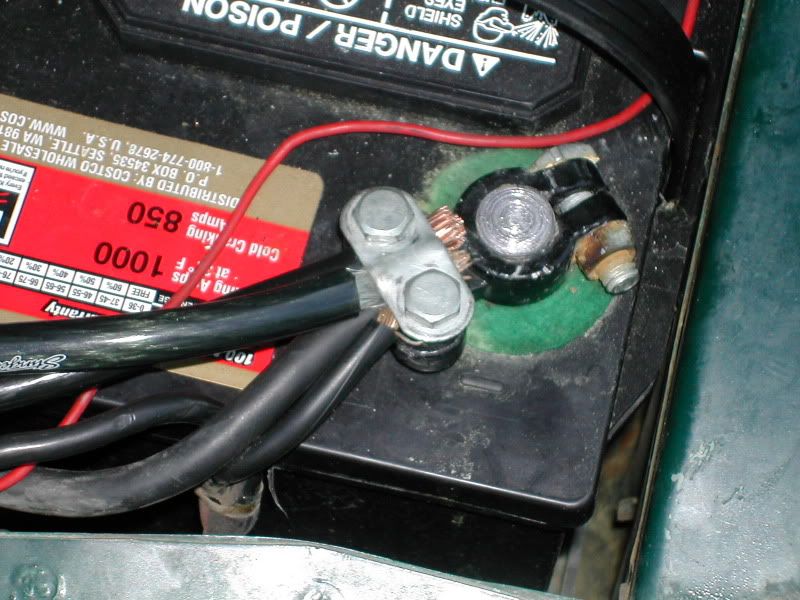

Battery Not much to see 'cept a busy positive terminal.

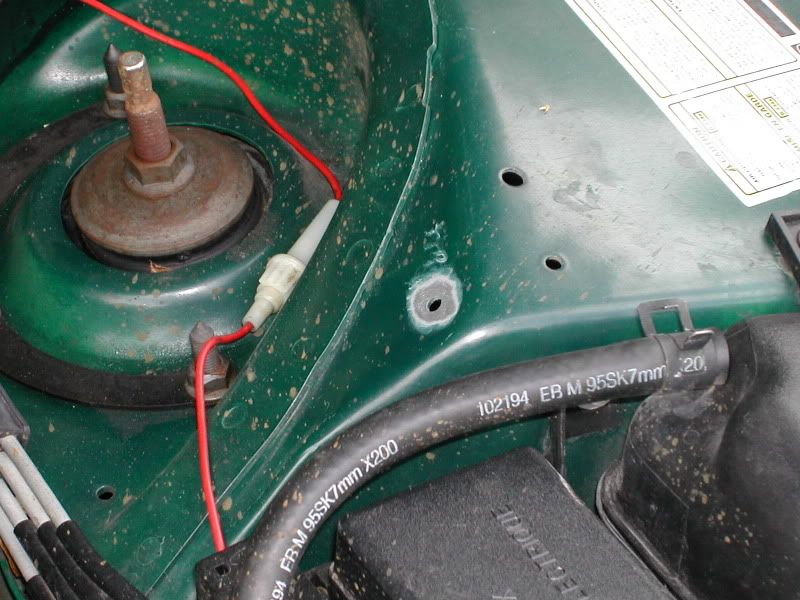

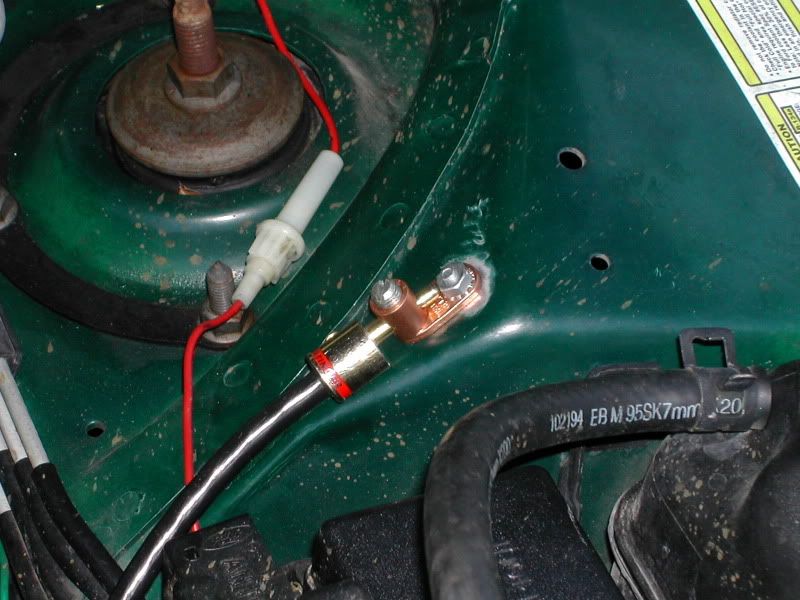

Ground I'm gonna give that area a little more stripping, just to make sure.

The connections are all tight and clean.
I guess I went with the article and hooked the engine to ground instead of engine to negative like you had. I think I could rewire it and hook it to negative if need be. I'm gonna get out there in a bit and work on that ground with a wire brush and unplug my amp and see what happens. I just have nightmares about the car burning down in the middle of the night and taking my house with it.

A man may smile and bid you hail
Yet wish you to the devil;
But when a good dog wags his tail,
You know he's on the level.
--author unknown
Grasshopper is offline

post #34 of 84 (permalink) Old 12-06-2005, 09:22 AM
Resident Line Creator

th3subtl3on3's Avatar

Join Date: Dec 2003
Location: Horsham
Age: 31
Posts: 1,874
Send a message via AIM to th3subtl3on3
If you said the alternator was smoking, just hope that nothing happened to it. Not sure if it could have damaged the alternator. Now, when you are reffering to your amp, you mean for subs/speakers? If so, don't you have an inline fuse for the power wire leading to the amp? You could just pull the fuse rather than disconnecting the amp. But disregard this info if you don't have a fuse.


-Brian
1989 Mercury Cougar - Anything but the Ordinary

Fully Built 4.2 Coming Soon, Parts include:
SC Block, 4.2 Crank, Scat H Beam Rods, Wiseco Pistons, Custom Comp Cam, 3/8 Main Stud Girdle, Ported/Polished Split Port Heads and Lower Intake, Windstar Upper, Heavier Springs, 1.73 Roller Rockers, BBK Valve Covers, Kooks long tube headers, Aluminum Radiator.

It May Not Be Pretty When Finished, But It'll Perform Pretty Darn Well.
th3subtl3on3 is offline
post #35 of 84 (permalink) Old 12-06-2005, 11:43 AM
Birdless
Moderator

Grasshopper's Avatar

Join Date: Aug 2002
Location: Moore, OK
Age: 45
Posts: 2,717
Send a message via AIM to Grasshopper Send a message via Yahoo to Grasshopper
Well, it just smoked due to the big spark. Not continually, if that means anything.
I just got back from stripping the ground spot better and hooked everything up and started the car. About 3 seconds after idle kicked in, I got another big spark at the alternator post. It was suggested in my other thread in General Tech that I need to get a voltmeter and go hunting for a electrons. LOL!
I know it's hard for you all to diagnose over the internet...I appreciate your help a lot!

A man may smile and bid you hail
Yet wish you to the devil;
But when a good dog wags his tail,
You know he's on the level.
--author unknown
Grasshopper is offline
post #36 of 84 (permalink) Old 12-06-2005, 09:31 PM
Full Metal

RedThunder94's Avatar

Join Date: Feb 2004
Location: South Central, Tx.
Age: 38
Posts: 4,744
Send a message via AIM to RedThunder94 Send a message via Yahoo to RedThunder94
Quote:
Originally Posted by crazed maniac
Nice write up. I love my 130 amp alternator on my car. I didn't have to have that plate to be able to mount the alt on. My mechanic simply ground down part of the alternator and some of the bracket for the pulley until the holes met up. Works great, and haven't had any troubles at all.
only prob with grinding on the alternator your warranty goes down the toilet, even as a core you would have probs, lol, i woulda just tried to grind down the bracket enough if i went with that route, and on a side note, be expecting something in the mail in a couple days. thanks.
Quote:
Originally Posted by Grasshopper
Here's pix...
Wide shot Arrows to my alt, engine (alt casing) and ground.
Alternator You can see my alt. post mount and my engine/alt. casing mount. Gotta love the backwards alternator!!
Battery Not much to see 'cept a busy positive terminal.
Ground I'm gonna give that area a little more stripping, just to make sure.

The connections are all tight and clean.
I guess I went with the article and hooked the engine to ground instead of engine to negative like you had. I think I could rewire it and hook it to negative if need be. I'm gonna get out there in a bit and work on that ground with a wire brush and unplug my amp and see what happens. I just have nightmares about the car burning down in the middle of the night and taking my house with it.
nice engine compartment, i see you went with all black, sweet, but the only thing i can see that might be a prob is the alt supply might be a little to close to the casing, it could just be the angle of the pics, but if not, maybe you might wanna bend it out some and insulate it with tape or heatshrink. hope it works out for you bro, if only you were closer i'd go look at it in person.

Smash Forehead on Keyboard to Continue....

2004 Mercury Grand Marquis GS
Pioneer DEH-P6000UB Infinity 2 way 6x8's, and Eclipse 5x7 3 ways, Fultron Tweets, Infinity 1211A, Alpine SWR-1222D Type-R 12.

1999 VW New Beetle SOLD!

1990 F150 Lariat Xlt 4.9L std cab longbed, E4OD, Work Truck.

1994 F150 XL 5.0L 4R70W Current Project.


Member of the MN12Online posse.



click here to check 'em out.
RedThunder94 is offline
post #37 of 84 (permalink) Old 12-07-2005, 06:45 AM
Birdless
Moderator

Grasshopper's Avatar

Join Date: Aug 2002
Location: Moore, OK
Age: 45
Posts: 2,717
Send a message via AIM to Grasshopper Send a message via Yahoo to Grasshopper
I didn't think of that...these are premade wires that were close enough on length for me to use without any problems...and yeah, all O'Reilly's had was black. I ran the wire pretty close to the casing bacause there was a path, and didn't realize that it might cause a problem. I'll try to work on that this evening.
I went by a local car audio shop yesterday to pick their brain on this. Didn't take the car but it's still easier to explain with your hands instead of on th net. He said that my positive side might be shorting out due to the old pos/alt wire making contact, or something similar. The alt side of it is off and out of the way, but the pos/batt side is still connected, making for a very busy positive side. Previously, I had four connections to the positive terminal, three being stock (the fourth was part of my intercooler setup). One is small and the other two are bigger. Is the biggest one the one that goes to the starter? If so, I'll just try to redo my whole positive side and see if I can't isolate it a lot better.

A man may smile and bid you hail
Yet wish you to the devil;
But when a good dog wags his tail,
You know he's on the level.
--author unknown
Grasshopper is offline
post #38 of 84 (permalink) Old 12-07-2005, 07:00 AM
Full Metal

RedThunder94's Avatar

Join Date: Feb 2004
Location: South Central, Tx.
Age: 38
Posts: 4,744
Send a message via AIM to RedThunder94 Send a message via Yahoo to RedThunder94
i dunno, i still have the factory alt supply hooked up with the new one, it's not necessary to remove it since electricity takes the path with least resistance anyways, but try to look at the wires on the alt and see if any of them are close enough to short to ground.

Smash Forehead on Keyboard to Continue....

2004 Mercury Grand Marquis GS
Pioneer DEH-P6000UB Infinity 2 way 6x8's, and Eclipse 5x7 3 ways, Fultron Tweets, Infinity 1211A, Alpine SWR-1222D Type-R 12.

1999 VW New Beetle SOLD!

1990 F150 Lariat Xlt 4.9L std cab longbed, E4OD, Work Truck.

1994 F150 XL 5.0L 4R70W Current Project.


Member of the MN12Online posse.



click here to check 'em out.
RedThunder94 is offline
post #39 of 84 (permalink) Old 09-20-2006, 04:22 PM
2nd Gear Poster

Ben999_'s Avatar

Join Date: Sep 2004
Location: Lebanon, PA
Age: 30
Posts: 80
Send a message via AIM to Ben999_

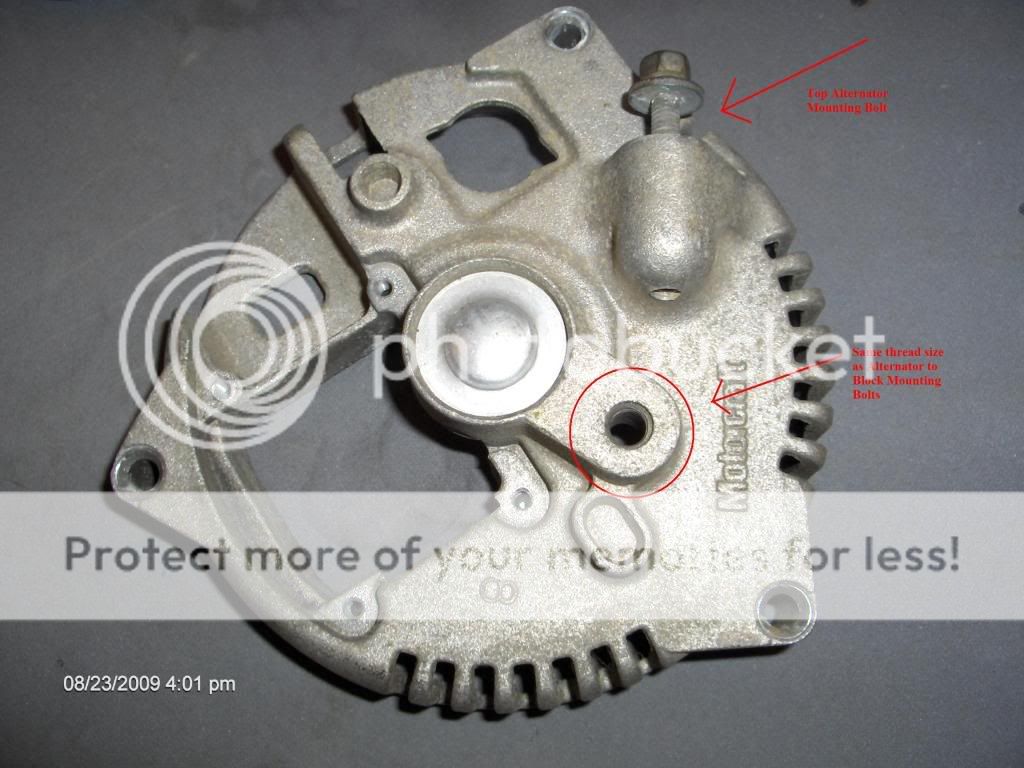

Is that upgraded alternator the same as the one used in this tech article for the 5.0L engines? (http://tccoa.com/articles/misc/130alt/index.html) I have one of these laying around and I was just curious since they seemed similar.
Ben999_ is offline
post #40 of 84 (permalink) Old 09-25-2006, 02:46 PM
2nd Gear Poster

Ben999_'s Avatar

Join Date: Sep 2004
Location: Lebanon, PA
Age: 30
Posts: 80
Send a message via AIM to Ben999_
Well since no one is helping I just did a side by side comparison and they look to be the same. The top pic is from the article, the bottom is from RedThunder

Ben999_ is offline
post #41 of 84 (permalink) Old 09-25-2006, 05:40 PM
Full Metal

RedThunder94's Avatar

Join Date: Feb 2004
Location: South Central, Tx.
Age: 38
Posts: 4,744
Send a message via AIM to RedThunder94 Send a message via Yahoo to RedThunder94
wow, sorry i missed your post, lol, i'm not on as much as i used to be, and from your pics they do look almost the same, it may be the case, i guess it wouldn't hurt to try it, so let er rip and let us know if it works.

Smash Forehead on Keyboard to Continue....

2004 Mercury Grand Marquis GS
Pioneer DEH-P6000UB Infinity 2 way 6x8's, and Eclipse 5x7 3 ways, Fultron Tweets, Infinity 1211A, Alpine SWR-1222D Type-R 12.

1999 VW New Beetle SOLD!

1990 F150 Lariat Xlt 4.9L std cab longbed, E4OD, Work Truck.

1994 F150 XL 5.0L 4R70W Current Project.


Member of the MN12Online posse.



click here to check 'em out.
RedThunder94 is offline
post #42 of 84 (permalink) Old 09-25-2006, 06:14 PM
Birdless
Moderator

Grasshopper's Avatar

Join Date: Aug 2002
Location: Moore, OK
Age: 45
Posts: 2,717
Send a message via AIM to Grasshopper Send a message via Yahoo to Grasshopper
Just wanted to say (and I'm not sure if I posted it before) that I found the source of my flickering problem. It was one of the small alternator wires...in order to install the AED kit, I had to flip the alternator, which led to making the wires longer. It turns out that my wire splicing job sucked. My brother and I stumbled across it and he said the splice didn't look good. I redid it and now all is good.

I can sure screw it up...

A man may smile and bid you hail
Yet wish you to the devil;
But when a good dog wags his tail,
You know he's on the level.
--author unknown
Grasshopper is offline
post #43 of 84 (permalink) Old 11-16-2006, 07:20 AM
leet sauce

eg0r's Avatar

Join Date: Sep 2005
Location: Canada, BC
Age: 31
Posts: 1,841
i cant believe i cant find info of a stock 97 alternator and upgrade options after 2 hours of searching
would some1 be kind enough to point me to the right direction?
eg0r is offline
post #44 of 84 (permalink) Old 11-16-2006, 07:24 AM
leet sauce

eg0r's Avatar

Join Date: Sep 2005
Location: Canada, BC
Age: 31
Posts: 1,841
130amps is what a stock one is, did i manage to finally find the right info?
eg0r is offline
post #45 of 84 (permalink) Old 02-28-2007, 01:36 AM
Seasoned Veteran Poster

mybird_91's Avatar

Join Date: May 2006
Location: Wood River, Illinois
Age: 34
Posts: 958
Send a message via Yahoo to mybird_91


where is negative chassis to engine???

1994 Chevrolet Camaro Z28
LT1 350
K&N Intake and Flowmaster Exhaust
1995 Lincoln Mark VIII
hollow front cats, 3rd cat still there, no resonator, replaced by a single 40 series flowmaster, 2 3"x18" tips out back. screamin demon coil packs, mallory pro wires, motorcraft platinum plugs. intake resonator delete.
mybird_91 is offline
post #46 of 84 (permalink) Old 08-15-2007, 10:31 PM
4th Gear Poster

Join Date: Oct 2005
Location: michigan
Posts: 254
link in 1st post is broken

1996 sport 4.6 130k and still strong.
1991 SC 3.8 project and toy.
ncoop23 is offline
post #47 of 84 (permalink) Old 08-15-2007, 11:53 PM
PostWhore

ClintD's Avatar

Join Date: May 2007
Location: Parlin, New Jersey
Age: 43
Posts: 1,343
Garage
Quote:
Originally Posted by ncoop23 View Post
link in 1st post is broken
Link in first post is over 2 years old.

But if you go further down the thread the alternator info is covered in full detail.

I've come into this world with nothing and still manage to have some of it left.

http://www.cardomain.com/ride/2902509/1

ASE Master Technician and Advanced Level Specialist.
It's not what I know, It's knowing what I don't know.
ClintD is offline
post #48 of 84 (permalink) Old 10-02-2008, 10:49 AM
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
Quote:
Originally Posted by mybird_91 View Post


where is negative chassis to engine???
the wire from the chassis to the battery + wire from engine to battery = chassis to engine

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #49 of 84 (permalink) Old 10-02-2008, 12:32 PM
Full Metal

RedThunder94's Avatar

Join Date: Feb 2004
Location: South Central, Tx.
Age: 38
Posts: 4,744
Send a message via AIM to RedThunder94 Send a message via Yahoo to RedThunder94
whoa, is this thread old, but your right about the chassis ground lol, i didn't see that question before.

Smash Forehead on Keyboard to Continue....

2004 Mercury Grand Marquis GS
Pioneer DEH-P6000UB Infinity 2 way 6x8's, and Eclipse 5x7 3 ways, Fultron Tweets, Infinity 1211A, Alpine SWR-1222D Type-R 12.

1999 VW New Beetle SOLD!

1990 F150 Lariat Xlt 4.9L std cab longbed, E4OD, Work Truck.

1994 F150 XL 5.0L 4R70W Current Project.


Member of the MN12Online posse.



click here to check 'em out.
RedThunder94 is offline
post #50 of 84 (permalink) Old 02-09-2009, 03:16 PM
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
i know this is old as hell but i figured i'd post it here. maybe it'll help someone out.

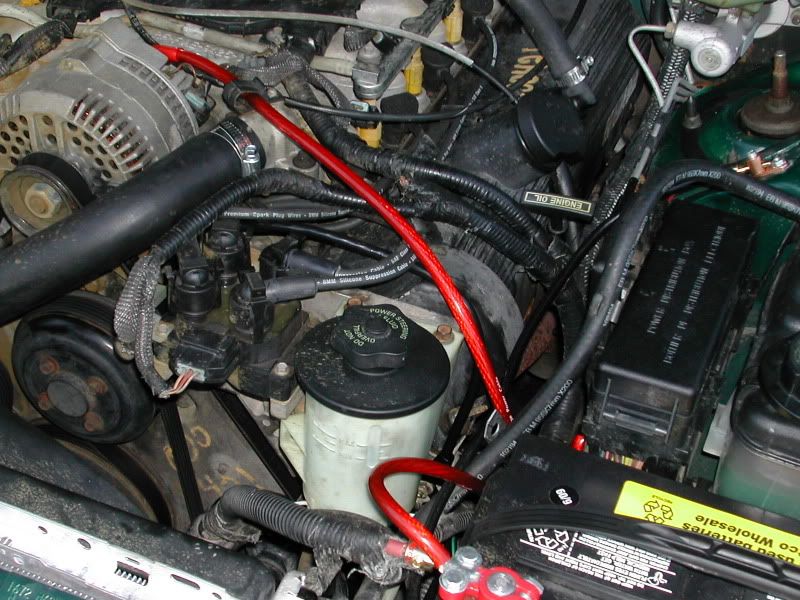

my big 3:

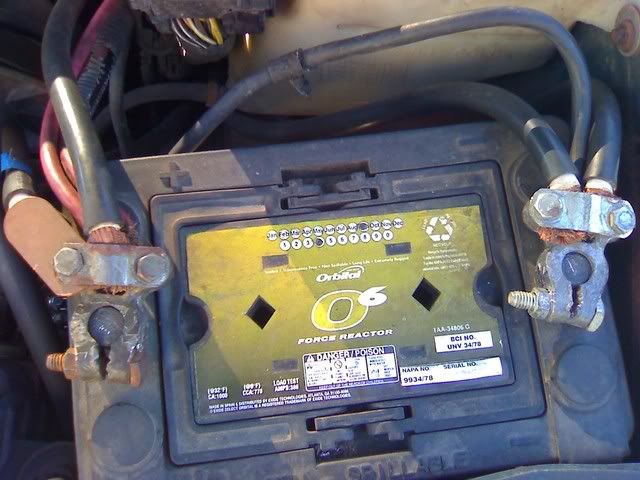

Battery:

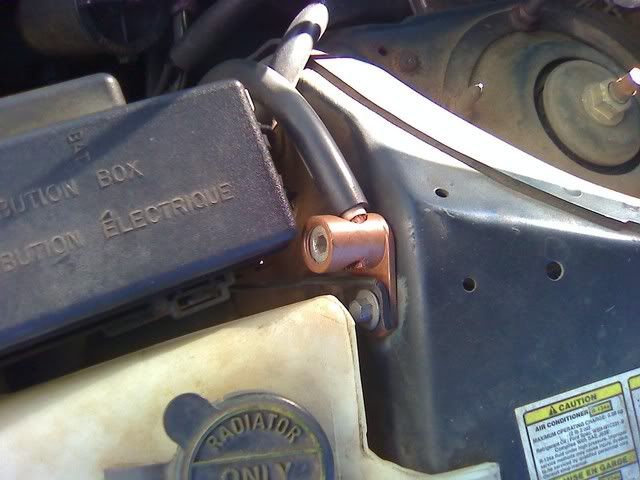

Battery Neg --> Chassis:

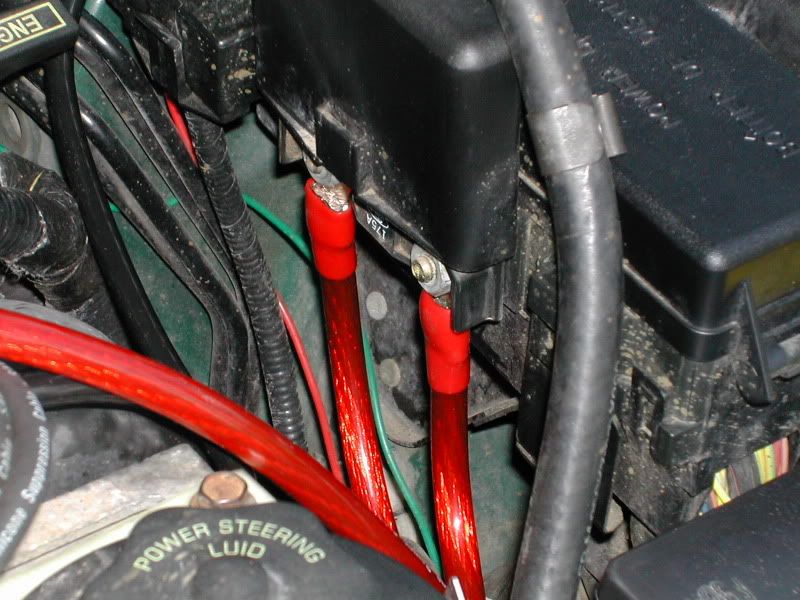

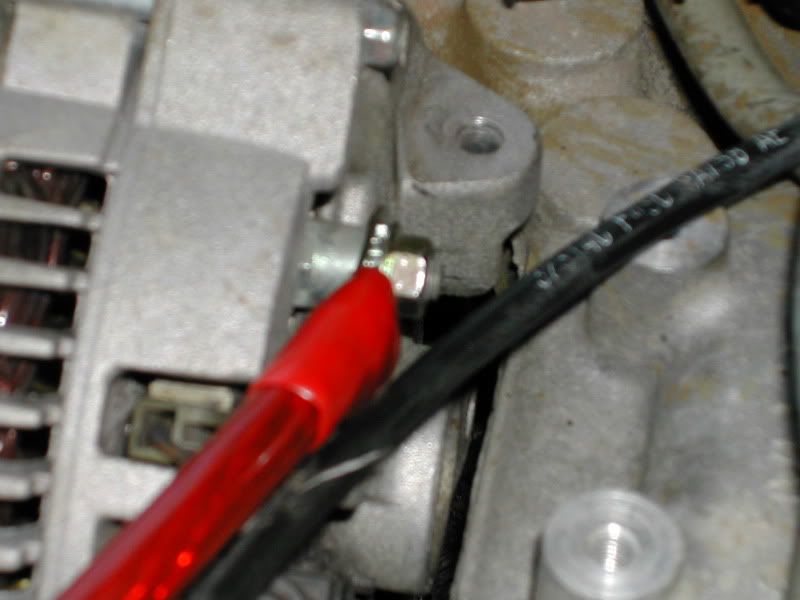

Battery Pos --> Alt Pos:

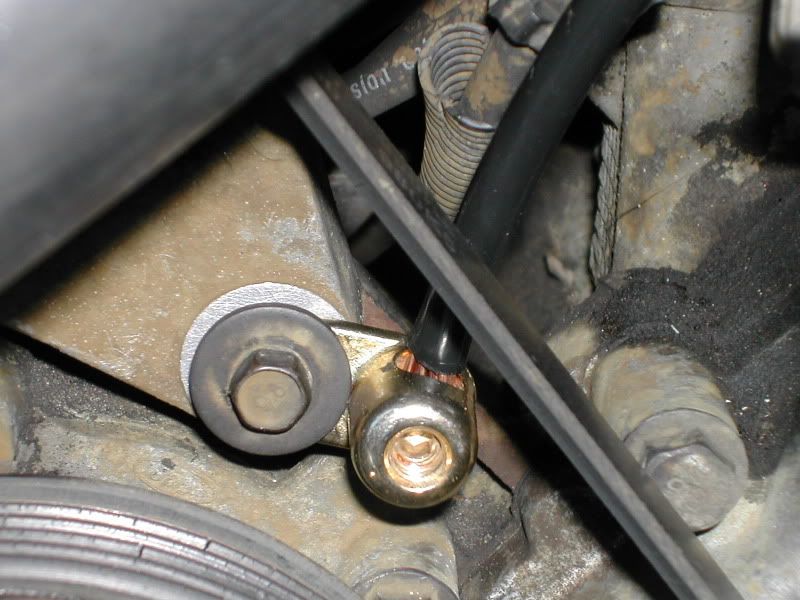

Battery Neg --> Engine (Alt Bracket):

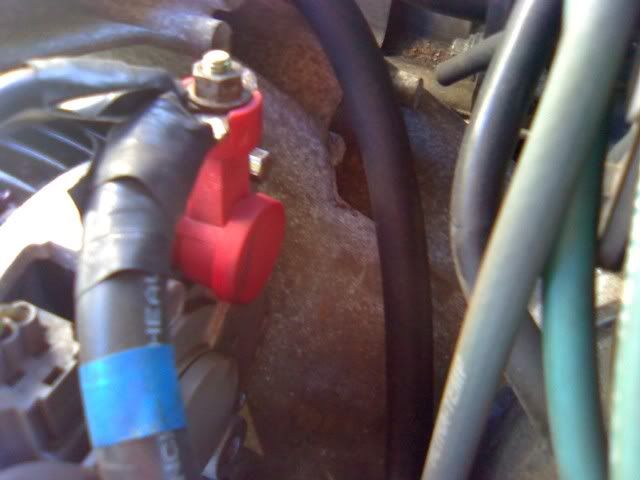

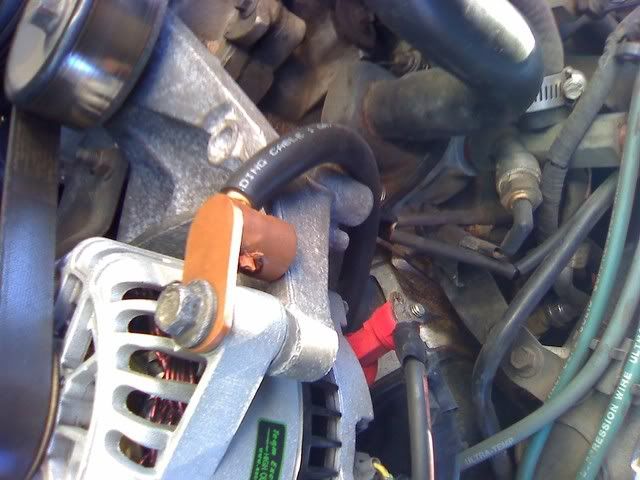

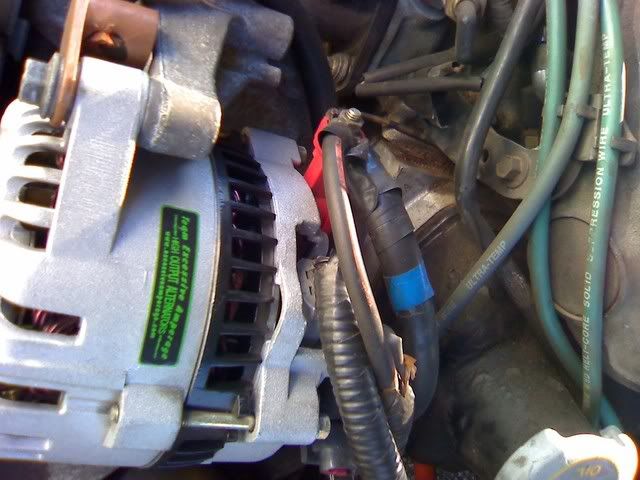

Alt Pic:



NO, I DON'T HAVE ENGINE --> CHASSIS. I don't see a need for it.

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #51 of 84 (permalink) Old 03-04-2009, 01:13 PM
6th Gear Poster

Lithsanatrex's Avatar

Join Date: Nov 2002
Location: Evansville, IN
Age: 32
Posts: 608
Send a message via MSN to Lithsanatrex
on the 89-93 harness, the one witht he two black/red wires, which one gets the ring terminal for the 94+ alt? i think im getting the pics confused :/
Lithsanatrex is offline
post #52 of 84 (permalink) Old 03-27-2009, 01:10 AM
drag-aholic

BAGGED89's Avatar

Join Date: Jul 2002
Location: Fresno, CA
Age: 43
Posts: 1,054
its my unserstanding you dont use those 2 wires after this upgrade.
I think that are about a heavy 10ga. not quite and 8 ga. You run a "charging wire from the alt postive post directly to the battery instead.
I have an aftermarket alt and it had me cut those off and add a charging wire. I use a 1ga. chargeing wire. I cut those black with red stripe wires and heat shrunk the end and tucked it in the harness hidden.

heres the peice that says it - sort of

"here is the mod you have to do to the early alt harness to plug in the newer alt. you just cut the white with black stripe wire and install a small female spade terminal on the wire and plug it into the newer alt. you do not use the rest of this connector"

1989 LX Full Air Suspension
Owner / Operator BAGGEDBIRDS.com
BAGGED89 is offline
post #53 of 84 (permalink) Old 08-18-2009, 03:22 PM
PostWhore

V8ThunderCat's Avatar

Join Date: May 2007
Location: Cisco, TX
Age: 37
Posts: 1,104
This has yet to be covered and I really need some good input but where should the engine be grounded from on a 4.6???

So far all of the pics show 3.8's and now I'm jealous of their alternator mounts.

Us V8 guys don't have an easy way to add a ground from there to anywhere so I'm going a little stir crazy.

Maybe I can get by with just a new battery ground but I feel a little uncomfortable adding a new power wire from the alt. to the battery without adding an engine ground.

-Randy-
V8ThunderCat is offline
post #54 of 84 (permalink) Old 08-18-2009, 03:47 PM
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Age: 31
Posts: 3,669
Garage
*not too familiar with 4.6 engine bay*

can you not run one to the alt case bolt? if not, there has to be a bolt somewhere close you can use. as long as it connects to the block, it'll be fine (i.e. accy brackets, heads, etc)

1994 Thunderbird - 2000 4.2L M5R2 now on the road!!

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
post #55 of 84 (permalink) Old 08-20-2009, 04:15 PM
PostWhore

V8ThunderCat's Avatar

Join Date: May 2007
Location: Cisco, TX
Age: 37
Posts: 1,104
Quote:
Originally Posted by jco1385 View Post
*not too familiar with 4.6 engine bay*

can you not run one to the alt case bolt? if not, there has to be a bolt somewhere close you can use. as long as it connects to the block, it'll be fine (i.e. accy brackets, heads, etc)
The thing about the alt is that there are 2 bolts on the bottom holding it against the timing cover and then there is a mount w/hole on the top at the back that is suppose to be bolted to a brace that is bolted to the crossover. Unfortunatly I bought the car without the alt brace and I have yet to find one.

Also from what I can tell the casing of the alt is aluminum and I don't think the hole on the back would be grounded even if it's bolted to the brace bolted to the aluminum crossover. I guess I could use the rigid non-braided solid copper 4 awg cable that I had bought from Lowes for a ground if I run it from the lower bolt closest to the battery. I'm just kinda scared about how close it will be to the belt. First I need to find a ring terminal large enough for the bolt to go through.

I'd just feel better if the ground went strait from the alternator just to make sure that the alternator has the best possible ground along with the rest of the engine.

-Randy-

Last edited by V8ThunderCat; 08-21-2009 at 03:49 PM. Reason: Figured I'd add a bit more input.
V8ThunderCat is offline
post #56 of 84 (permalink) Old 08-23-2009, 04:58 PM
2nd Gear Poster

skorchmp's Avatar

Join Date: Aug 2009
Location: Lafayette, CO
Age: 38
Posts: 66
Alternator Grounding point...

Hello all... I have found a possible grounding point on the 130A alternator on a 4.6l.


Sorry about the disassembled state of the Alternator, but it's all I have available at the moment. The hole in the back is not used for anything, and it's the same threading as the two long mounting bolts that attach the alternator to the engine block. It's perfect for a 5/16" ring terminal (I checked), and I don't think there would be any interference issues with the front of the intake manifold, since there is a gap there. The only caveat is that to access this hole, one must remove the alternator. I will be attempting this once I order a new alternator (current one is a little tired, and not worth rebuilding).

I gotta throw this in, too.... AWESOME SITE!! Been digging through it for the last coupla months, and this place has helped immensely with some of the issues on my newly-acquired 'Bird.

Last edited by skorchmp; 08-23-2009 at 05:00 PM. Reason: Can't figure out how to quote...
skorchmp is offline
post #57 of 84 (permalink) Old 08-23-2009, 05:26 PM
2nd Gear Poster

skorchmp's Avatar

Join Date: Aug 2009
Location: Lafayette, CO
Age: 38
Posts: 66
Quote:
Originally Posted by guitar maestro View Post
you could put a 100A fuse if you fear an accidental short....but not too many short circuits on our cars will draw 100+ amps of current surge......we just didnt have one at the moment

Just thought I'd chime in on the fuse matter. The reason for a fuse between the alternator output and the battery is that the battery is connected to the alternator at all times. When the car is not running, battery power is connected to the the rectifier assembly inside the alternator. The rectifier assembly consists of a number of high-current diodes (I counted 8, just now). A diode is a semiconductor device that allows current to flow in one direction only. The diodes in that rectifier assembly are the only thing that isolates your battery from the alternator casing, since some of these diodes are connected to the casing, since the case is used as ground. Think of what will happen if one or more of those diodes fail. When a diode fails, it could begin allowing current to flow in BOTH directions. Dead Short. Make that a dead short being fed by heavy gauge wiring connected directly to the battery. What happens then? Well, since the diodes are inside the alternator, much of the resulting carnage SHOULD be contained in there. Of course, with a fuse in place between the battery and the alternator, the fuse will pop, and interrupt the process of rectifier meltdown. I should mention that this is, of course, a worst-case scenario. I work in the electronics field, dealing with electronics components, and the odds of such a catastrophic failure of the rectifier diodes is not too great, IMHO. Odds are, the failed diode would simply vaporize due to the amount of current available from the battery. Most of the time when a diode fails, it simply opens, rather than create a dead short. But, the thought of a dead short in my engine compartment gives me the creeps. I would recommend fusing anything that is connected to the battery, for safety. Just my $0.02, of course.
skorchmp is offline
post #58 of 84 (permalink) Old 09-03-2009, 05:09 PM
PostWhore

V8ThunderCat's Avatar

Join Date: May 2007
Location: Cisco, TX
Age: 37
Posts: 1,104
I think I've figured out a way to ground my alt. but now I'm trying to figure out where to place the Stinger in-line fuse box I bought. I cannot put it where the V6 people put theirs. I don't want to run the cable to far but it looks like I may have to put it on the side of the shock/strut tower below the brake lines. I just don't know how easy it'll be to work in that area. I'm afraid I may have to take my chances with not having a fuse.

EDIT: After looking at it again I think I'll just glue the fuse holder to the battery after I turn the battery around.

RE-EDIT: Nevermind, after looking at the mega-fuse I've realized that it will be easier to reuse that instead of replacing it.

-Randy-

Last edited by V8ThunderCat; 09-05-2009 at 03:44 AM.
V8ThunderCat is offline
post #59 of 84 (permalink) Old 09-08-2009, 07:16 PM
PostWhore

V8ThunderCat's Avatar

Join Date: May 2007
Location: Cisco, TX
Age: 37
Posts: 1,104
I finally found the time to upgrade the Big 3! It took longer than it should but that happens a lot when live in a 3rd floor apartment and the tools and parts aren't always in the tool box in my trunk. I didn't do it the way I had planned but I at least had old extra parts that still made it possible. The following pics I guess will be the first to show a 4.6L V8 with a bigger better Big 3!

Here's the alternator ground terminal that took me forever to find in my junk box.


And another view of it.


This is where the rigid wire from the alt ground is bolted so that I could run the more pliable wire to the battery.


Here's the spot where I used a Mouse sander to expose the metal.


Here's the battery ground all fixed up.


Now I think maybe I need something to make sure this terminal isn't too overloaded?


Here's the simple beginning of the new alt. power cable.


And of course it goes strait to the Mega Fuse.


Now I finally also used a new battery power terminal.


Last but not least here's the Big 3 in all of its glory.


Even with all of this done I'm still getting voltage dips. The voltmeter at least now usually stays a lot further to the right than before. It now reads 14.65v when running except of course when the engine bogs down which is something I've been trying to figure out. It dips whenever anything electrical comes on but it at least recovers quickly. I'm guessing that there's a bad ground somewhere but until someone points out to me where all of the grounds are I may never find it. I'll start a topic about this later if no one replies here.

-Randy-
V8ThunderCat is offline
post #60 of 84 (permalink) Old 11-13-2009, 02:48 AM
4th Gear Poster

Join Date: Oct 2009
Location: Upstate, South Carolina,USA
Posts: 290
No one has specified whether the voltmeter gauge and idiot lights work with this set up.

All stock 1990 Merc Blue Max Cougar 3.8L with Automatic
ben2go is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
