Q: What's the threading on the female bung on my passenger side 5.0 exhaust manifold?

I think this is the where the EGR or the smog pump connected to the exhaust manifold but I'm not 100% sure since it's been quite a while since I had a complete smog-legal tbird in my possession to review.

For the 5.0 engine currently in my track car, I took whatever pipe was there on the donor car, cut it down, and welded a cap onto it.

For my backup engine, I think I sold the matching pipe to someone so I have nothing that fits that bung perfectly.

Please let me know what I'm looking for to block off this port.

I've tried a 1/2" NPT plug and it's just a hair too small in diameter.
It may work if I make a copper gasket from scrap
copper wire beaten flat + seal it with copper RTV but that's not the ideal solution. That will be my backup plan unless you guys can steer me in the right direction.

Thanks in advance for your reply.
Regards,
-g

My TCCOA iTrader Rating: (44 / 100% w/ 50+ transactions)
S4gunn is offline
post #2 of 8 (permalink) Old 07-17-2014, 06:02 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 37
Posts: 11,936
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
Quote:
Originally Posted by Rayo View Post
I just happen to have an 5.0 MN12 EGR Pipe here.. I measured the end that threads into the Passenger Side header..It comes out to roughly .85 inches which translates to 1/2-14 NPT..In this case since it's getting threaded into a hole..You need a 1/2" MNPT Pipe Plug..I like this style with the hex head:


This one should work nicely-->>1/2" MNPT Pipe Plug

Rayo..
Quote:
Originally Posted by S4gunn View Post
I've tried a 1/2" NPT plug and it's just a hair too small in diameter.
Yeap.
guitar maestro is offline
post #3 of 8 (permalink) Old 07-17-2014, 06:54 PM
Seasoned PostWhore

tbirdtess's Avatar

Join Date: Aug 2005
Location: Western New York
Age: 51
Posts: 2,542
plug

Hello

I used the 1/2" pipe plug, & had it welded in.


Paul Nm12tbirdracer@aol.com
1990 Thunderbird Circle Track Street Stock
351W 2bbl.
C-4 Auto
3.90 open rear
tbirdtess is offline
post #4 of 8 (permalink) Old 03-27-2017, 07:04 PM Thread Starter
Seasoned PostWhore

S4gunn's Avatar

Join Date: Dec 2010
Location: SF, CA
Age: 38
Posts: 2,082
Garage
So I lost one of my Smog bung plugs in my last lemons race so I need to cap one/both of them again.
My last bungs were made from the stock Smog pipe (cut down and plugged).

Q: Does anyone have the proper threading for these parts? If not, I'll do what paul suggests by plug and welding it on.

Right not, the spare bung plug is shoved in and tack welded on. I'm sure the threads are all screwed up by now.

I'd rather not pull the exhaust manifold off the car (it's wrapped all nicely) but I guess I'll have to do so.

-g

My TCCOA iTrader Rating: (44 / 100% w/ 50+ transactions)
S4gunn is offline
post #5 of 8 (permalink) Old 03-27-2017, 08:14 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 54
Posts: 8,328
Quote:
Originally Posted by S4gunn View Post
So I lost one of my Smog bung plugs in my last lemons race so I need to cap one/both of them again.
My last bungs were made from the stock Smog pipe (cut down and plugged).

Q: Does anyone have the proper threading for these parts? If not, I'll do what paul suggests by plug and welding it on.

Right not, the spare bung plug is shoved in and tack welded on. I'm sure the threads are all screwed up by now.

I'd rather not pull the exhaust manifold off the car (it's wrapped all nicely) but I guess I'll have to do so.

-g
For some reason, I just spent a bit laughing uproariously at this completely innocent post.

I heard Beavis reading it to me, and it went downhill from there.

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.

I'm not Human enough to be human; but I'm trying to fit in, and I'm learning to fake it.

"Never said Hibbity..." - Brian Williams
Grog6 is offline
post #6 of 8 (permalink) Old 04-12-2017, 09:20 AM
̇

Rayo's Avatar

Join Date: Nov 2008
Location: Ohio
Posts: 3,668
Garage
EGR Pipe Delete

I deleted my entire EGR system last Summer..What I found was kind of interesting..
I mean the size of the threads on the female bung on the passenger side 5.0 exhaust manifold..
It turns out, they are pipe thread...Just not American Pipe Thread..British actually..

I didn't know such a thing existed until I started poking around at the hardware store..

Anyways, the size is 5/8-14

I used this one-->>JMF 5/8in Flare Plug (41212)


The way the EGR Pipe is installed is similar to say brake fittings..With the Inverted Flare being how it seals..

Using a Die Grinder..I removed the sleeve that protrudes into the inside of the collector..
I opted to remove mine so the plug would sit further into the bung hole..lol

If you ever planned on reinstalling the EGR Pipe, I would advice against removing that sleeve that protrudes into the inside of the collector..
Otherwise, your pipe won't seal..

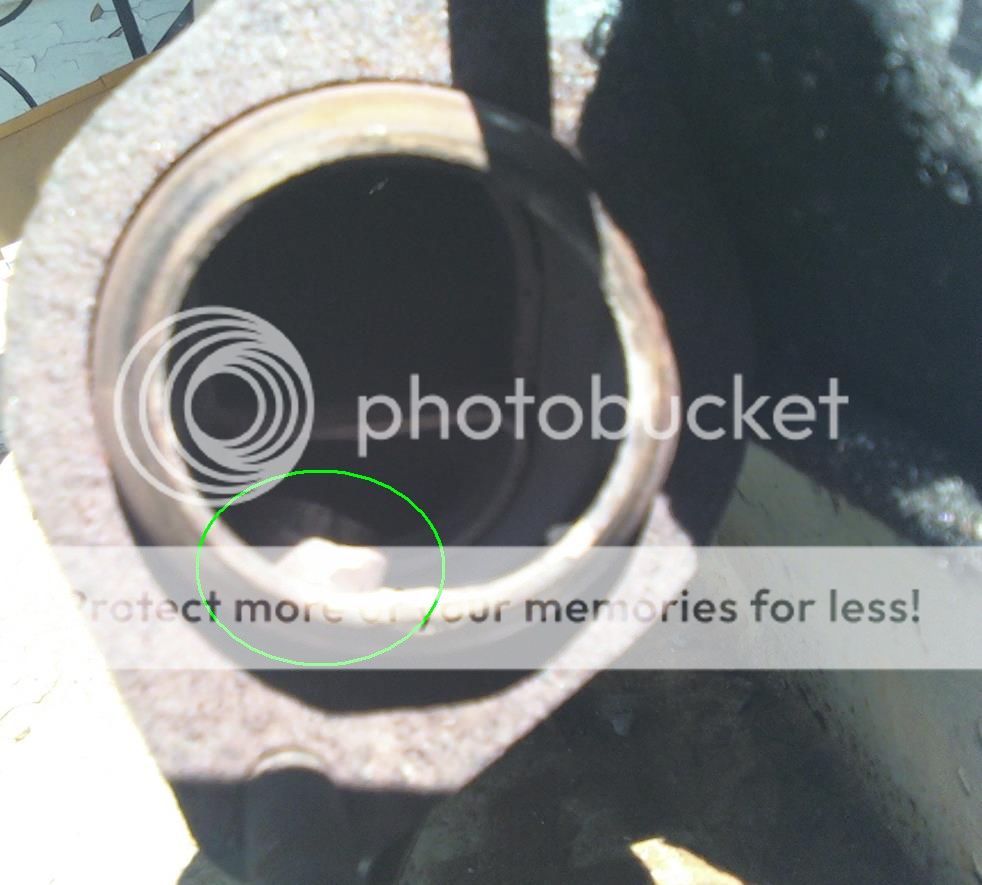

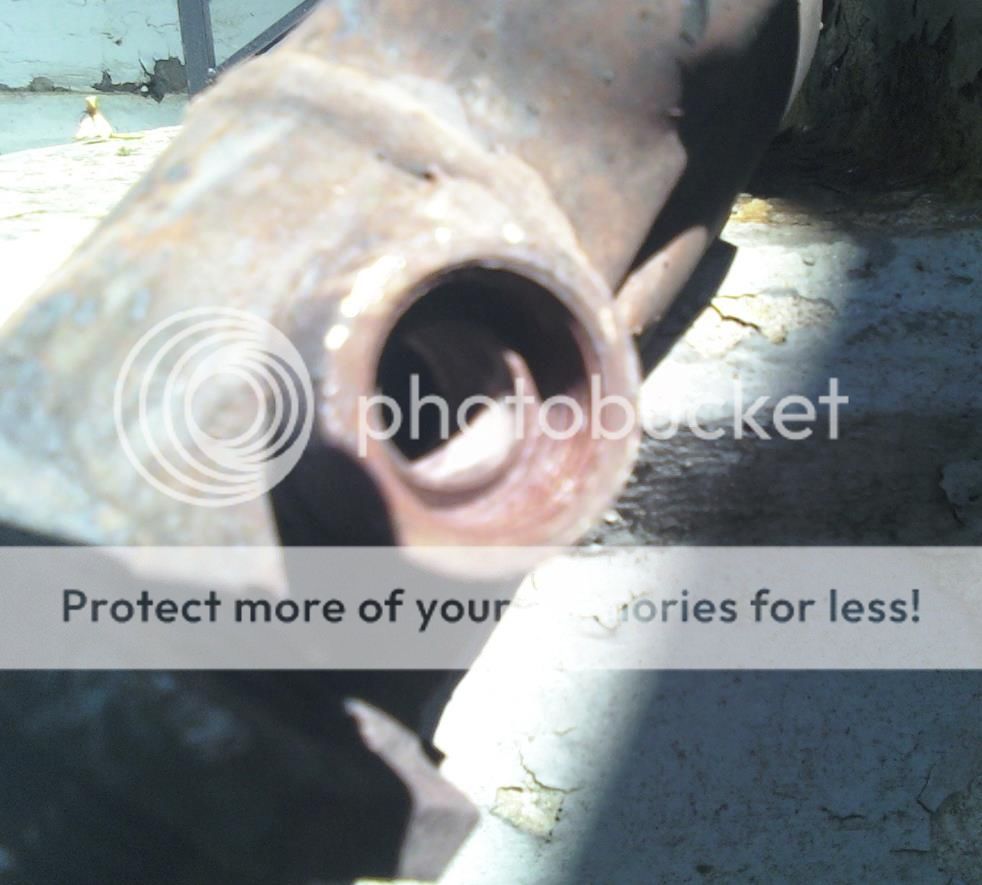

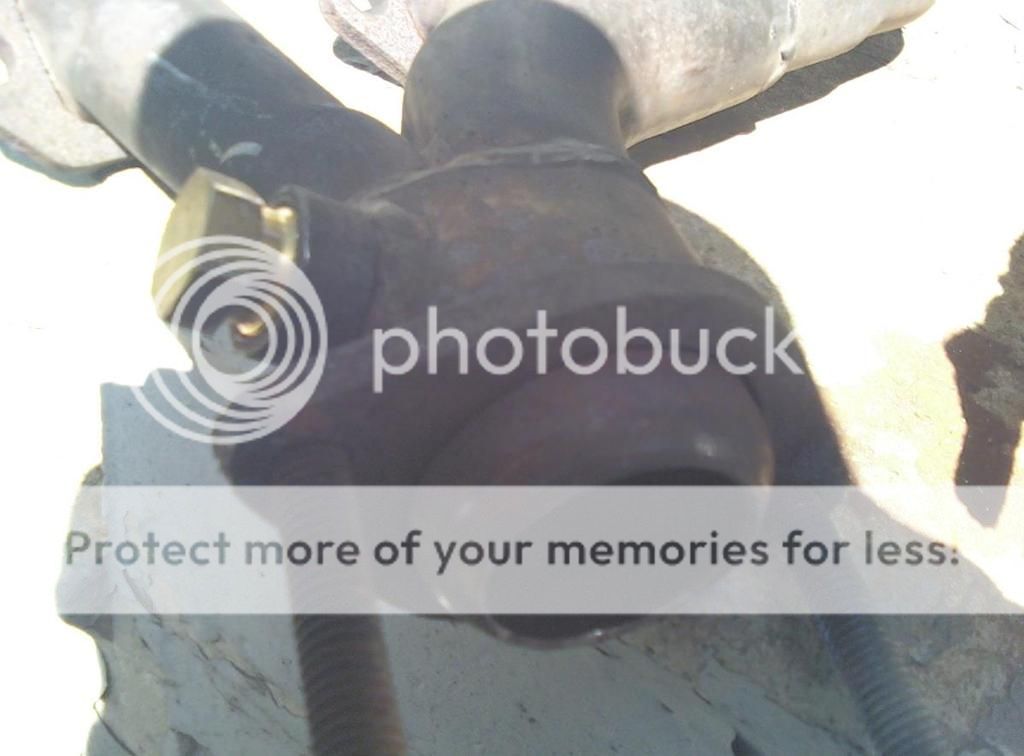

Here are the pics:










Rayo..

.
.
1991 Ford Thunderbird Sport

"If you don't know where you're going..Any road will take you there."George Harrison
Rayo is offline
post #7 of 8 (permalink) Old 04-12-2017, 12:48 PM Thread Starter
Seasoned PostWhore

S4gunn's Avatar

Join Date: Dec 2010
Location: SF, CA
Age: 38
Posts: 2,082
Garage
Ahh, I wish you had posted that last night. I just welded the 1/2" bung in last night.
Oh well. I'll put that 5/8" plug on my shopping list for a spare.

-g

My TCCOA iTrader Rating: (44 / 100% w/ 50+ transactions)
S4gunn is offline
post #8 of 8 (permalink) Old 04-12-2017, 03:55 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 54
Posts: 8,328
The fittings on the side of the 4r70W are BPST: British Pipe Straight Thread.
