post #1 of 17 (permalink) Old 04-18-2019, 01:06 AM Thread Starter
4th Gear Poster

KEVIN8989's Avatar

Join Date: Aug 2012
Location: Ca
Posts: 272
Garage
Rebuilding 94 SC engine for my 92 SC

Hey I need to know what are the differences between the 92 Sc engine and the 94 Sc engine. Im keep it stock so that way it will be easier to make it work. I ordered a 92 timing cover and oil pan, I noticed there was a sensor on the bottom of the 94 block is that the oil sensor? If so can I just take it out and put a bolt in its place right? The oil sensor on my 92 is on the oil pan. And also the 92 doesnt have egr and the 94 does, is there a easy way to work around that?
Attached Images
File Type: jpg IMG_20190417_172753.jpg (867.8 KB, 3 views)
File Type: jpeg MmsPicture_20190416115955.jpeg (943.0 KB, 2 views)
File Type: jpeg MmsPicture_20190416120138.jpeg (877.0 KB, 2 views)
Wile E. Coyote Jr. likes this.
KEVIN8989 is online now
Sponsored Links
Advertisement

post #2 of 17 (permalink) Old 04-18-2019, 05:01 AM
MA Chapter Director

Administrator

Rodeo Joe's Avatar

Join Date: Jul 2002
Location: Franklin, MA
Age: 62
Posts: 7,910
Garage
Kevin,

I'm not sure of the differences between the the 2 years, but it should be fairly easy to just swap things over from one motor to the other.

I think that's a knock sensor on the side of the block. If you have no EGR on yours, why don't you just leave it off this one?

I'm sure someone with more knowledge will step up for you.

Joe

It's not a 97 Sport, it just looks like one!

Mass. TCCoAers, Send me your info!

I buy all my Ford parts from 93 lx.

Member of the TCCoA Damage Control Team.

R.I.P. Johnny Langton 1975 - 2011
Rodeo Joe is offline
post #3 of 17 (permalink) Old 04-18-2019, 04:43 PM
Seasoned PostWhore

Join Date: May 2003
Location: Tinton Falls, NJ
Age: 36
Posts: 7,411
Garage
Send a message via AIM to MadMikeyL
That is the knock sensor on the side of the block, and you should have the same one on the 92 motor. As or the oil pan, personally I would run the 94 pan. If you know how to check your oil, you don't need that sensor, and more often than not it is that level sensor itself that is leaking in the first place. As for EGR, if you are using your 92 blower, then when you bolt the top end together it will be fine. If you are using the 94 blower and inlet, then buy or make a blockoff plate.
KEVIN8989 likes this.

-91 Cougar LS, coming soon, complete overhaul with a 427" Windsor.
-90 XR7 5-speed black on black w/sunroof, MP2, coated rotors, double intercooler, 15%OD, ported heads, comp stage 1 cam, 85mm TB, 90MM LMAF, 80# injectors, and ported big valve heads
-98 Mark VIII LSC, Procharger P600b, TR3650 swap and 3.73s.
-90 SC Automatic rustbucket winter beater
-97 Tbird Sport 4.6 Nice weather daily driver
-"Your buddy Mike is INSANE!" -ClintD's dad
MadMikeyL is online now
Sponsored Links
Advertisement

post #4 of 17 (permalink) Old 04-18-2019, 10:18 PM Thread Starter
4th Gear Poster

KEVIN8989's Avatar

Join Date: Aug 2012
Location: Ca
Posts: 272
Garage
I would use the 94 oil pan but it has deep scratches on it. Thank you both for all your help.
KEVIN8989 is online now
post #5 of 17 (permalink) Old 07-10-2019, 12:24 PM Thread Starter
4th Gear Poster

KEVIN8989's Avatar

Join Date: Aug 2012
Location: Ca
Posts: 272
Garage
Should I buy new pistons? I just trying not to spend too much money on this car, but I need it to last 100,000 miles. I plan on buying new piston rings. My dad will be doing the rebuilding.
Attached Images
File Type: jpeg MmsPicture_20190709155609.jpeg (703.7 KB, 1 views)
File Type: jpeg MmsPicture_20190709155537.jpeg (640.0 KB, 1 views)
File Type: jpeg MmsPicture_20190709155629.jpeg (738.9 KB, 1 views)
KEVIN8989 is online now
post #6 of 17 (permalink) Old 07-10-2019, 12:39 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 56
Posts: 9,923
Garage

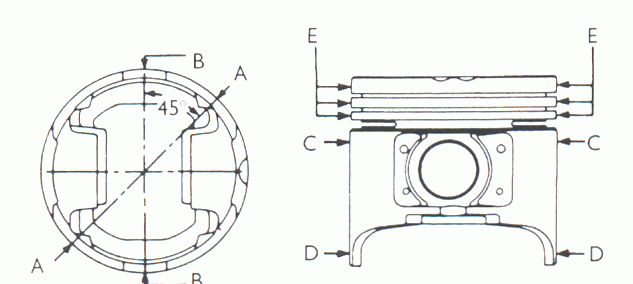

You need to measure them and see how much they're worn really.

If you just want to refurb it as is, as long as nothing Looks worn too bad, it's probably ok; you can just re-ring it.

If you aren't going to measure it all, I hope you marked which ones came from where. It can be important, depending on clearances.
On my 4.6l, I had 7x "2" pistons, and 1x "3" piston. They're different sizes, by a bit.

You need to do valve stem seals, rod bearings, and crank bearings too; they're not too expensive.

If you're not having a valve job done, you need to Lap the Valves, too.

If I were you, I'd go annoy the hell out of dDUBb, and make him help. Isn't he local to you?

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.


"War Is Peace. Freedom Is Slavery. Ignorance Is Strength." - George Orwell.
Truth Isn't Truth. - Rudy Giuliani, 2018 Award winner, “Most Outrageous Diversion” by MSNBC for this quote

Last edited by Grog6; 07-10-2019 at 12:53 PM.
Grog6 is online now
post #7 of 17 (permalink) Old 07-10-2019, 12:48 PM Thread Starter
4th Gear Poster

KEVIN8989's Avatar

Join Date: Aug 2012
Location: Ca
Posts: 272
Garage
The valve seals are done, I finally found the right crankshaft bearings(federal mogul from napa), and connecting rod bearings. I just wanted to see what I should do with pistons before it gets put together. This is the worse looking piston. Im pretty sure my dad marked what number each piston is.
KEVIN8989 is online now
post #8 of 17 (permalink) Old 07-10-2019, 01:33 PM
Seasoned PostWhore

S4gunn's Avatar

Join Date: Dec 2010
Location: SF, CA
Age: 40
Posts: 2,593
Garage
Quote:
Originally Posted by KEVIN8989 View Post
Should I buy new pistons? I just trying not to spend too much money on this car, but I need it to last 100,000 miles. I plan on buying new piston rings. My dad will be doing the rebuilding.
Kevin:
Quick and dirty isn't something that I would associate with a rebuild potentially lasting 100K mi. This is 80s american engineering.

You area already likely doing this refresher on an engine that already has >100K mi on it AND once its rebuilt you will likely want to beat on it a little bit because (understandably) you'll want to play with your new toy.

I did two (three?) half ass rebuilds and the labor/effort it cost to rebuild let alone the engine removal/replacement effort dwarfed the machine shop labor & costs to do it right.

I would have been MUCH happier (and saved a good deal of $$$) if I had just done it right the first time.

1) 3.8L pistons will run you < $200. Some are even $120 set.
https://www.summitracing.com/search/...engine-type/v6

2) Before buying pistons & matching rings though, you should consider if its worth overboring the pistons.
Apparently you can go from 3.810in to 3.875in. I'm not suggesting to do this to make more power but to make sure you have a nice round seal for the piston rings.
Building the Ford 3.8L Engine

3) If you are taking the block apart, I assume you will install new camshaft and main bearings. If you haven't completely taken it apart, it might be useful to see how much clearance you have now and the condition of these bearings before deciding if its worth line honing the bores and installing undersized bearings to have a truly rebuild engine (vs a swap/re-ring job).

4) The heads are aluminum so you should at a minimum check to see that they are properly flat. A shop can do this if you don't have a machinists straight edge. I agree about the suggestion to replace the valve seals and at least lapping the valves.

My TCCOA iTrader Rating: (44 / 100% w/ 50+ transactions)

24 Hours of Lemons 2017 Sear Pointless Organizer's Choice
2018 Upgrade: does your TBIRD make Fritos? Mine does
http://goo.gl/csaet4
S4gunn is offline
post #9 of 17 (permalink) Old 07-10-2019, 02:01 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 56
Posts: 9,923
Garage
I started out with a simple "Dropped Valve, replace with JY engine" project that became a Mark Motor swap, and 2 years into that I bought a PI engine and swapped it.

That turned into the swap from hell; the labor alone I have in it is astounding.

I've pulled the engine 3 times for various BS reasons, and have had to buy more stuff each time, lol.
The last time was the tranny dipstick tube, lol.

Don't do that; Do it right instead.

Doing it right means crossing all the T's, dotting the I's, and making sure you aren't shortcutting something; if you do, it will bite you where it hurts most, the wallet.


I'd buy new pistons, do all the bearings, buy a new cam, new lifters, new pushrods; buy the good headgaskets, after making sure the block and heads meet the flatness spec.

I'd Measure the cylinders with a bore gauge and depending on how it looks either hone or bore the cylinders, which is pretty much everything.


It's cheap compared to it sitting, waiting for me to have time and feel like fucking with it again after it breaks.

That's what I'm doing with the mark motor I bought.

I'm now at C-heads, from B-heads and rebuilding IMRCs, lol.

If you want to reuse parts, wait until you're done with the New Motor, and build the other block you have with the reused parts, so you have a spare, should something go wrong.


I have an iron block sitting here that the OG mark parts will go into someday, if I ever feel like dinking with it, lol.

Good luck with the build!

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.


"War Is Peace. Freedom Is Slavery. Ignorance Is Strength." - George Orwell.
Truth Isn't Truth. - Rudy Giuliani, 2018 Award winner, “Most Outrageous Diversion” by MSNBC for this quote
Grog6 is online now
post #10 of 17 (permalink) Old 07-11-2019, 07:25 PM Thread Starter
4th Gear Poster

KEVIN8989's Avatar

Join Date: Aug 2012
Location: Ca
Posts: 272
Garage
Has anyone ever purchased anything from Tom Morana(moranav6racing.com)? I was thing about going through him. He sells piston sets with rings and pins included. He also sells a stud girdle to help make a 2 bolt main crankshaft caps stronger than 4 bolt main. What do you guys think I can just call him up and order everything at once to make it simple.
KEVIN8989 is online now
post #11 of 17 (permalink) Old 07-11-2019, 11:06 PM
Seasoned PostWhore

dDUBb's Avatar

Join Date: Dec 2006
Location: Nor-Cal
Age: 38
Posts: 4,090
Garage
Only if the block needs it. Determined by measuring the cylinder walls / taper to figure out if you need to bore the engine over. If so, yes you need pistons. If you're just going to skip the measuring, hone the cylinders and throw new pistons on, don't expect it to last 100k miles.

SC engine block does NOT need any additional reinforcement on the mains. And to give up the 94/95 windage tray ? PFFT.
dDUBb is offline
post #12 of 17 (permalink) Old 07-14-2019, 01:13 PM
Newbie

Join Date: Jun 2017
Posts: 21
Quote:
Originally Posted by dDUBb View Post
Only if the block needs it. Determined by measuring the cylinder walls / taper to figure out if you need to bore the engine over. If so, yes you need pistons. If you're just going to skip the measuring, hone the cylinders and throw new pistons on, don't expect it to last 100k miles.

SC engine block does NOT need any additional reinforcement on the mains. And to give up the 94/95 windage tray ? PFFT.
Don't forget to add the 96? deep transmission pan while you have it apart. Thats good for an extra quart of badly needed oil
David Regan is offline
post #13 of 17 (permalink) Old 07-14-2019, 01:40 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 56
Posts: 9,923
Garage
This Is an SC; if there's a god, he has a manual tranny.

There were no 96 SC's.

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.


"War Is Peace. Freedom Is Slavery. Ignorance Is Strength." - George Orwell.
Truth Isn't Truth. - Rudy Giuliani, 2018 Award winner, “Most Outrageous Diversion” by MSNBC for this quote
Grog6 is online now
post #14 of 17 (permalink) Old 07-14-2019, 03:01 PM
Seasoned PostWhore

dDUBb's Avatar

Join Date: Dec 2006
Location: Nor-Cal
Age: 38
Posts: 4,090
Garage
Quote:
Originally Posted by Grog6 View Post
This Is an SC; if there's a god, he has a manual tranny.

There were no 96 SC's.

This SC in question is AOD = therefore god does not exist
dDUBb is offline
post #15 of 17 (permalink) Old 07-14-2019, 05:46 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 56
Posts: 9,923
Garage
Quote:
Originally Posted by dDUBb View Post
This SC in question is AOD = therefore god does not exist
I'm with you; that's the one advantage of an SC, in my book.

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.


"War Is Peace. Freedom Is Slavery. Ignorance Is Strength." - George Orwell.
Truth Isn't Truth. - Rudy Giuliani, 2018 Award winner, “Most Outrageous Diversion” by MSNBC for this quote
Grog6 is online now
post #16 of 17 (permalink) Old Today, 05:10 PM Thread Starter
4th Gear Poster

KEVIN8989's Avatar

Join Date: Aug 2012
Location: Ca
Posts: 272
Garage
Hmm extra quart of tranny fluid. I dont think AOD's and 4R70W's use the same pan do they? I dont know why SC with autos get so much hate. They are much faster off the line than a 4.6 T-Bird. Just not as fast as a manual SC.
KEVIN8989 is online now
post #17 of 17 (permalink) Old Today, 06:20 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 56
Posts: 9,923
Garage
No, there's a bolt hole that different between the two.

Someone gave me an aluminum aod pan, and I spent an hour trying to get it to bolt up.

Of course it's one of the bolts you can barely see, lol.

It got recycled, after I got thru with 'reeducating' it, lol.

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.


"War Is Peace. Freedom Is Slavery. Ignorance Is Strength." - George Orwell.
Truth Isn't Truth. - Rudy Giuliani, 2018 Award winner, “Most Outrageous Diversion” by MSNBC for this quote
Grog6 is online now
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 3 (2 members and 1 guests)
KEVIN8989 , rampagingsloth
Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Similar Threads
Thread Thread Starter Forum Replies Last Post
rebuilding engine outlawjack Newbie Forum 8 11-20-2014 08:15 PM
Engine rebuilding? tbirdtess General Tech 18 02-08-2014 01:13 PM
Who has rebuilt a 94/5? Im rebuilding my 1st motor. ry2lazy4u Engine - 4.6L & 5.4L 15 04-07-2009 05:22 PM
rebuilding my 8.8 rear 281Sleeper Engine - 4.6L & 5.4L 10 05-04-2003 09:00 AM
rebuilding engine ChrisBannon84 Super Coupe 14 11-05-2002 07:29 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
