03 Twin Turbo PI

Well, I think it is time for me to "unveil" my project. But before I go into details about the project, let me tell you a little bit about how I came into the conclusion about turbo charging my Cougar. Before I decided to turbo charge my car, it took me more than 2 years of research because I did not knew anything about induction so I had to get my brain up to date about it. So after does two years of research, another year came when I started to gather up the majority of the parts for me to to the build. Now, I decided to go with T3 Turbo coupes turbos from a manual because the turbos are bigger than the manual turbos, .63/.60 are the size. Of course to go with the turbos, I went 39lbs from a cobra, l-maf, 3.55 t-lock (was planning on going 3.73, but did not wanted to affect that much since I do a lot of highway driving, walbro 255 HP, 04 mustang GT TC, 2 38mm at 8psi external waste gates, HKS SSQV BOV, 28X7X3" IC, manual boost controller, FPR, all of the oil fittings, gaskets, plus all of the mandrel bent j's, u', pipes and all the silicone hoses.

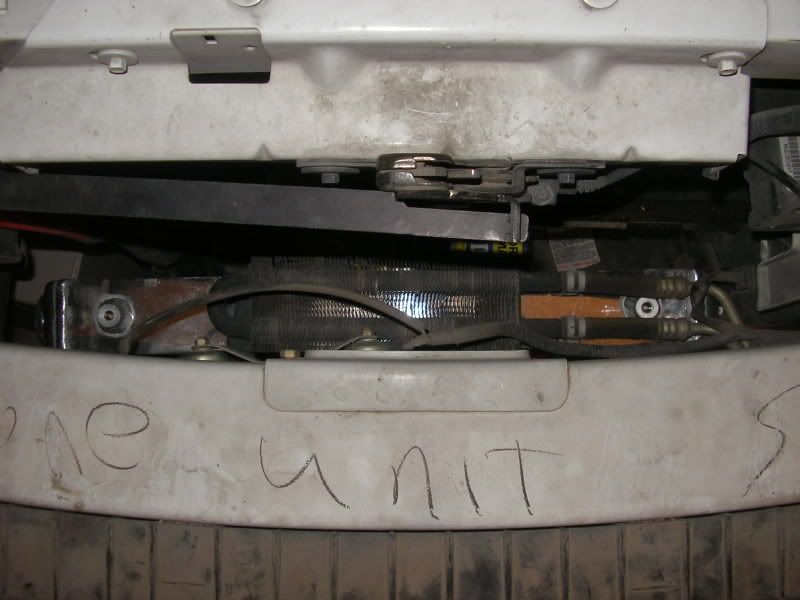

Not, let me show you some of the mock up pics that I took before I started actually doing the build up.

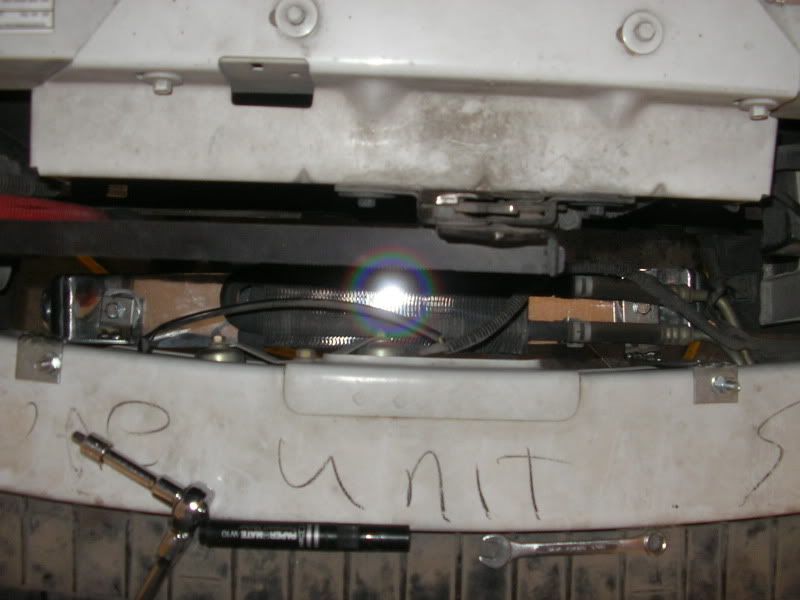

In this pic, I was testing as to where I could put the IC, so I though it was a good place to put it in.

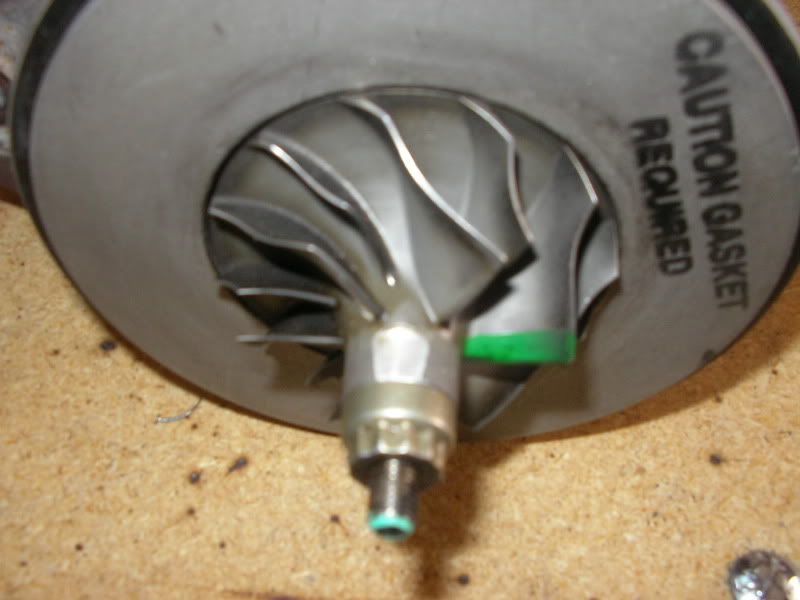

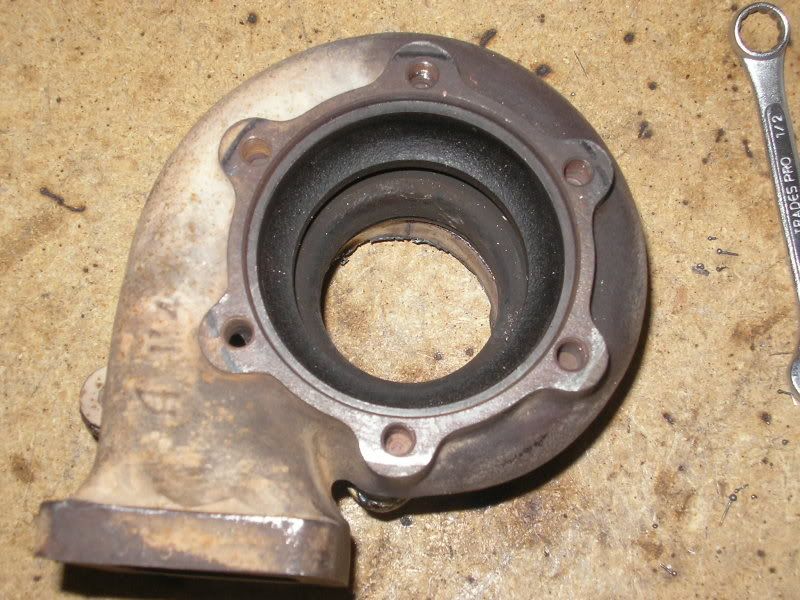

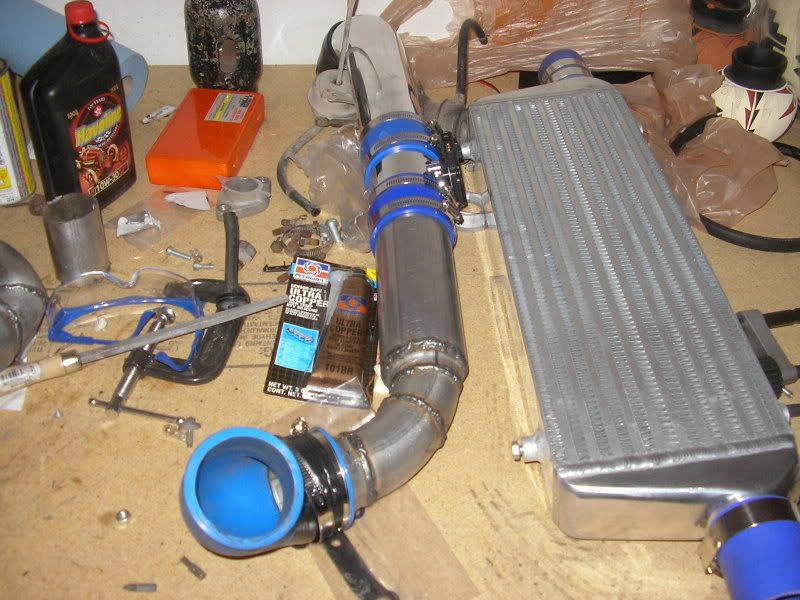

Some random pictures of the stuff I bought before I go to the actual build.






I bought more pipping after this.. LOTS more..





Now, to the actual build. I was so unsure as to where to start. At the beginning I thought if creating log style headers and replace the stock headers but that would have required more time, so I decided to use the stock headers and decided to do this:

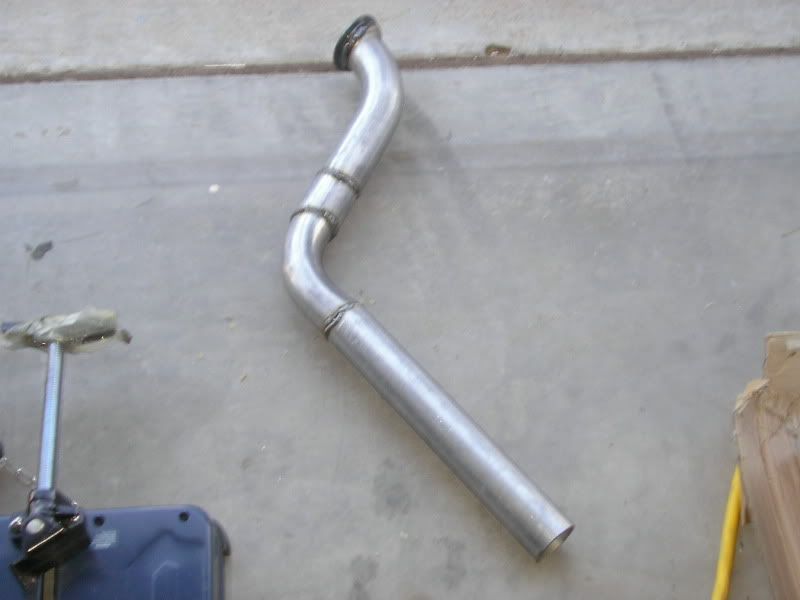

And, the final piece for the driver side...

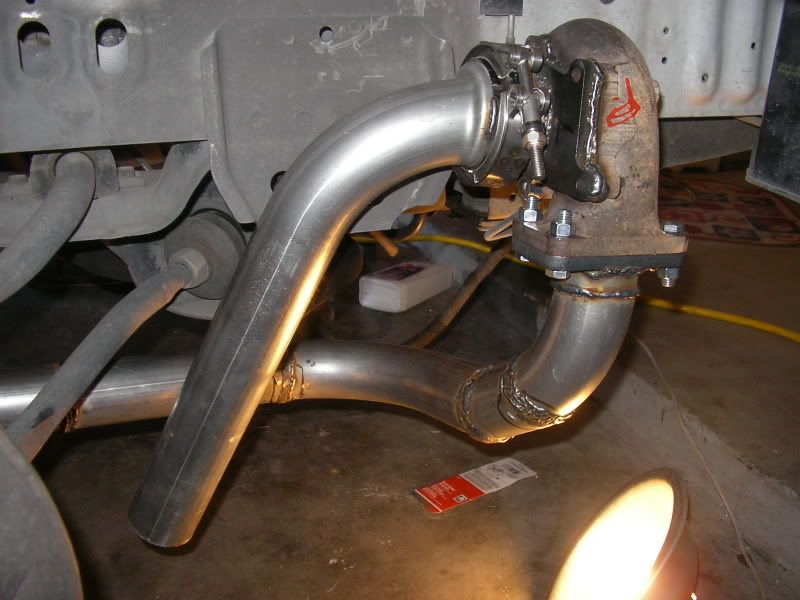

Now, to the passenger side. Here are some shots of the downtube welded up. Pardon my welds, but I am not welding expert yet.. I used a gas mig. Bought it at Home Depot. Lincoln Mig.











So far so good uh?! Well, after that, here are some pics were the turbos will be mounted...


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
Sponsored Links
Advertisement

post #2 of 155 (permalink) Old 03-03-2007, 05:07 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat

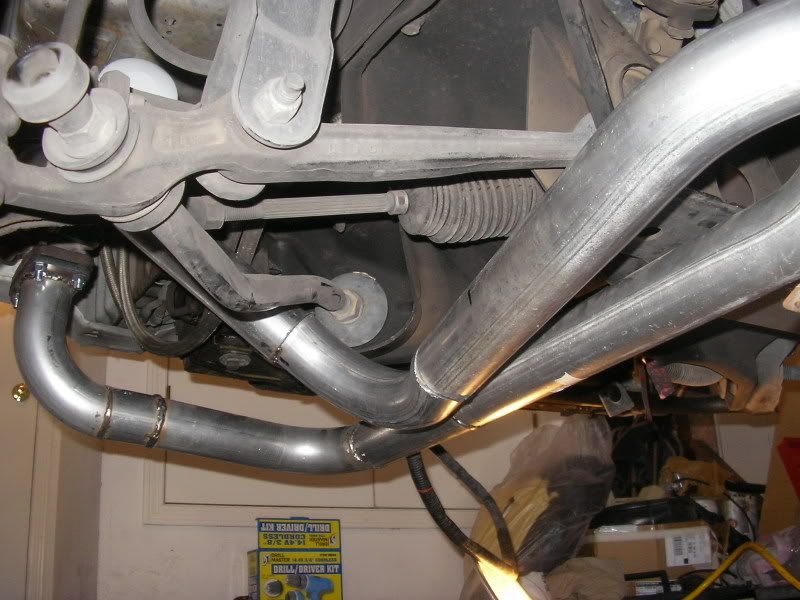

A picture with the finished down tubes..




Now, to start doing the hot side.... At first, I wanted it to have like this, but then, I put on the tires, and it would have been real close to the ground, and since over here in El Paso, we have a lot of speed bumps, I decided not to. But here's a quick pick. Purpose was to have it were the original cats were so I could do a straight exhaust pipe, but didn't work. Back to the drawing boards..




So I came up with this





I might redo this pipe and try to close both pipes together.. But we'll see.Now, to the driver side...





After here, I stopped because I did not had the new cats and turbo mufflers, so I could not finish the whole exhaust. So then, I decided to mount the intercooler.. Here are some pics:



One of the brackets, the other one is much the same so imagine it



And both brackets put on sustaining the IC

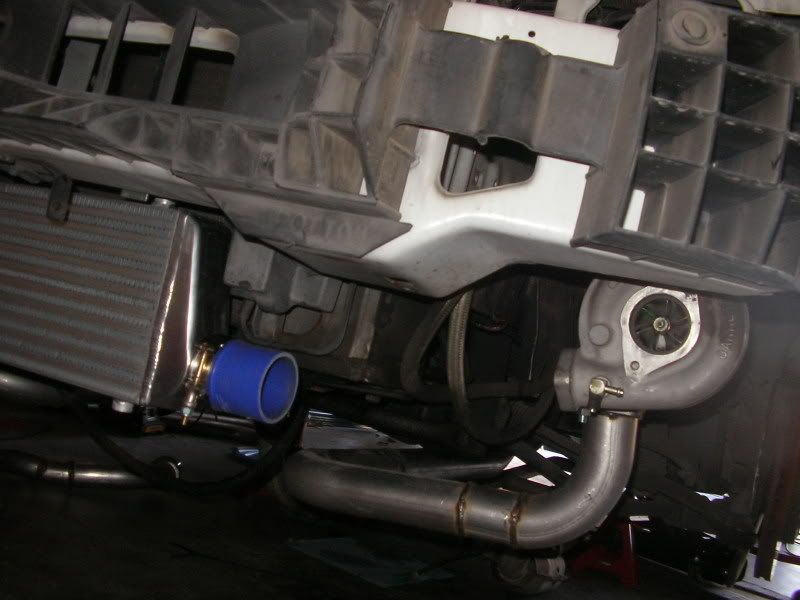

Now, since the IC was mounted, it was time to start with the cold side.... Here is where I got stuck a little bit, but managed to do some stuff...




And after much thought, I will change this part. What I want to do is to bring the passenger side turbo and connect it to the driver so the passenger exit of the IC to go directly to the engine. For some reason, I did not took pictures of the passenger side But, anyways, here are some pics of the intake tube, nasty I must say so I am also thinking of doing my own intake tube out of a 3" pipe and buy a maf adapter and welded onto the pipe(i'll keep you all informed about that). That MAF adapter, I bought it from autozone lol, yes vato zone, is a 3" inch adapter and the lamf electronics does fit, I would just need to dyno tune it, but like I said, I might get rid of that.





Here, I had to make a bigger hole to make the down pipe going to the IC, and after I did, I will have to re-weld a piece to cover up the rest of the hole that I wont need, unnecessary hot air will come to the engine.

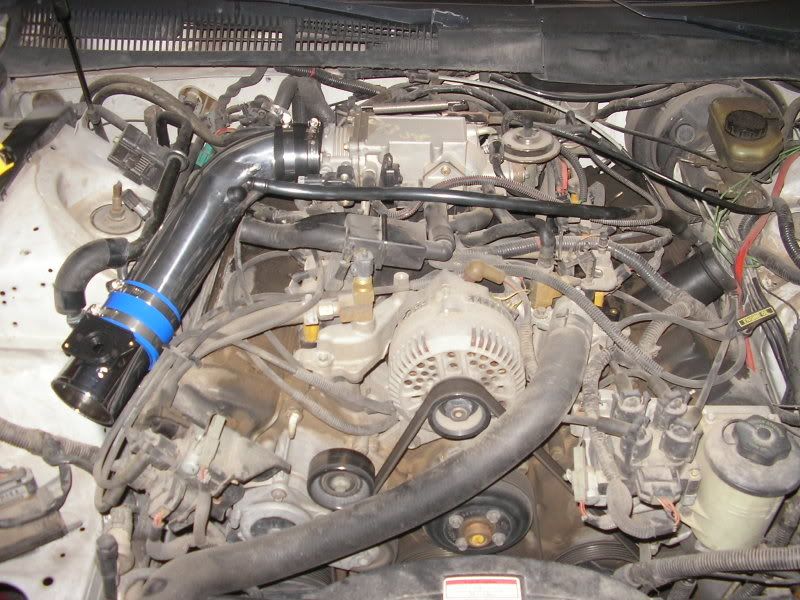

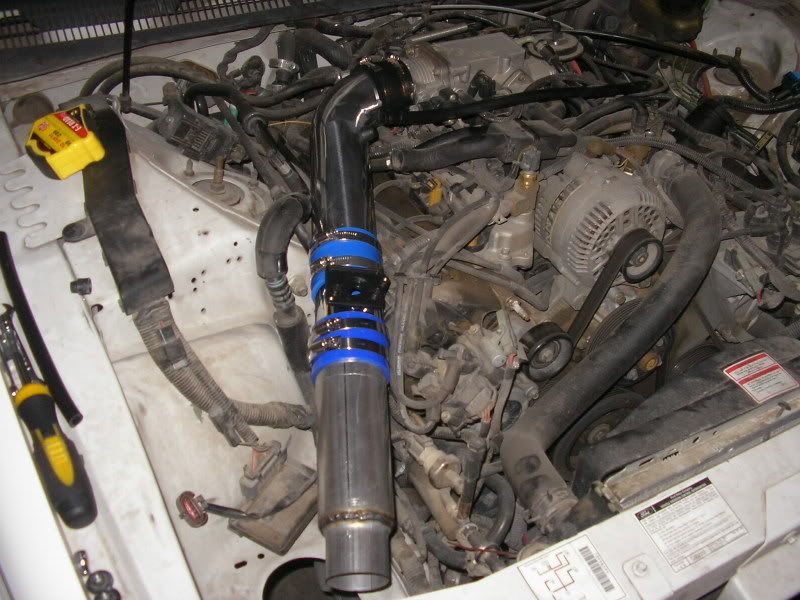

I know I am missing more pictures, but I just can not find them. Here a few pics of the "finished" intake tube. The second picture goes from the 3" elbow to the IC, I have not finished welding it, because I ran out of gas.. lol I need to go and buy more..

This pipes, are were the gates will be, still need to weld them onto the exhaust.



Random pictures of all of the cuts that I have made...



My mustang GT TC




Now here are some pictures when I was assembling the turbos. As you see, on one of the turbos, I had to weld the flange onto it, because when I was trying to get the housing off, I broke 3 heads of the bolts, I tried to drilling them out, getting the housing hot and nothing, so I said screw it and I welded it in I had to disassemble them because I needed to get the oil feed on the top and he drain on the bottom. It is kind of weird how they have it on the turbo coupes.








I still have a lot of things to do guys. I still need to hook up the oil feed and drain, meaning that I need to punch holes on the oil pan, I still need to put both waste gates on, I need to weld in the BOV flange, redo the intake pipe, finish the exhaust, hook up all of the wiring needed, tune the car, then dyno tune it, add a wide band, install the transmission cooler, the O2 bungs... The list can go on and on. I just wanted to share with you what I was doing for the past couple of years...
And also, thanks to all that have helped me, and then again, I proved that everything is possible to do whatever you want, do not let any one say to you that you cant. Bill prove some people wrong as I did the same. I kept every single stock thing on my car. Any comments are welcome. I know that this is not perfect, and I am not saying that it is, but you learn as you go and I have learn tons..
After I am finish with this, I have another car in line and the a truck to do. My next project will be my dads 96, but I am going with a single turbo instead of twins, I will use a 60-1 with a .81 i think or so, but we will see. I need to buy first an exploder engine. So what you guys think eh?

Israel


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #3 of 155 (permalink) Old 03-03-2007, 05:17 PM
Baby Huey

warmaster259's Avatar

Join Date: May 2005
Location: Houston,TX
Age: 30
Posts: 3,210
Teh Sweetness!!!!!!!

Jim

1995 Thunderbird LX: Vortech S-Trim(12psi), Forged PI 4.6, T-45, SCT Tune, Eibach Pro-kit, Magnaflow DI/DO Exhaust, 3.73 TL, and 17" Cobras

1995 Thunderbird SC: Bone Stock
warmaster259 is offline
Sponsored Links
Advertisement

post #4 of 155 (permalink) Old 03-03-2007, 05:53 PM
Resident drifter

slidebird91's Avatar

Join Date: Jun 2006
Location: Davidson, NC
Age: 31
Posts: 649
thats awesome dude! but whens the last time you cleaned your engine compartment?
slidebird91 is offline
post #5 of 155 (permalink) Old 03-03-2007, 06:01 PM
Jedi Master

mn12xr7's Avatar

Join Date: Dec 2002
Location: El Paso, TX
Age: 36
Posts: 3,647
that looks pretty da*n good Isra. Are you actually welding and cutting these pipes on your own???
I haven't been able to do much to mine since i have to start saving for the wedding....yeah i'm getting married....

-Orlando

friends don't let friends drive Chevy
mn12xr7 is offline
post #6 of 155 (permalink) Old 03-03-2007, 06:06 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat
Yeah, it has been a while since I cleaned the engine, and I wont clean it until I'm done with the whole modding.

Orlando, yeah dude, I've been cutting and welding all by my self. Took me a while to get the welder, not cheap you know. You getting married? Awesome, congrats man. Dont forget to invite broda Best of luck..


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #7 of 155 (permalink) Old 03-03-2007, 06:25 PM
Seasoned PostWhore

95xbird's Avatar

Join Date: Apr 2006
Location: Buffalo, NY
Age: 36
Posts: 4,407
Send a message via AIM to 95xbird Send a message via MSN to 95xbird
Wow that is awesome.Maybe you can put some into production when you work out all of the bugs.

04 PI swap,SVO Supercharger 8-9 psi,Alcohol injection,39lbs Cobra injectors,XCal2-Walbro 255 LPH fuel pump,4.10 T-Lok,2003 4R70W built to withstand by RobertP,450hp JMOD,3800 circleD stall,trucool 4739 Trans Cooler,Dynotech 3.5 Driveshaft,70mm T/B,SCP Cold Air Intake,90mm LMAF,JBA headers,Magnaflow Midmount,No cats with 3inch piping,Vogtland 1.6inch drop,Cobra R's and xenon body kit.

Its slow, Really.
LS1 KILLER
1995 svo Tbird. R.I.P.
Parts FOR SALE http://forums.tccoa.com/showthread.php?t=132585
96 Pearl white bird. Awaiting transplants from the 95
95xbird is offline
post #8 of 155 (permalink) Old 03-04-2007, 12:02 AM
Seasoned PostWhore

96bird's Avatar

Join Date: Nov 2002
Location: cleveland, TN
Age: 37
Posts: 2,936
Send a message via AIM to 96bird
Nice man. I'm anxious to see how it turns out.

Russ

JL's chassis braces, ST springs w/ 1 coil cut in rear (27.2" F 28" R), Airlift airbags (5 psi), Bilstein shocks, Cobra brakes F & R, ROH RT 17x9s, 255/285s Khumo Ecsta MX tires, 2.5" dual exhaust w/borla mufflers, 1 3/8 f & r bars, remote filter,subframe buildup, Al differential bushings, J-modded '02 tranny, 9.5" DD stall, 30K Hayden cooler, PI intake, 02 GT MAF, XCal 2

Want to talk/hangout with MN12 owners from GA? Go here.
96bird is offline
post #9 of 155 (permalink) Old 03-04-2007, 04:54 AM
Seasoned PostWhore

twin turbo 281's Avatar

Join Date: Oct 2006
Location: Auburn WA
Age: 35
Posts: 2,631
Send a message via MSN to twin turbo 281
awesome mann! Great to see more and more turbo mn12s lol start smoking some hoped up stangs and maros! Is your car lowered any? Are you planning to build support brackets for the turbos? Awesome job looks good

2x95 cougars to the scapper
97 F250 psd 4x4 dd twin charged
48 Gmc Detroit diesel 453t twin sticked
45 Chevy 451 detroit twin sticked
51 Mack A51T restoration
twin turbo 281 is offline
post #10 of 155 (permalink) Old 03-04-2007, 09:57 AM
Seasoned PostWhore

miller1995's Avatar

Join Date: Nov 2002
Location: Orland Park, IL
Posts: 2,806
Send a message via AIM to miller1995
Few questions and comments:

Why does the tubing neck down after the intercooler than back uo before the MAF? That just causes lost velocity and a restriction.

Do you really want to have the turbo that close to the oil filter?

Will you be able to fit an air filter on there?

You complained about speed bumps but the routing of the tubing will still reduce the ground clearance by 3-5 inches. I have personally bottomed out on the front of the K-member without doing anything extreme over speedbumps. This point ir ight where you are routing tubes to the intercooler. In you second post the first picture clearly shows scrape marks on your k-member at the same spot and the tubes are running below this point by what looks to be around 4 inches.

-Miller

Pearl 97 LX Sport - Purchased Feb. 09 - 5x4.5 Bolt patern, Cobra Brakes, Voghtland spings, Silver FR500's, 3.73's, MMX drive shaft...more to come
Denim Blue 97 Cougar Sport - Purchased Nov. 14 - 22k miles and now the daily driver, staying stock
Purple 95LX Supercharged 4.6PI Parting Out
Black '11 VW Jetta Sportwagen TDI 6-speed - Fun but efficient
SOLDWhite '03 Crown Vic P71
Pearl 96 Lx - Parted and gone, some parts still available
SOLD2006 Mazdaspeed6
SOLD1998 Escort ZX2
RIPBlue 97 LX - MANY PARTS STILL AVAILABLE
RIP My Black 95 LX 4.6
miller1995 is offline
post #11 of 155 (permalink) Old 03-04-2007, 10:16 AM
Newbie

Join Date: Jan 2007
Location: Rochester, NY
Posts: 15
Send a message via AIM to stangman232v6
thats cool...keep it up
stangman232v6 is offline
post #12 of 155 (permalink) Old 03-04-2007, 11:29 AM
PostWhore

David Neibert's Avatar

Join Date: Jan 2004
Location: St. Charles MO
Posts: 1,324
Looks like it's coming along nicely.

David

1991 SC AOD 4.2..2.3 Whipple..........10.910 @ 125.61
2016 SRT Challenger Hellcat..................707HP/650TQ
David Neibert is offline
post #13 of 155 (permalink) Old 03-04-2007, 02:08 PM
leet sauce

eg0r's Avatar

Join Date: Sep 2005
Location: Canada, BC
Age: 34
Posts: 1,841
wow that looks awesome
keep up good work dude
eg0r is offline
post #14 of 155 (permalink) Old 03-04-2007, 02:22 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat
Quote:
Originally Posted by miller1995 View Post
Few questions and comments:

Why does the tubing neck down after the intercooler than back uo before the MAF? That just causes lost velocity and a restriction.
Well, you need to send the air that is beeing produced by the turbos into the IC to "cool" the air and then to he engine. I had to the that neck because the passenger side turbo is on the way. I hope I answered that pat correctly.


Quote:
Originally Posted by miller1995
Do you really want to have the turbo that close to the oil filter?
Yeah, why not. I could use a turbo blanket to cover the exhaust housing and make another blanket for the oil filter or I could just simple relocate the filter, no problem with that.

Quote:
Originally Posted by miller1995
Will you be able to fit an air filter on there?
I still have not decided on how to do that to tell you the truth.. That would be my least of my worries. But still, I still need to find a way to put some sort of filter. There are many people that uses filter screen instead of an air filter.

Quote:
Originally Posted by miller1995
You complained about speed bumps but the routing of the tubing will still reduce the ground clearance by 3-5 inches. I have personally bottomed out on the front of the K-member without doing anything extreme over speedbumps. This point ir ight where you are routing tubes to the intercooler. In you second post the first picture clearly shows scrape marks on your k-member at the same spot and the tubes are running below this point by what looks to be around 4 inches.
-Miller
My car will not be lowered, at least not as of now. I am very aware that my clearance will be reduced, so next time I go over speed bumps, I will do so really slowly. The way I have it setup now, is not definitive. After I am done with the whole project and "test" it out, I will build some log headers like I stated it on top. Changing to log header will be easier, turbos will get hotter air and faster. This is for now because I do really want to know how this works. Once I build the headers, I bet that many problems that I will maybe have, can and will be solve.

Thanks for the interest guys. Next week, I will go buy some more gas, and weld on the flanges for the gates and mount them. Also, hopefully, I will be able able to weld the 3 O2 bungs (2 for the cats and 1 for the wideband). I know this is not perfect at all, but I am happy with I have accomplished. I'll keep you all posted.

Israel


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #15 of 155 (permalink) Old 03-04-2007, 06:00 PM
Seasoned PostWhore

twin turbo 281's Avatar

Join Date: Oct 2006
Location: Auburn WA
Age: 35
Posts: 2,631
Send a message via MSN to twin turbo 281
the ground clearance shouldnt be an issue as long as this car is driven very carefull.70 mph passed a wavy enough road will get the pipes touching. Is this car going to be driven everyday? ALso as dirty as the engine compartment looks you most likely will want air filters. I like the turbo placement gives is a sleeper effect. Are you going to run a pump to return the oil or gravity feed? Is there any movement of the turbos due to the 2 bolt flanges? Seeems like they would need suport from some bracing. oh and are you going to place the 02s in the feed pipes or exit pipes. Looks like they would be best in the feed right after the manifold

2x95 cougars to the scapper
97 F250 psd 4x4 dd twin charged
48 Gmc Detroit diesel 453t twin sticked
45 Chevy 451 detroit twin sticked
51 Mack A51T restoration
twin turbo 281 is offline
post #16 of 155 (permalink) Old 03-04-2007, 06:08 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat
Quote:
Originally Posted by twin turbo 281 View Post
the ground clearance shouldnt be an issue as long as this car is driven very carefull.70 mph passed a wavy enough road will get the pipes touching. Is this car going to be driven everyday? ALso as dirty as the engine compartment looks you most likely will want air filters. I like the turbo placement gives is a sleeper effect. Are you going to run a pump to return the oil or gravity feed? Is there any movement of the turbos due to the 2 bolt flanges? Seeems like they would need suport from some bracing. oh and are you going to place the 02s in the feed pipes or exit pipes. Looks like they would be best in the feed right after the manifold

Yeah, it will be driven every day. Like I said, I will probably put some filter screen on the turbos.

I will use gravity for the oil to return, to much of a hassle to put the pump.

I do not know about the movement, but I will probably come up with some bracing for the turbos. Also, what two bolt flanges? If you talk about the T3 flange, they are 4 bolts...

Yes, I will place the O2 bungs after the manifold and then another bung close to any turbo for the wide band signal.


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #17 of 155 (permalink) Old 03-05-2007, 03:25 PM
PostWhore

David Neibert's Avatar

Join Date: Jan 2004
Location: St. Charles MO
Posts: 1,324
If you had a dual inlet/ single outlet intercooler something like this, it would sure make plumbing the cold side pipes a lot easier.

http://www.turbochargedpower.com/ima...cooler%203.jpg

David

1991 SC AOD 4.2..2.3 Whipple..........10.910 @ 125.61
2016 SRT Challenger Hellcat..................707HP/650TQ
David Neibert is offline
post #18 of 155 (permalink) Old 03-05-2007, 04:16 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat
That would have been nice David, but unffortunate, I will have to do it the hard way. I will have to send the passenger side pipe all the way to the driver and just use the passenger side out to go directly to the engine... Oh well, more work and more pipe to work with.


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #19 of 155 (permalink) Old 03-05-2007, 04:54 PM
0s1r1s

andries's Avatar

Join Date: Jan 2007
Location: Salt Lake City
Age: 37
Posts: 224
Send a message via MSN to andries
I apoligize for the lack of technical ability i could shed on this subject...but your idea is awesome...inspires people to think outside the box!

Green:http://www.cardomain.com/ride/2571708 -Performace Car/Weekend Driver
1997 LX 4.6L V8 - Alpine Green - EEC Flashed - MN-12 to SN-95 Bolt Circle Change - Cobra Rims - Cobra Brakes - 02 GT MAFS/Intake Tube/Airbox/K&N - 2.5" Dual-Exhaust from Exhaust manifolds - PI parts being gathered![/FONT]
andries is offline
post #20 of 155 (permalink) Old 03-05-2007, 05:23 PM
3rd Gear Poster

Marl's Avatar

Join Date: Jan 2006
Location: Indiana
Age: 37
Posts: 153
Send a message via AIM to Marl Send a message via Yahoo to Marl
That is a very nice setup! Just for fun I am wondering how much coin you've invested in this so far. Keep us updated!!

1995 4.6L XR7 Dual Guage Pod with Oil and Temp., 255/60R15 Yokohama Avid S/T's, Screamin' Demon Coil's with Live Wires, K & N, modified stock oil pressure gauge, air silencer removed, stock air box, trans and tune by Darrin, TC by Dirtydog

Sometimes when I reflect back on all the beer I drink I feel ashamed. Then I look into the glass and think about the workers in the brewery and all of their hopes and dreams. If I didn't drink this beer, they might be out of work and their dreams would be shattered. Then I say to myself, 'It is better that I drink this beer and let their dreams come true than to be selfish and worry about my liver.'
Spend your money on your ride and not your girl. It'll last longer and fewer people have been in it!
Marl is offline
post #21 of 155 (permalink) Old 03-05-2007, 08:39 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat
Quote:
Originally Posted by Marl View Post
That is a very nice setup! Just for fun I am wondering how much coin you've invested in this so far. Keep us updated!!
I do not know specifically... I would have to dig up all of the bills and add them.. But I know it is a lot and I still need to buy more parts yet..


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #22 of 155 (permalink) Old 03-09-2007, 07:56 PM
Boost Happy

Jurgen's Avatar

Join Date: Jul 2002
Location: Livonia MI
Age: 36
Posts: 1,971
Send a message via AIM to Jurgen
Good job , looks nice

1994 Ford Thunderbird
2002 Corvette Z06
Yeah I got a few mods.And Some More
http://www.cardomain.com/ride/239875
.
Jurgen is offline
post #23 of 155 (permalink) Old 03-10-2007, 11:54 AM
Astrophysicist / PostWhore

66dvlbrd68's Avatar

Join Date: Jul 2002
Location: Albuquerque, NM (visit NM!)
Age: 37
Posts: 2,028
Interesting work. Where'd you get all them ideas from? :p

Mike | RSW | THP | MF | SRTConnection |

1996 Ford Thunderbird LX V8 + 1992 Ford Mustang hatchback + 1989 Ford Mustang notchback = no where else to park at my house!
66dvlbrd68 is offline
post #24 of 155 (permalink) Old 03-10-2007, 08:17 PM Thread Starter
Seasoned PostWhore

Tx_Cat's Avatar

Join Date: Jul 2002
Location: El Paso, Tx
Age: 37
Posts: 3,391
Send a message via AIM to Tx_Cat Send a message via MSN to Tx_Cat Send a message via Yahoo to Tx_Cat
Quote:
Originally Posted by 66dvlbrd68 View Post
Interesting work. Where'd you get all them ideas from? :p

Hehehehehe... You tell me Mike.. I told you dude, it was only a matter of time man.. I'm doing some small but necesary modifications to it. Hopefully by the middle of the next week, I'll add some inches to the downpipes and weld on the flanges for the external gates..


PhotobucketNitrous and boost go together like peanut butter and jellyPhotobucket


Nuttin make you feel more like a man in a Thunder Cougar Falcon Bird

Tx_Cat is offline
post #25 of 155 (permalink) Old 03-11-2007, 01:27 AM
Astrophysicist / PostWhore

66dvlbrd68's Avatar

Join Date: Jul 2002
Location: Albuquerque, NM (visit NM!)
Age: 37
Posts: 2,028
Quote:
Originally Posted by Tx_Cat View Post
Hehehehehe... You tell me Mike.. I told you dude, it was only a matter of time man.. I'm doing some small but necesary modifications to it. Hopefully by the middle of the next week, I'll add some inches to the downpipes and weld on the flanges for the external gates..
I'll tells ya where. :p
Good to see it happen. We have much to discuss.

Mike | RSW | THP | MF | SRTConnection |

1996 Ford Thunderbird LX V8 + 1992 Ford Mustang hatchback + 1989 Ford Mustang notchback = no where else to park at my house!
66dvlbrd68 is offline
post #26 of 155 (permalink) Old 03-13-2007, 03:16 PM
TCCoA Preferred Vendor

Join Date: Dec 2002
Location: Miami
Age: 40
Posts: 124
Send a message via AIM to blk mk8
sweet build up... nothing like a good old DYI turbo build to practice welding on.
i plan on doing something similar soon we just finished a march one with a similar setup but single. i am going to take my eaton off and go turbo as well.

OWNER of Accelerated Race Technoligies

www.speedfreak.cc
blk mk8 is offline
post #27 of 155 (permalink) Old 03-14-2007, 10:29 AM
3rd Gear Poster

Join Date: Aug 2006
Location: lousisiana
Posts: 150
i am always impressed to see someone try the undoable. would like to see how it ends up.
sleeper bird is offline
post #28 of 155 (permalink) Old 03-24-2007, 01:14 PM
1st Gear Poster

Join Date: Nov 2006
Location: Long Island, NY
Posts: 51
Hi Tx_Cat, awesome project, I really like it. I have a few questions and maybe a suggestion. You mentioned you still have to hook up the oil feed and return lines. I really want to know how you'll tackle the oil feed lines to the turbos, if possible while doing it take as many pictures as possible of that particular install. Also will your oil return line be pressure fed back into the oil pan how? And for suggestions, that turbo exhaust pipe running close to the oil filter will need some heat wrapping and you'll probably want to wrap the oil filter each time you change it with some heat deflection material cause it will most likely melt. Also your wastegates? Will you just have dump tubes attached to their exhaust or will you re-rout that back into the exhaust of the car?
f1seb is offline
post #29 of 155 (permalink) Old 04-03-2007, 09:09 PM
Hittin' Switches

musto's Avatar

Join Date: Jan 2003
Location: Mississippi
Age: 35
Posts: 1,484
Send a message via AIM to musto
woa, thats nice.
musto is offline
post #30 of 155 (permalink) Old 04-21-2007, 06:22 PM
1st Gear Poster

Join Date: Feb 2007
Location: victorville
Age: 38
Posts: 42
MORE PICS BAD ASS LOOKING SETUP. I just sold my twin turboed montecarlo
turbo86xr7 is offline
