Questions on roll cages

Q: If the goal is to make a drag weapon (as opposed to a daily driver), how built up is your roll cage. At the ETs you guys are running, do you already have a full cage yet?
If so, is the cage tied to your front/rear suspension points?

Here's an example of a rollcage that's almost a "car within a car". I especially like the plates that tie the shell whenever it comes close to the roll cage structure.
http://www.millerwelds.com/resources...article96.html


-G

My TCCOA iTrader Rating: (44 / 100% w/ 50+ transactions)

24 Hours of Lemons 2017 Sear Pointless Organizer's Choice
2018 Upgrade: does your TBIRD make Fritos? Mine does
http://goo.gl/csaet4
S4gunn is offline
Sponsored Links
Advertisement

post #2 of 58 (permalink) Old 12-26-2012, 11:44 AM
PostSlut

_95badbird's Avatar

Join Date: Jul 2004
Location: Spring Texas
Age: 39
Posts: 13,597
I have a roll bar, and my points 7 and 8 are tied into my home made SFC's.




other than that, my car is one body now....all the unibody seams were welded.


Nick......................I'm back!!!
May you fly low and fast
rest in peace JL
_95badbird is offline
post #3 of 58 (permalink) Old 12-26-2012, 01:21 PM
West Virginia Chapter Director /
MA Drag Race Team Coordinator

1MTNCAT's Avatar

Join Date: Jul 2002
Location: Hedgesville, WV
Age: 61
Posts: 2,643
Garage
A bar is all you need till 9.9's. Then a cage is required!

Most all of the legal drag racing cars on here presently use bars. Once into that 9 second zone then a cage is a must legally.

Steve
1996 Cougar XR7 Special Edition (Street & Strip)
"There's a bad, built NA 4.6L COMING Spring-Summer 2018"

Elite member of the Halfshaft snapping, Auburn eating, Tranny crunching, Piston Melting, Tire lifting, 500+ lb ft Torque Club.

Cougar ET-Stock 4.6 shortblock/Stock PI headswap Bullitt NA 12.94 @ 105+
Nitrous 11.75 @ 114 MPH

2008 Ford Powerstroke 6.4 TT F250 4X4 Supercrew: 12.82 @ 105 MPH

"IN MEMORY OF MY FRIENDS JOEL BENDER 1979-2006", JOHNNY LANGTON 1975-2011, and MICHAEL VIVERETTE 1953-2013"
1MTNCAT is offline
Sponsored Links
Advertisement

post #4 of 58 (permalink) Old 12-27-2012, 03:18 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 40
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
Quote:
Originally Posted by _95badbird View Post
I have a roll bar, and my points 7 and 8 are tied into my home made SFC's.


other than that, my car is one body now....all the unibody seams were welded.

did you use mild steel or chromoly?

that's a lot of work to weld all the seams. If I was stripping my whole car, I'd likely do the same. But I'm not, lol.
guitar maestro is offline
post #5 of 58 (permalink) Old 12-27-2012, 03:27 PM
PostSlut

_95badbird's Avatar

Join Date: Jul 2004
Location: Spring Texas
Age: 39
Posts: 13,597
Quote:
Originally Posted by guitar maestro View Post
did you use mild steel or chromoly?

that's a lot of work to weld all the seams. If I was stripping my whole car, I'd likely do the same. But I'm not, lol.
MS.

I did not have the funds for a tig, and already had 2 migs.

Have you decided to remove any sound deadening?

oh, and I welded the bottom of the car too!


Nick......................I'm back!!!
May you fly low and fast
rest in peace JL
_95badbird is offline
post #6 of 58 (permalink) Old 12-27-2012, 03:29 PM
Beer and Cheese

OxmanWI's Avatar

Join Date: Nov 2003
Location: Milwaukee, WI
Posts: 7,386
Garage
Quote:
Originally Posted by 1MTNCAT View Post
A bar is all you need till 9.9's. Then a cage is required!

Most all of the legal drag racing cars on here presently use bars. Once into that 9 second zone then a cage is a must legally.
What is the difference between a "Bar" and a "Cage"?

For the "Bar" the pipe is following the inside driver B-post, roof and then passenger B-post? And obviously the cage is what Nick has?

Thanks,

God Bless the men & women who have served and serving to keep us free
OxmanWI is offline
post #7 of 58 (permalink) Old 12-27-2012, 03:31 PM
PostSlut

_95badbird's Avatar

Join Date: Jul 2004
Location: Spring Texas
Age: 39
Posts: 13,597
Quote:
Originally Posted by OxmanWI View Post
What is the difference between a "Bar" and a "Cage"?

For the "Bar" the pipe is following the inside driver B-post, roof and then passenger B-post? And obviously the cage is what Nick has?

Thanks,
a roll bar is 8 ppints or less.
a roll cage is 10 or more.

I have a roll bar.

funny you ask, as I am having this same discussion on a local forum. lol

Nick......................I'm back!!!
May you fly low and fast
rest in peace JL
_95badbird is offline
post #8 of 58 (permalink) Old 12-27-2012, 03:34 PM
Beer and Cheese

OxmanWI's Avatar

Join Date: Nov 2003
Location: Milwaukee, WI
Posts: 7,386
Garage
Wow that's a lot of bar. You have to have a roll bar for times 11.50 and under correct?

God Bless the men & women who have served and serving to keep us free
OxmanWI is offline
post #9 of 58 (permalink) Old 12-27-2012, 03:47 PM
PostSlut

_95badbird's Avatar

Join Date: Jul 2004
Location: Spring Texas
Age: 39
Posts: 13,597
Quote:
Originally Posted by OxmanWI View Post
Wow that's a lot of bar. You have to have a roll bar for times 11.50 and under correct?
correct.
11.49 - 9.99
and I believe there is a limit on mph as well, but I can't remember without looking it up.

Nick......................I'm back!!!
May you fly low and fast
rest in peace JL
_95badbird is offline
post #10 of 58 (permalink) Old 12-27-2012, 03:52 PM
Beer and Cheese

OxmanWI's Avatar

Join Date: Nov 2003
Location: Milwaukee, WI
Posts: 7,386
Garage
I can't see having a roll bar in my car. I like the interior the way it is. I'll have to keep it slow, but on the other hand if I had a rockin drag car I'd cage it out like a jail cell. Thanks for the 101!

God Bless the men & women who have served and serving to keep us free
OxmanWI is offline
post #11 of 58 (permalink) Old 12-27-2012, 04:02 PM
PostSlut

_95badbird's Avatar

Join Date: Jul 2004
Location: Spring Texas
Age: 39
Posts: 13,597
what??? this doesn't look cozy to you??



anytime my friend.



Nick......................I'm back!!!
May you fly low and fast
rest in peace JL
_95badbird is offline
post #12 of 58 (permalink) Old 12-27-2012, 04:42 PM
Seasoned PostWhore

bowez's Avatar

Join Date: Aug 2002
Location: NEAR
Posts: 2,472
Quote:
Originally Posted by 1MTNCAT View Post
A bar is all you need till 9.9's. Then a cage is required!

Most all of the legal drag racing cars on here presently use bars. Once into that 9 second zone then a cage is a must legally.
I know its being a smart arse but...

At my local track the only requirement is a helmet, but then again its the only wildcat track left--no NHRA.

If all else fails get a bigger hammer!

93 SC Tbird
MPII w/ Plenum,90mm MAF, 85mm TB, 40# Injectors, 255 lph FP, Double IC w/fan, SCT Chip (Tuned by Jerry),3/4" Raised Top, F52-TT TC, SilverFox AOD 550, SPT-R VB
96 1/2 XR7 Sold and Salvaged
93 5.0 Tbird
bowez is offline
post #13 of 58 (permalink) Old 12-27-2012, 04:46 PM
PostSlut

_95badbird's Avatar

Join Date: Jul 2004
Location: Spring Texas
Age: 39
Posts: 13,597
Quote:
Originally Posted by bowez View Post
I know its being a smart arse but...

At my local track the only requirement is a helmet, but then again its the only wildcat track left--no NHRA.
the tech is getting lax at my local track as well.
we always joke about that your car can be on fire and still pass tech.

Nick......................I'm back!!!
May you fly low and fast
rest in peace JL
_95badbird is offline
post #14 of 58 (permalink) Old 12-27-2012, 04:51 PM
6th Gear Poster

Join Date: Jun 2003
Location: NOVA
Age: 42
Posts: 617
A bar isn't too bad as long as you don't need to get in back. And it stiffened the car up alot on mine. Riding with the firm ride off now is like riding with the firm ride on before the bar.




1995 SC------------------1994 SC----------------1993 LX
Black----------------------Red----------------------Grey
3.8-------------------------3.8w/bent rod---------5.0
4R70W--------------------M5R2--------------------AOD
2.4 AR in works---------2.0 Auto Rotor---------N/A
24psi----------------------15+----------------------none yet
450RWHP----------------322RWHP -------------who knows/who cares
[email protected]@[email protected]
BLOWN38 is offline
post #15 of 58 (permalink) Old 12-27-2012, 05:29 PM
Seasoned PostWhore

tbirdtess's Avatar

Join Date: Aug 2005
Location: Western New York
Age: 53
Posts: 2,542
Roll cage



My cage is required.

I attached it to a 2x3 I ran from front to back.


Paul [email protected]
1990 Thunderbird Circle Track Street Stock
351W 2bbl.
C-4 Auto
3.90 open rear
tbirdtess is offline
post #16 of 58 (permalink) Old 12-27-2012, 06:55 PM
West Virginia Chapter Director /
MA Drag Race Team Coordinator

1MTNCAT's Avatar

Join Date: Jul 2002
Location: Hedgesville, WV
Age: 61
Posts: 2,643
Garage
Quote:
Originally Posted by tbirdtess View Post


My cage is required.

I attached it to a 2x3 I ran from front to back.

I expect it is in your line of motorsports. Most cars on here do not need nor do they require a cage. Thats all I was saying. Some refer to a bar as a cage, but they are not the same.

There may be some soon entering that zone soon though. Regardless bar or cage, it's all for the protection of the driver and safety should be a priority.

Steve
1996 Cougar XR7 Special Edition (Street & Strip)
"There's a bad, built NA 4.6L COMING Spring-Summer 2018"

Elite member of the Halfshaft snapping, Auburn eating, Tranny crunching, Piston Melting, Tire lifting, 500+ lb ft Torque Club.

Cougar ET-Stock 4.6 shortblock/Stock PI headswap Bullitt NA 12.94 @ 105+
Nitrous 11.75 @ 114 MPH

2008 Ford Powerstroke 6.4 TT F250 4X4 Supercrew: 12.82 @ 105 MPH

"IN MEMORY OF MY FRIENDS JOEL BENDER 1979-2006", JOHNNY LANGTON 1975-2011, and MICHAEL VIVERETTE 1953-2013"
1MTNCAT is offline
post #17 of 58 (permalink) Old 12-27-2012, 07:04 PM
Seasoned PostWhore

tbirdtess's Avatar

Join Date: Aug 2005
Location: Western New York
Age: 53
Posts: 2,542
Quote:
Originally Posted by 1MTNCAT View Post
There may be some soon entering that zone soon though. Regardless bar or cage, it's all for the protection of the driver and safety should be a priority.
YES, YES!!!

Safety first. You never know what will happen!


Paul [email protected]
1990 Thunderbird Circle Track Street Stock
351W 2bbl.
C-4 Auto
3.90 open rear
tbirdtess is offline
post #18 of 58 (permalink) Old 12-27-2012, 07:42 PM
5th Gear Poster

nickleman60's Avatar

Join Date: Apr 2005
Location: va. beach va.
Age: 59
Posts: 366

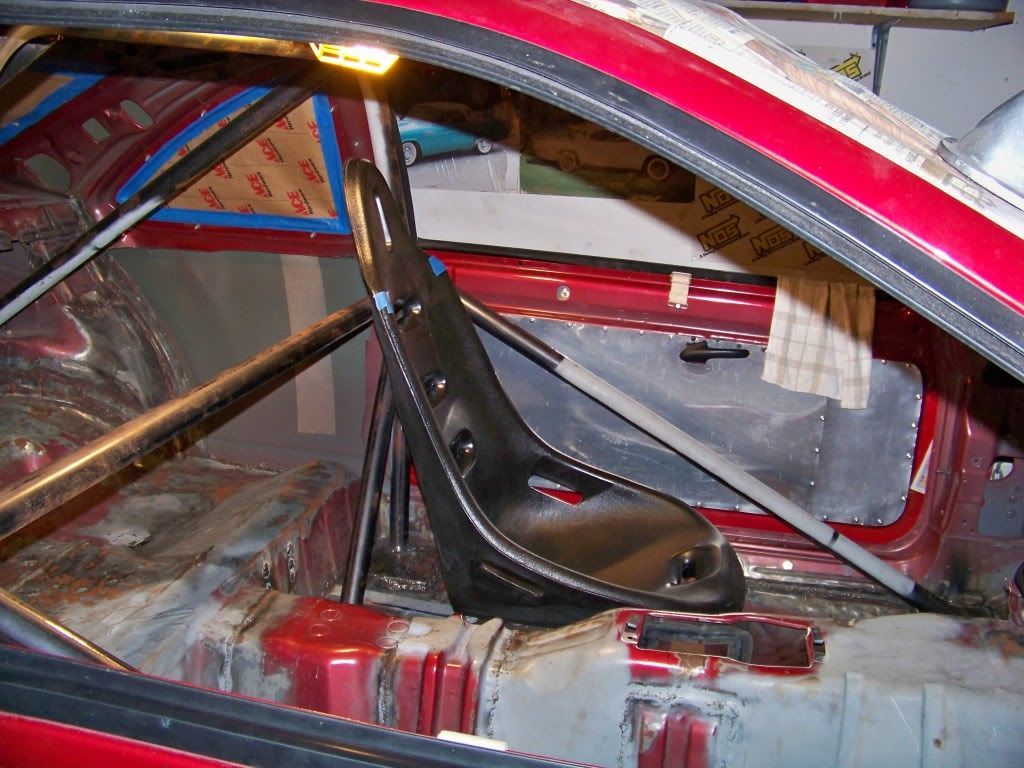

Here's mine, the sidebars swing out and are removable. I only have them in at the track.


94 SC AUTO - $$$$ Pit
nickleman60 is offline
post #19 of 58 (permalink) Old 12-27-2012, 08:05 PM
Seasoned PostWhore

VicRattlehead's Avatar

Join Date: Jul 2002
Location: RT66 Raceway Channahon IL
Posts: 6,213
Quote:
Originally Posted by _95badbird View Post
a roll bar is 8 ppints or less.
a roll cage is 10 or more.

I have a roll bar.

funny you ask, as I am having this same discussion on a local forum. lol
Cage has a halo bar u can do a 10 pt without a halo and its still just a bar.

CMP Drag Racing
best ET: 12.410 -- best MPH: 107.61
NMRA MM7270 -- NMCA EFI/? ????
Thank you to the CMP Drag Racing team: Tony, Doug, Maryann, Dale, Paul and Chris.

VicRattlehead is offline
post #20 of 58 (permalink) Old 12-28-2012, 12:21 AM
3rd Gear Poster

97Tturd's Avatar

Join Date: Feb 2012
Location: Plainfield, IL
Posts: 184
Quote:
Originally Posted by BLOWN38 View Post

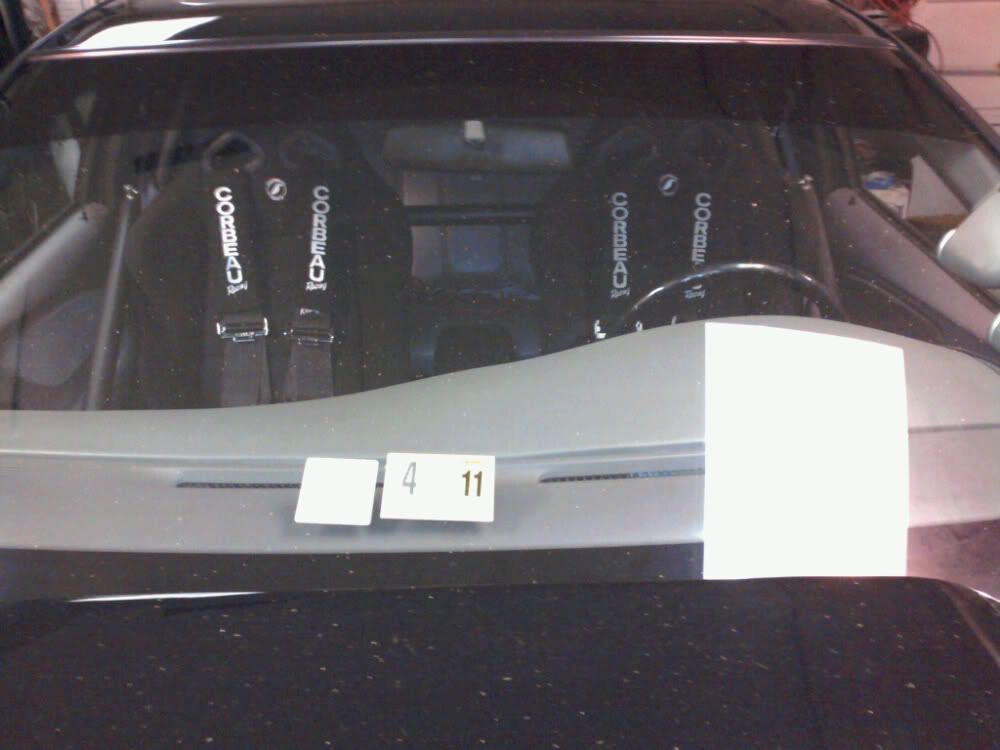

I cant wait till I get my corbeau seats in!

1997 Thunderbird LX
2003 Mach 1
2002 Escape
97Tturd is offline
post #21 of 58 (permalink) Old 12-28-2012, 08:55 AM
6th Gear Poster

Join Date: Jun 2003
Location: NOVA
Age: 42
Posts: 617
Quote:
Originally Posted by 97Tturd View Post
I cant wait till I get my corbeau seats in!
For as firm as they are, they are comfy.

1995 SC------------------1994 SC----------------1993 LX
Black----------------------Red----------------------Grey
3.8-------------------------3.8w/bent rod---------5.0
4R70W--------------------M5R2--------------------AOD
2.4 AR in works---------2.0 Auto Rotor---------N/A
24psi----------------------15+----------------------none yet
450RWHP----------------322RWHP -------------who knows/who cares
[email protected]@[email protected]
BLOWN38 is offline
post #22 of 58 (permalink) Old 12-28-2012, 01:24 PM
3rd Gear Poster

97Tturd's Avatar

Join Date: Feb 2012
Location: Plainfield, IL
Posts: 184
Those look like cr-1's?

1997 Thunderbird LX
2003 Mach 1
2002 Escape
97Tturd is offline
post #23 of 58 (permalink) Old 12-28-2012, 02:42 PM
6th Gear Poster

Join Date: Jun 2003
Location: NOVA
Age: 42
Posts: 617
Quote:
Originally Posted by 97Tturd View Post
Those look like cr-1's?
I'm not even sure. I bought them used that were never used.

1995 SC------------------1994 SC----------------1993 LX
Black----------------------Red----------------------Grey
3.8-------------------------3.8w/bent rod---------5.0
4R70W--------------------M5R2--------------------AOD
2.4 AR in works---------2.0 Auto Rotor---------N/A
24psi----------------------15+----------------------none yet
450RWHP----------------322RWHP -------------who knows/who cares
[email protected]@[email protected]
BLOWN38 is offline
post #24 of 58 (permalink) Old 12-28-2012, 04:44 PM
50 years of Mercury Cougar 1967/2017

r429460's Avatar

Join Date: Jun 2007
Location: Davie, Fla.
Posts: 1,249
You know what else?
Per nhra all 2008 and newer cars don't
Need a rollbar until 9.99 or 135 mph.
:P

Quickest N/A Modular MN12.
1995 XR7-11.77 @ 113.29 (3537 lbs.)
01/31/18 PBIR
THE danner EATER

Last edited by r429460; 01-01-2013 at 09:25 AM.
r429460 is offline
post #25 of 58 (permalink) Old 12-28-2012, 05:04 PM
Seasoned PostWhore

Join Date: Sep 2002
Location: carthage
Age: 38
Posts: 2,435
Send a message via AIM to RobertP
Exactly we'll said rick

www.robstireandauto.com for all your car needs and parts
95 bird corn powered 735rwhp and 580 tq
86 bird vortech s trim
10.75 @128.38
95 bird - Vortech t trim
9.98 worlds fastest IRS 4.6 thunderbird
1/8 [email protected]
10.11 @ 139.19 best mph
1.47 best 60ft if I can get a full pass with this 60ftt
All made possible with Braincoating'™s ported manifolds
RobertP is offline
post #26 of 58 (permalink) Old 12-28-2012, 05:28 PM
Road warrior extrodinaire

Super Moderator

Trunk Monkey's Avatar

Join Date: Feb 2006
Location: Home Sweet Home: Charlotte, NC
Posts: 11,783
Garage
Quote:
Originally Posted by r429460 View Post
You know what else?
Per NHRA all 2008 and newer card don't
Need a rollbar until 9.99 or 135 mph.
:P
Quote:
Originally Posted by RobertP View Post
Exactly we'll said rick
Yea, Rob. Just keep it under 135 MPH and you'll be fine.

Hey when you do get that rocket back to the track next year let me know, I want to get some video of it. Hopefully I'll be around ....

Mods? Yea, I got mods ...
Air silencer delete, warp drive, dilithium crystals, flux capacitor, Slingshot Rubber band power adder, Moonshine & Gas, Leaf Blower Supercharger, Hamster Wheel & Hamster, Energizer Bunny generating 1.21 gigawatts, Mr. Fusion® Home Energy Reactor, hover conversion and a sextant celestial navigation system (The original GPS)
Best 1/4: 1,320 nanoseconds @ 670,616,629.2 miles per hour

"There isn't that much difference anymore between spacecraft, aircraft and modern automobiles..." - Keith Henry, NASA's Langley Research Center
See a list of my real mods and pictures of my car HERE. The true performance of my car was made possible by the Carolinas Crew Chief, RobertP at Rob's Tire & Auto

Last edited by Trunk Monkey; 12-29-2012 at 09:11 AM.
Trunk Monkey is offline
post #27 of 58 (permalink) Old 12-28-2012, 06:19 PM
6th Gear Poster

Join Date: Jun 2003
Location: NOVA
Age: 42
Posts: 617
Quote:
Originally Posted by r429460 View Post
You know what else?
Per NHRA all 2008 and newer card don't
Need a rollbar until 9.99 or 135 mph.
:P
Completely bone stock cars down to the tires tho.

1995 SC------------------1994 SC----------------1993 LX
Black----------------------Red----------------------Grey
3.8-------------------------3.8w/bent rod---------5.0
4R70W--------------------M5R2--------------------AOD
2.4 AR in works---------2.0 Auto Rotor---------N/A
24psi----------------------15+----------------------none yet
450RWHP----------------322RWHP -------------who knows/who cares
[email protected]@[email protected]

Last edited by Trunk Monkey; 12-29-2012 at 09:12 AM. Reason: Fix quote typo
BLOWN38 is offline
post #28 of 58 (permalink) Old 12-31-2012, 07:47 PM
Seasoned PostWhore

tbirdtess's Avatar

Join Date: Aug 2005
Location: Western New York
Age: 53
Posts: 2,542
role cage



So I have yet to see a role cage in these pictures.

You can see some of my cage in the beginning of this clip.
http://s180.beta.photobucket.com/use...Y0159.mp4.html

Note the door bars & the front hoop.
rear cross.




Paul [email protected]
1990 Thunderbird Circle Track Street Stock
351W 2bbl.
C-4 Auto
3.90 open rear
tbirdtess is offline
post #29 of 58 (permalink) Old 01-01-2013, 01:40 AM
Humble MN12 Genius
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Posts: 16,645
Garage
Send a message via Yahoo to XR7-4.6
Now that's a real cage!

I like the battery location too

-Matt
XR7-4.6 is offline
post #30 of 58 (permalink) Old 01-01-2013, 09:33 AM
West Virginia Chapter Director /
MA Drag Race Team Coordinator

1MTNCAT's Avatar

Join Date: Jul 2002
Location: Hedgesville, WV
Age: 61
Posts: 2,643
Garage
Quote:
Originally Posted by Trunk Monkey View Post
Yea, Rob. Just keep it under 135 MPH and you'll be fine.

Hey when you do get that rocket back to the track next year let me know, I want to get some video of it. Hopefully I'll be around ....
Here we go again!. Either NHRA or IHRA require anyone running under 11.50 or 11.00 dependant to have a required Roll Bar regardless! Lap belts and helmets and fire jacket are also required among other things.

Minimum of Bar/Cage is required with either sanctioning body once you start exceeding the 135 MPH barrier.

I know you all skirt the safety issues but this is what the facts are to be legal.

The new NHRA rule is for Sedans from 2008 up that are unaltered in any way to run down to those numbers. Of course, like everyone else that is at the discretion of the track personnel doing the inspecting which at IRHA that I've seen are sometimes very lax.

That being said I'm not getting into any safety issues with the cars. BUT, ROB and YOU BOTH know what should be done concerning his cars. Nuff said.

You won't be doing that but once at any of the tracks up here for sure.

Steve
1996 Cougar XR7 Special Edition (Street & Strip)
"There's a bad, built NA 4.6L COMING Spring-Summer 2018"

Elite member of the Halfshaft snapping, Auburn eating, Tranny crunching, Piston Melting, Tire lifting, 500+ lb ft Torque Club.

Cougar ET-Stock 4.6 shortblock/Stock PI headswap Bullitt NA 12.94 @ 105+
Nitrous 11.75 @ 114 MPH

2008 Ford Powerstroke 6.4 TT F250 4X4 Supercrew: 12.82 @ 105 MPH

"IN MEMORY OF MY FRIENDS JOEL BENDER 1979-2006", JOHNNY LANGTON 1975-2011, and MICHAEL VIVERETTE 1953-2013"
1MTNCAT is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
