oil pan question...

ive searched around (here and google)...

i have a 1996 cougar 4.6 romeo block and windsor P.I. heads from a 5.4 (if that matters)... does anyone know for sure if you can jack up and remove the oil pan while it is still in the car? or does the motor have to come out for it to clear the cross member?

my right hand timing chain guides have gave up the ghost and i want to check and clean the pickup screen in the sump when i change them... ive had the thing out 3x already and not looking fwd to a 4th time.

AND.. should i get the guides for the 96 cougar seeing as the windsor heads are not drilled for one of the bolt holes or get some for a pi motor say a 2002 mustang or crown vic?


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
Sponsored Links
Advertisement

post #2 of 20 (permalink) Old 07-15-2013, 09:44 PM
The Parts Guy

racecougar's Avatar

Join Date: Jul 2002
Location: Imperial, Missouri (near St. L
Age: 36
Posts: 7,265
You can pull the engine or drop the K-member. One way or another, you need additional space between the block and the K-member to remove the oil pan.


Rod @ AzzKicker Cars
[email protected]
90 XR7-The Meth Addict-KB SC'd 5.0L DOHC Stroker
2004 Mustang GT-The Driver-Intake/Exhaust/3.73's
1995 F150 4x4-The Mud Toy-5.0L/4R70W/33's/Warn 8274 Winch
94 LX w/Splitport 3.8L from 2000 Mustang - SOLD
2 - 90 35th Anny Ed SC's
And a TON of parts cars!
racecougar is offline
post #3 of 20 (permalink) Old 07-15-2013, 09:53 PM
PostWhore

nall_one's Avatar

Join Date: Mar 2007
Location: Hickman Nebraska
Age: 31
Posts: 1,273
Garage
yeah, ive herd it can be done by raising the motor a bit, but it would be much easier imo just to pull her out and set her on a stand. then you could go through and reseal the whole motor while your at it.

besides, if you've had her out 3 times so far you have had good practice and should be able to get it done a lot faster this time around :P

and i want to say the later timing guides are made out of a better material that doesn't brake down and plug the pickup tubes. cant say for sure their usable on the older motors, but a lot of parts from the modular motor platform are interchangeable from newer to later designs. hence the PI head swap, its probably worth looking into. you could always order both kits from a part store and lay them out to compare and contrast

RUST!! eating away at me more than the rear fender wells
95 Deep Jewel Green 40th Anniversary Bird / Stock SOHC 190k 96-97 intake swap, 97 Mk8 4R70W, Jmod, 3L27 / energy susp rear spindle, and cobra arm bushings, 93 Mk8 shaft, and LCAs, 225/60r16 on Windstar twin 5spokes, Vogtland 1.6drop springs, Tokico Blues, PBR, and rear-disk swap, 89 SC swaybars

Last edited by nall_one; 07-15-2013 at 09:59 PM.
nall_one is offline
Sponsored Links
Advertisement

post #4 of 20 (permalink) Old 07-16-2013, 03:46 AM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
@racecougar thanks for the quick reply... so its a nogo rocking the motor up with the cherry picker and clearing the K member

@nall one i just had the motor out2 months ago due to some bad main bearings and oil pump... its not the removal, its getting that mofo back under the hood that kills me. i did the timing last summer and was wondering if the guides came apart (the plastic from the metal bracket) because A) O'rylies only had some no name brand i had never heard of... or B) because i used 1996 romeo guides on the pi windsor heads... maybe a bit o both?


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #5 of 20 (permalink) Old 07-17-2013, 05:50 PM
No, Mr. Lemmywinks, No!!!

Moderator

Grog6's Avatar

Join Date: Jun 2005
Location: Harriman, TN
Age: 56
Posts: 10,008
Garage
I'd guess A; I order engine parts from Nick at MHS.

http://www.modularheadshop.com/

Red '96 Cougar XR-7 240k mi. '02 4R70W, PST DS : '03 PI engine, 04 maf, 24lb injectors, 2.5" exhaust, '02 4r70w + Jmod, DirtyD0g TC + cooler + 3/8" lines, 255 walbro fp. Alpine system.
Black '96 Cougar XR-7 (Lazarus) 210k mi PI Intake, '02 4R70W, Jmod, PST DS, GrogTune, Konis, Mark LCA+Poly, racecougar Custom Engine Chain, and JL and racecougar Bracing.
Black '97 Tbird Limited Edition, '02 4R70W, 255 walbro, PST DS, PBR Brakes&SS lines, Toicko Blues & Springs, GrogTune.


"War Is Peace. Freedom Is Slavery. Ignorance Is Strength." - George Orwell.
Truth Isn't Truth. - Rudy Giuliani, 2018 Award winner, “Most Outrageous Diversion” by MSNBC for this quote
Grog6 is offline
post #6 of 20 (permalink) Old 07-17-2013, 07:05 PM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
well after taking off the timing cover i have found the issue... the roll pin on the right bank worked its self out and having only one 8mm bolt holding the timing guide on that side (due to pi swap) the chain and guide got to slapping the snot out of the timing cover... i.e. shavings EVERYWHERE! the motor is out AGAIN... new main and rid bearings AGAIN.. oil pump AGAIN... 2nd bottom end in 6 months.

anyone know if there is enough meat in the head to drill and tap a hole for that 2nd 8mm bolt on the head... looks like there is but i done want to hit a water/oil passage.


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #7 of 20 (permalink) Old 07-17-2013, 10:09 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
what roll pin??? Are you simply talking about the bolts that hold the straight chain guide to the head/block?

Last edited by guitar maestro; 07-17-2013 at 11:19 PM.
guitar maestro is offline
post #8 of 20 (permalink) Old 07-18-2013, 01:23 AM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
yes.. on my 96 romeo block there are two 8mm bolts that hold the strait chain guide to the head and on the block (downward angled end) there is a roll pin pushed into the block on each side.
it has to be factory im the only person that's been in the motor.. hell it has the factory starter on it and had the factory water pump until last summer when i changed it.. still have the wp and its in working order lol


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #9 of 20 (permalink) Old 07-18-2013, 08:09 AM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
The roll pin is known as the timing guide pivot pin. It is solid steel pressed into an iron block. I just don't see it backing out in any way shape or form. IF that thing worked itself out, the entire curved chain guide (which is the only thing it supports and allows it to "pivot") would have fallen off, yet you're talking about the straight chain guide (or are you?). I can't get exactly what it is that is happening here because your details don't add up....

Quote:
the roll pin on the right bank worked its self out....
The pin only supports the curved chain guide. So that doesn't make sense with the next quote...

Quote:
....having only one 8mm bolt holding the timing guide on that side....
The only chain-guide that bolts hold in place is the straight chain guide, not the curved one that pivots on the pin. The Windsors use two bolts (one goes into the head, and the other into the block). Some Romeo chain guides use three bolts (2 into the head, and one into the block). Some Romeos use the newer style all-plastic straight guides (like the windsor guides) that utilize only one bolt into the head (even though the head itself has the threaded hole for the other bolt), and the other into the block.

Take for example, Casey Fry. He is an idiot. Look at what he did.



and then we have germus...

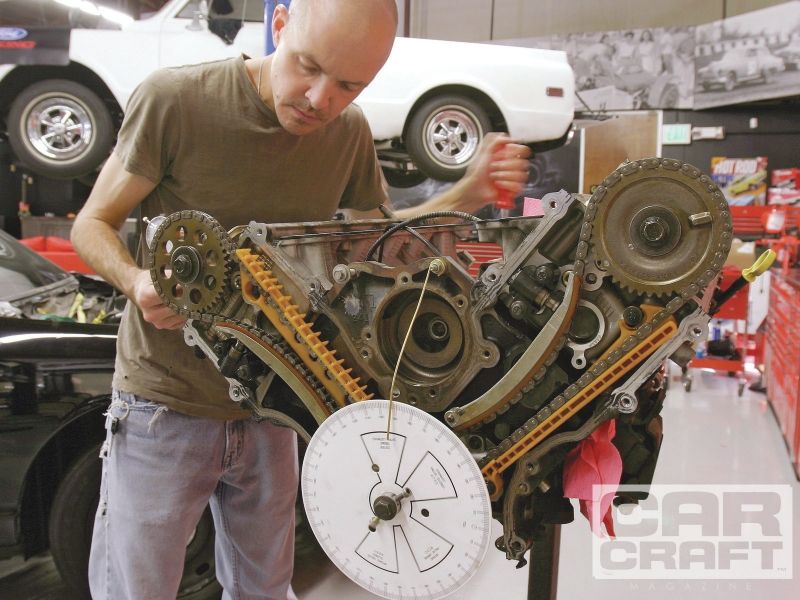

even this guy on "carcraft" who they're obviously trying to pass-off as a "pro" in their article doesn't know that he should ditch the all-plastic straight guides in favor of the steel-backed ones (not just because of the steel backing, but that engine likely has romeo heads by the visible extra threaded boss not being utilized on the left head), AND ditch the crappy all-plastic bodied tensioners that are known to disintegrate just like the all plastic chain guides.


Last edited by guitar maestro; 07-18-2013 at 09:00 AM.
guitar maestro is offline
post #10 of 20 (permalink) Old 07-18-2013, 02:28 PM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
my engine had originally and i got the steel backed timing guides (strait ones) and the chain guides (curved ones). ive never seen the all plastic ones. however on my block (ref the 1st picture which is my setup i.e. windsor heads / romeo block) the lower most yellow circle is a non-threaded hole with a roll pin pressed in NOT a bolt hole like the upper 2 yellow circles. i still have one on the left bank (driver side) the the right bank worked its way out (at about 7 o'clock of the water pump area in pic 1, behind the chain) you can also see in the 1st picture that the lower hole (in the block) is larger than the other two (in the heads) .

SO... you are prob gonna bag on my for my fix but time and money is short these days...

i took some threaded rod and JB welded it into the lower hole, and the length is about 1/16 shy of the inside of the timing cover. so even if it wants to back out again it can't w/o going through the timing cover.

i know pi romeo heads would have been ideal but i searched junk yards and craigslist for over a month, and the 3 sets i found that were not $600+ were either very warped or had cam journals that were toasted... which left me with the windsor heads ($225 and $22 for one bent intake valve).


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #11 of 20 (permalink) Old 07-18-2013, 02:48 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
hmm I stand corrected. There is a pin that I had not remembered about. I guess I been staring at aluminum blocks for wayyy to long.
guitar maestro is offline
post #12 of 20 (permalink) Old 07-18-2013, 08:26 PM
The Parts Guy

racecougar's Avatar

Join Date: Jul 2002
Location: Imperial, Missouri (near St. L
Age: 36
Posts: 7,265
Quote:
Originally Posted by guitar maestro View Post
...even this guy on "carcraft" who they're obviously trying to pass-off as a "pro" in their article...
Where are you getting that Car Craft is trying to pass off McGann as a "pro"? He doesn't come off that way in his articles, and certainly not in person. Are you just going off a feeling you get from the picture you posted?

Rod @ AzzKicker Cars
[email protected]
90 XR7-The Meth Addict-KB SC'd 5.0L DOHC Stroker
2004 Mustang GT-The Driver-Intake/Exhaust/3.73's
1995 F150 4x4-The Mud Toy-5.0L/4R70W/33's/Warn 8274 Winch
94 LX w/Splitport 3.8L from 2000 Mustang - SOLD
2 - 90 35th Anny Ed SC's
And a TON of parts cars!
racecougar is offline
post #13 of 20 (permalink) Old 07-18-2013, 09:09 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
Quote:
Originally Posted by racecougar View Post
Where are you getting that Car Craft is trying to pass off McGann as a "pro"? He doesn't come off that way in his articles, and certainly not in person. Are you just going off a feeling you get from the picture you posted?
fine, then obvious to me. Call it an overactive imagination or whatever.
guitar maestro is offline
post #14 of 20 (permalink) Old 07-18-2013, 09:39 PM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
yellow = 8mm bolts
purple = no bolt hole
red = the roll pins

this was when i did a mockup of the pi install

[IMG][/IMG]

this is a close up of the roll pins at the bottom of each of the chain guides

[IMG][/IMG]


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #15 of 20 (permalink) Old 07-18-2013, 10:10 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
why does the head on the left engine side have two bolt holes yet the head on the right engine side only has one?
guitar maestro is offline
post #16 of 20 (permalink) Old 07-18-2013, 10:13 PM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
i dont know to be honest. thats just how it is =\


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #17 of 20 (permalink) Old 07-18-2013, 11:31 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
weird. does the Left head have girdled cam caps or individual cam caps?
guitar maestro is offline
post #18 of 20 (permalink) Old 07-19-2013, 07:13 PM Thread Starter
Newbie

D. Boss's Avatar

Join Date: Jan 2009
Location: Rowlett Tx
Posts: 16
Send a message via AIM to D. Boss Send a message via Yahoo to D. Boss
they both have individual cam caps. i was told they were off an 02 f150.


MagnaFlo high flow cats and X Pipe, Custom Bent 2.25 Pipes (headers to tips), Cherry Bomb Turbo II Mufflers,
PI Swap, Upgraded Trans w/ Aux Cooler, Dual Air/Fuel Gauges (B1&2 S1), Manifold Vac/Pressure Gauge, 7 Band Eq, JBL Amp, 3 MTX 10' subwoofers, Kicker Comp 3ways (Doors & Back Seats)
D. Boss is offline
post #19 of 20 (permalink) Old 07-19-2013, 09:15 PM
Humble MN12 Genius
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Posts: 16,577
Garage
Send a message via Yahoo to XR7-4.6
I think my windsors had the LH head with that second hole drilled/tapped as well. The back of the RH head should have that present as well. Why it's not there on both ends, I'll never know

-Matt
XR7-4.6 is offline
post #20 of 20 (permalink) Old 07-19-2013, 10:43 PM
Moderator & Teksid Whore
Super Moderator

guitar maestro's Avatar

Join Date: Jul 2002
Location: Laredo, Texas
Age: 39
Posts: 11,961
Send a message via MSN to guitar maestro Send a message via Yahoo to guitar maestro
weird. Definitely don't try to drill a hole for that second bolt on the head. You'll immediately run into a coolant passage right above the combustion chamber. If there was a boss casted you might've had a chance, but as it stands nope.
guitar maestro is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
