Best block to start with?

I am still in my planning stages of my 4.2 build/swap. I have done a good bit of reading and searching and reading. It has gotten time to make some decisions on a few things, and I need a little guidance.

I have multiple splitport engines to choose from. There are 4.2L F-150s, 3.8L Windstars, and 3.8L Mustangs all of multiple years I have access to. I originally was thinking of grabbing a 2004 4.2L short block, and the entire engine/trans/harnesses/etc from a 2000 Mustang. Then using the top end from the Mustang on the truck block and the Windstar upper. I don't see much issue with that all working out. I would keep the Mustang trans as a spare.

On another note, last night I was thinking about using an SC short block. From what I have read, the blocks are the same - 3.8 n/a, 3.8 SC, and 4.2 n/a. That being said, the 4.2 difference was that the pistons were different (wrist pin is higher) and the crankshaft was different (iirc). The question here is should I use an SC short block and gain the forged internals, and just buy new/used pistons and a new/used crank (if necessary?)

With the wealth of these engines in my junkyard and the relative ease of interchangeability, I want to use the best factory parts I can. I don't want a power monster, but I figured while I was doing it I might as well use the best of what is available. I have been studying a lot of builds on these engines, but I'm not as sharp as some of you guys with more experience. Any insight or opinions are welcomed. Any suggestions are encouraged. Thanks

1994 Thunderbird - 2000 4.2L M5R2 now has 55k

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W

Last edited by jco1385; 02-01-2013 at 04:14 PM.
jco1385 is offline
Sponsored Links
Advertisement

post #2 of 15 (permalink) Old 02-01-2013, 04:15 PM
Humble MN12 Genius
Super Moderator

XR7-4.6's Avatar

Join Date: Apr 2006
Location: Roselle IL
Posts: 16,643
Garage
Send a message via Yahoo to XR7-4.6
The SC blocks aren't the same, they're substantially beefier than the contemporary N/A blocks. The N/A blocks did get beefed up in 96 though.

-Matt
XR7-4.6 is offline
post #3 of 15 (permalink) Old 02-01-2013, 04:21 PM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Posts: 3,743
Garage
Quote:
Originally Posted by XR7-4.6 View Post
The SC blocks aren't the same, they're substantially beefier than the contemporary N/A blocks. The N/A blocks did get beefed up in 96 though.
Good info. Would it be worth going with the SC block vs the 4.2? I'm not going boosted (and don't plan to later).

1994 Thunderbird - 2000 4.2L M5R2 now has 55k

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W
jco1385 is offline
Sponsored Links
Advertisement

post #4 of 15 (permalink) Old 02-01-2013, 04:38 PM
Seasoned PostWhore

bowez's Avatar

Join Date: Aug 2002
Location: NEAR
Posts: 2,472
From what I've seen I believe a 01+ Mustang 3.8 is on par with a SC.

Almost nothing from a SC will interchange with any other block--not worth the hassles.

If no Boost and you want stroke get the 4.2 that way you get the Ford crank, which is no longer available from Ford.

For the internals SC got forged crank and Rods that's it and guys running 4.2 cranks in SC are having no problems. If you run a SC crank you must run SC mains, #4 journal is different .010 under.

Now 96+ heads are equivalent to SC but slightly different but I assume you would do a Split port.

IF you do go with a SC block you will need a 94/95 for the crank sensor provisions.

If all else fails get a bigger hammer!

93 SC Tbird
MPII w/ Plenum,90mm MAF, 85mm TB, 40# Injectors, 255 lph FP, Double IC w/fan, SCT Chip (Tuned by Jerry),3/4" Raised Top, F52-TT TC, SilverFox AOD 550, SPT-R VB
96 1/2 XR7 Sold and Salvaged
93 5.0 Tbird
bowez is offline
post #5 of 15 (permalink) Old 02-01-2013, 04:54 PM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Posts: 3,743
Garage
Well, I would be running whatever block with the original 94 EEC and harness (modified). That should eliminate any extra sensors past what the factory 94 3.8L had. More good info on that SC stuff. I will go with the original plan of the '04 4.2 then. As for heads, yes I would be using the '00 Mustang heads and lower intake.

Edit: I was also wondering if it would be worth the hassle of keeping the EGR. I've read that you gain a couple MPG with it, but it will be a PITA with this swap. I am willing to do the work though, if that is the better way. I have to get a tune anyways, so deleting it could be written in.

1994 Thunderbird - 2000 4.2L M5R2 now has 55k

1995 Thunderbird - 2002 Alum 4.6L SVO - Awaiting transplant... (Parts donor)

1996 Cougar - 2004 3.9L 4R70W

Last edited by jco1385; 02-01-2013 at 05:03 PM.
jco1385 is offline
post #6 of 15 (permalink) Old 02-01-2013, 06:14 PM
Seasoned PostWhore

S4gunn's Avatar

Join Date: Dec 2010
Location: SF, CA
Age: 41
Posts: 2,627
Garage
Quote:
Originally Posted by jco1385 View Post
Well, I would be running whatever block with the original 94 EEC and harness (modified). That should eliminate any extra sensors past what the factory 94 3.8L had. More good info on that SC stuff. I will go with the original plan of the '04 4.2 then. As for heads, yes I would be using the '00 Mustang heads and lower intake.

Edit: I was also wondering if it would be worth the hassle of keeping the EGR. I've read that you gain a couple MPG with it, but it will be a PITA with this swap. I am willing to do the work though, if that is the better way. I have to get a tune anyways, so deleting it could be written in.
The 4.2L would allow you to re-use your existing exhaust and engine mounts. My plan for the lemons car is to go that route as soon as I can find an affordable block. I'm using my 95 3.8L harness (with some connectors swapped in/extended) and ECU for my splitport already. While others have kept EGR, I would hate to do so as well...
-g

My TCCOA iTrader Rating: (44 / 100% w/ 50+ transactions)

24 Hours of Lemons 2017 Sear Pointless Organizer's Choice
2018 Upgrade: does your TBIRD make Fritos? Mine does
http://goo.gl/csaet4
S4gunn is offline
post #7 of 15 (permalink) Old 02-04-2013, 05:07 PM Thread Starter
Seasoned PostWhore

jco1385's Avatar

Join Date: May 2007
Location: Mobile, AL
Posts: 3,743
Garage
Ok, I did some recon work this weekend. I found that the '04 4.2 block I was looking at may be too far gone to save (easily). Someone has pulled the passenger head and those 3 cylinders/pistons are pretty rusted. There are 2 '99 and a '98 4.2 out there that are complete.

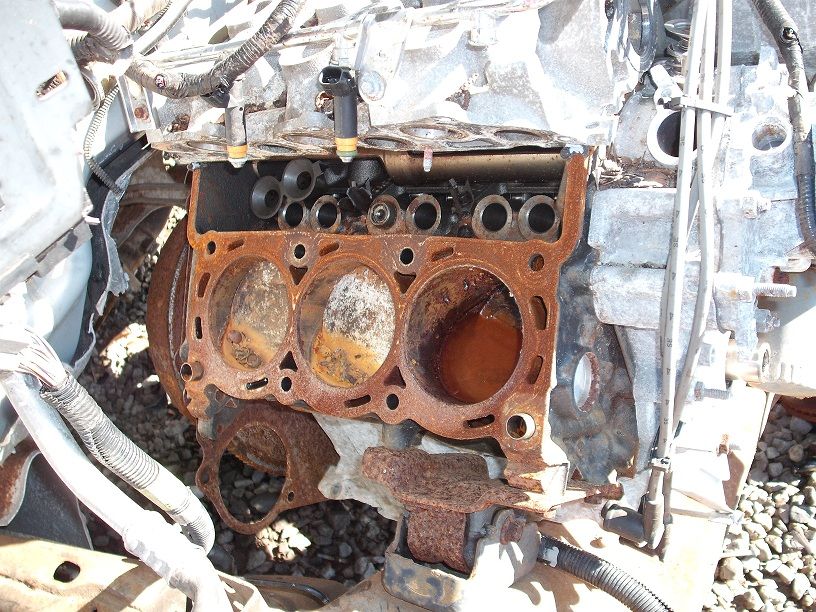

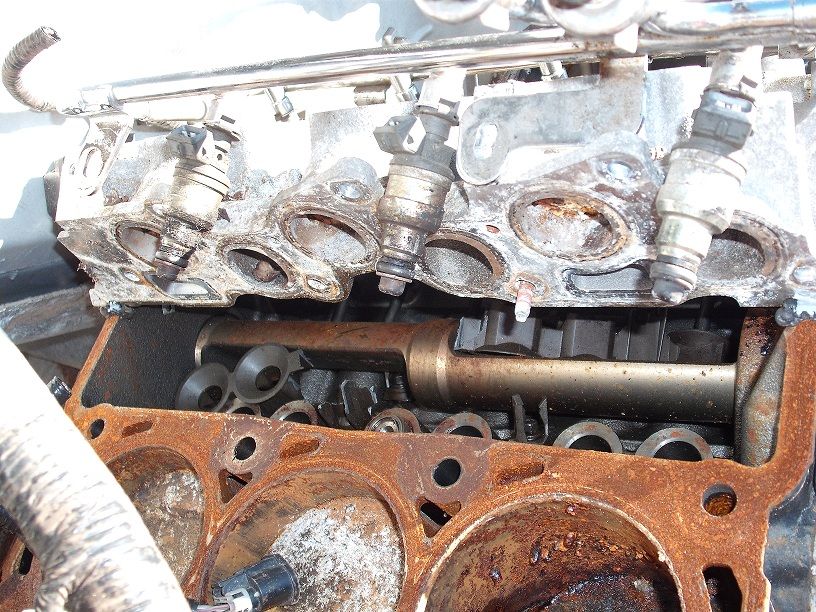

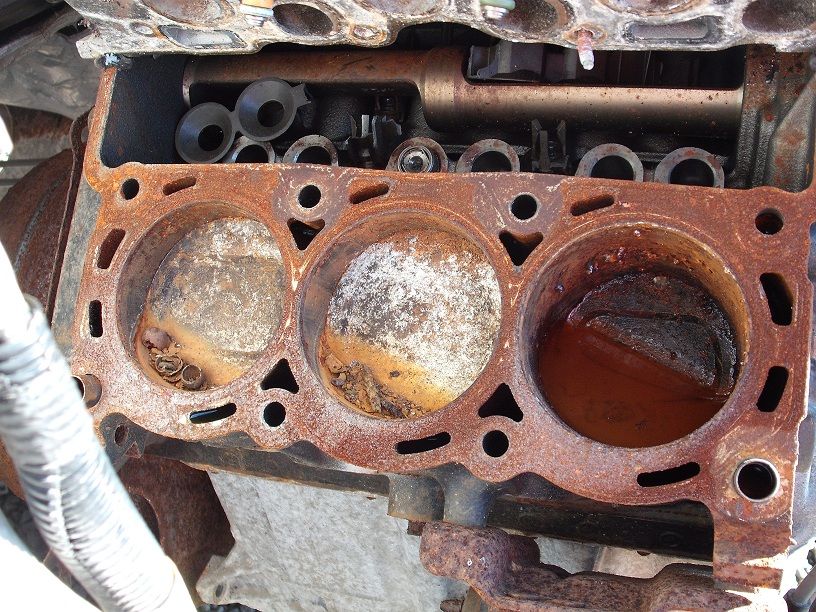

Here is a shot of the damage:

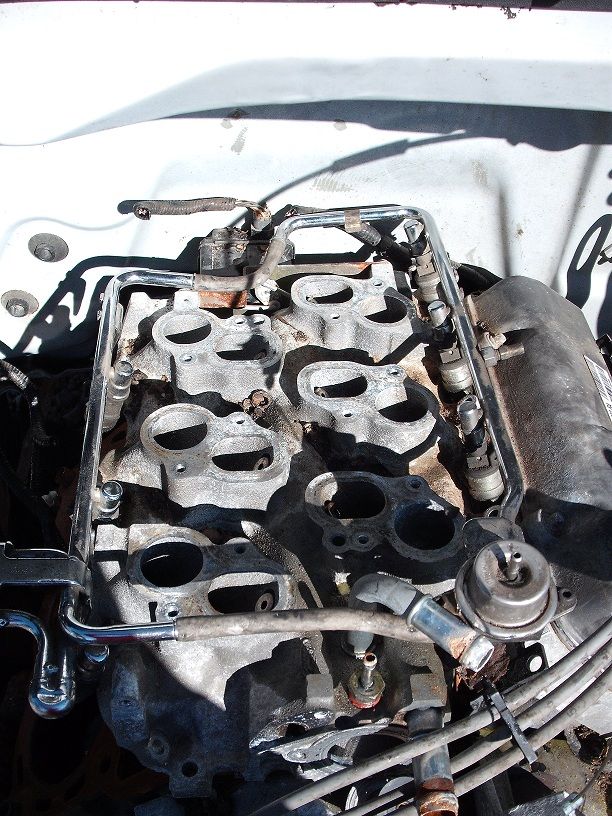

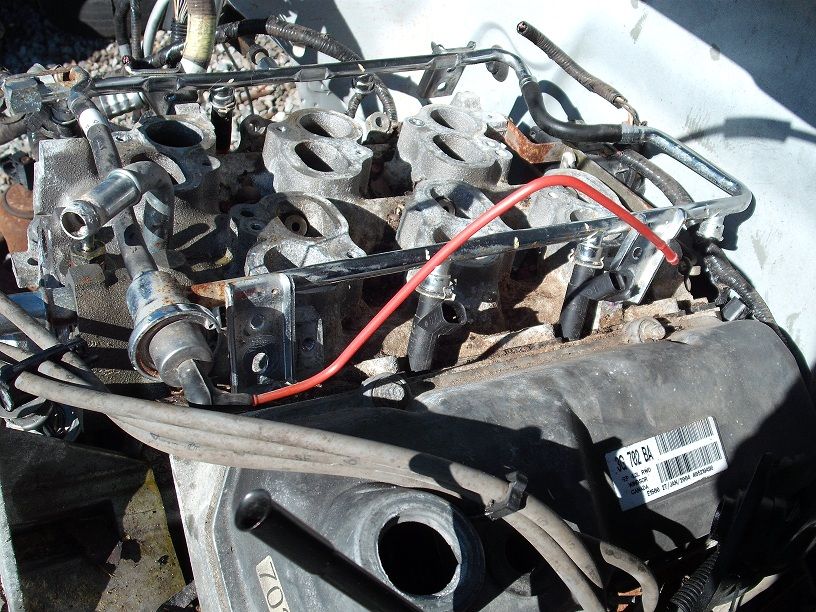

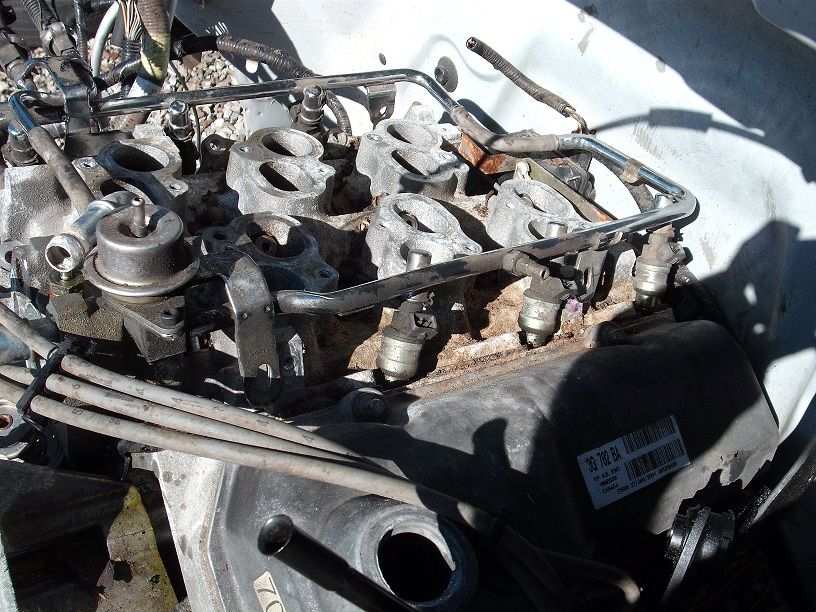

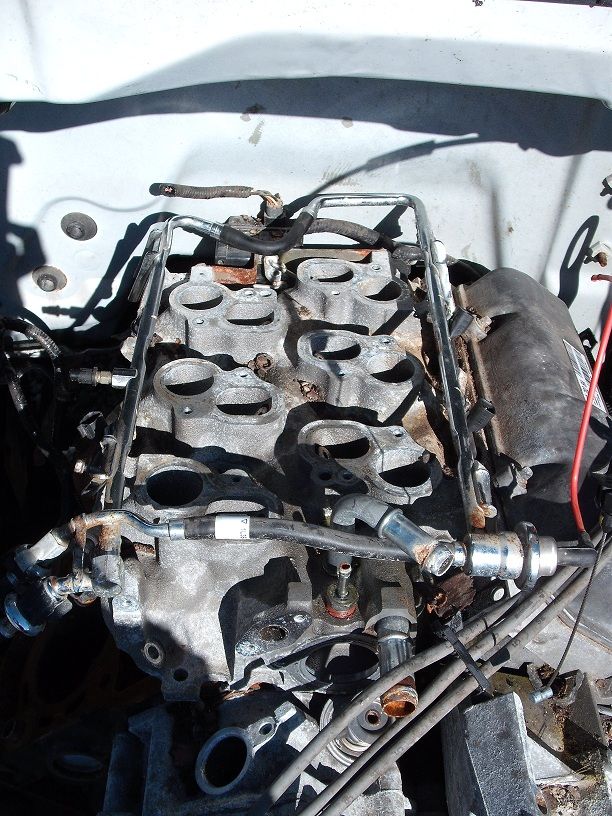

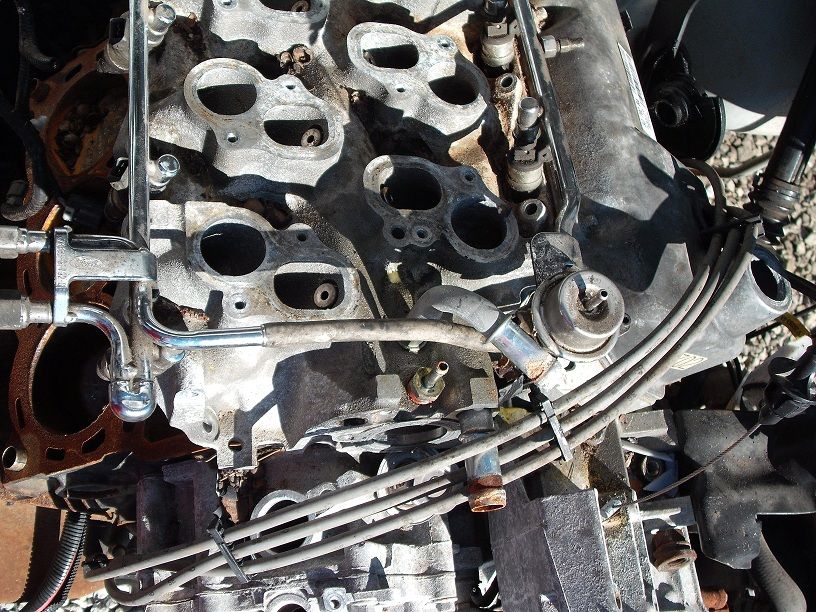

On another note, I did some tinkering with fuel rails. For those that have done this swap, do any of these look like they would pose a problem? (Note: These pictures are on a '04 4.2 block/intake. I'm not sure of the differences between the 4.2 and the 3.8 lowers - if any)
