Mark 8 MLPS wiring diagram

Anyone have a wiring diagram for the MLPS pinout and/or the wiring harness that is on the transmission? Need this for a 1997 Mark 8.
Thanks!

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd

Last edited by supergordo; 02-22-2011 at 08:55 PM.
supergordo is offline
Sponsored Links
Advertisement

post #2 of 17 (permalink) Old 02-22-2011, 08:07 PM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
From a 1995 Mark VIII 4R70W:






~Rick

TCCoA Sig
NetKeym is offline
post #3 of 17 (permalink) Old 02-22-2011, 08:55 PM Thread Starter
SuperNewbie

supergordo's Avatar

Join Date: Nov 2005
Location: Las Vegas
Posts: 2,869
Garage
Send a message via Yahoo to supergordo
Thanks NetKeym. My only mistake is that I didn't post that I need this for a 1997. The MLPS has more pins. Thanks!!

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd
supergordo is offline
Sponsored Links
Advertisement

post #4 of 17 (permalink) Old 02-22-2011, 09:10 PM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Quote:
Originally Posted by supergordo View Post
Thanks NetKeym. My only mistake is that I didn't post that I need this for a 1997. The MLPS has more pins. Thanks!!

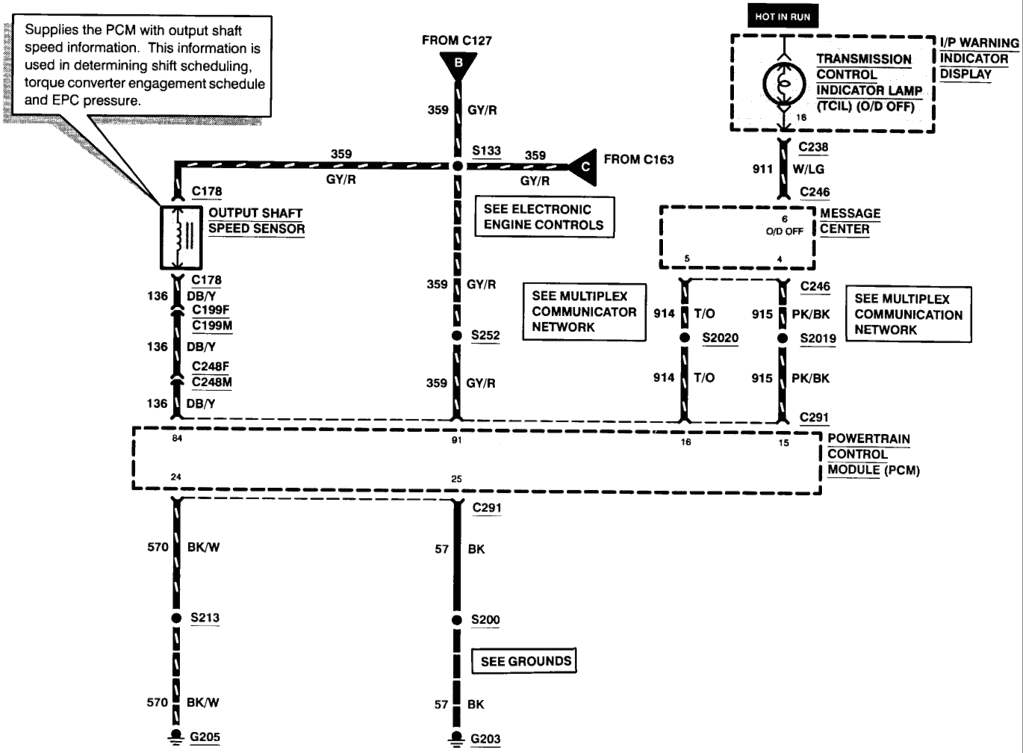

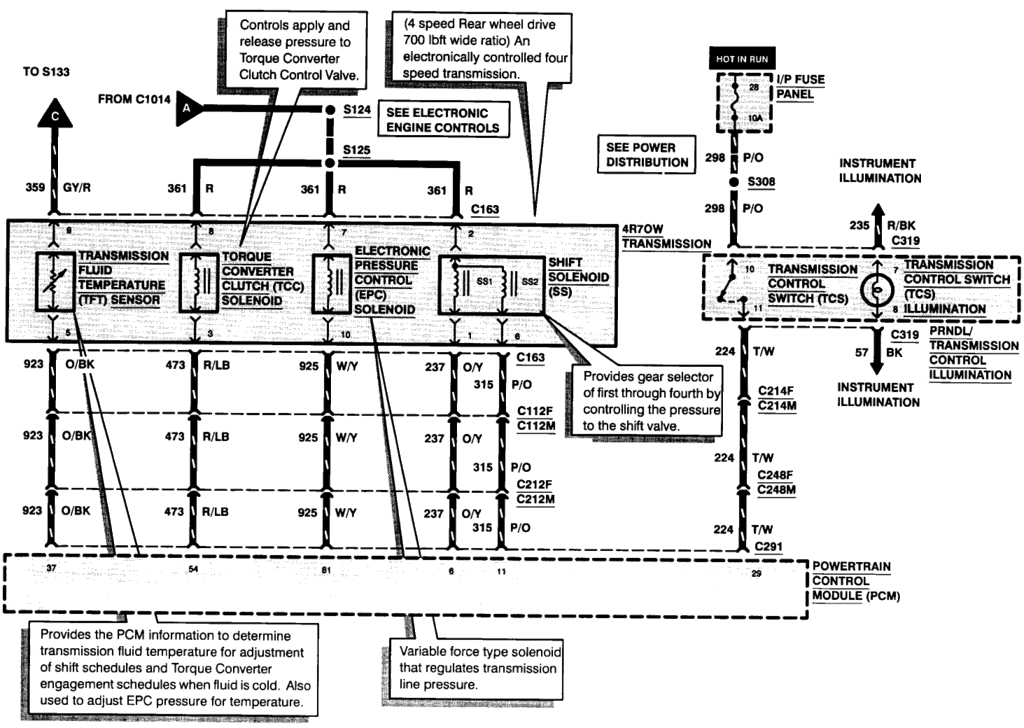

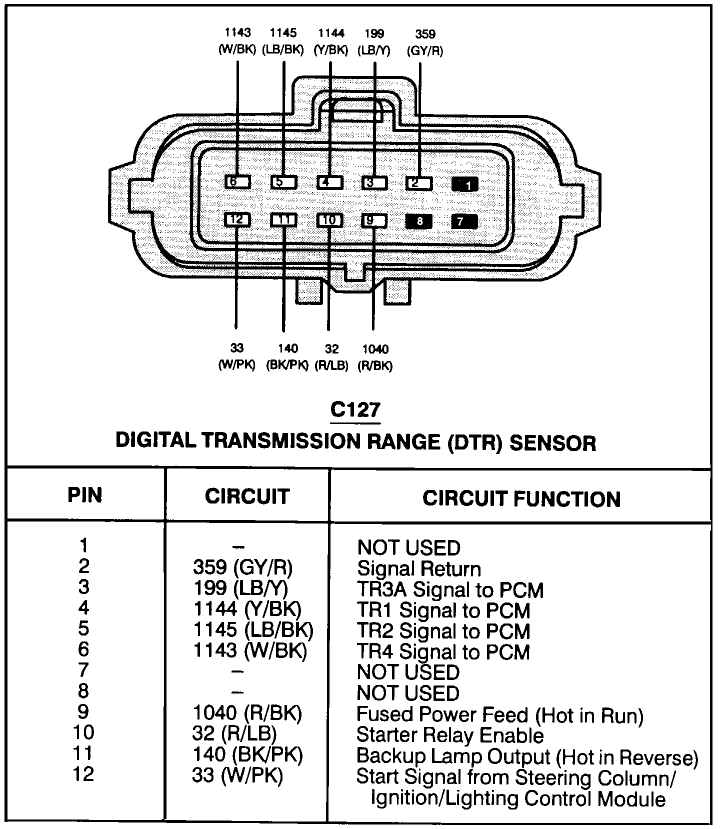

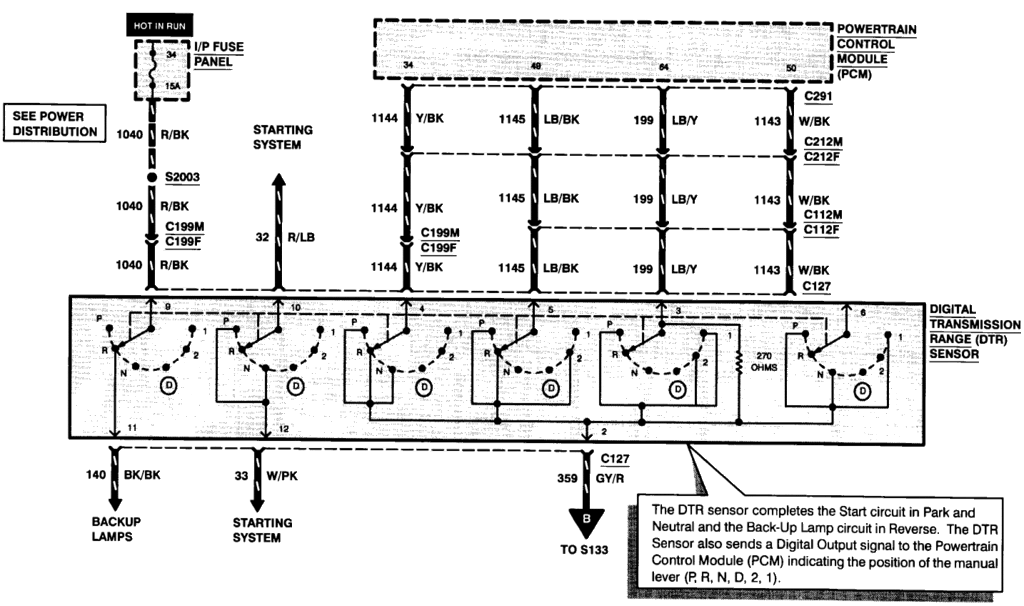

Not A Problem! Ask and Ye Shall Receive: 1997 Mark VIII MLPS & 4R70W Wiring:












~Rick

TCCoA Sig
NetKeym is offline
post #5 of 17 (permalink) Old 02-23-2011, 11:13 AM Thread Starter
SuperNewbie

supergordo's Avatar

Join Date: Nov 2005
Location: Las Vegas
Posts: 2,869
Garage
Send a message via Yahoo to supergordo
Man that is absolutely perfect!

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd
supergordo is offline
post #6 of 17 (permalink) Old 02-24-2011, 11:33 AM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Quote:
Originally Posted by supergordo
Quote:
Originally Posted by NetKeym
Quote:
Originally Posted by supergordo
Hey Thanks for the diagrams!
Do you have access to more wiring diagrams for the mark 8's?
Of course! What do you need?
I need anything relating to the circuit that goes from the MLPS to the ECM, AND the shifter circuit. Specifically the LED lighting for the shifter that shows " P R N D 2 1"..
You mean the indicators on the dashboard or the ones by the shifter on the console?

~Rick

TCCoA Sig
NetKeym is offline
post #7 of 17 (permalink) Old 02-24-2011, 12:19 PM Thread Starter
SuperNewbie

supergordo's Avatar

Join Date: Nov 2005
Location: Las Vegas
Posts: 2,869
Garage
Send a message via Yahoo to supergordo
Quote:
Originally Posted by NetKeym View Post
You mean the indicators on the dashboard or the ones by the shifter on the console?
Specifically the ones on the shifter. However with the problem I'm trying to correct, having the dashboard diagram might not be bad either.

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd
supergordo is offline
post #8 of 17 (permalink) Old 03-01-2011, 07:31 AM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
1997 Mark VIII Instrumentation Cluster






~Rick

TCCoA Sig
NetKeym is offline
post #9 of 17 (permalink) Old 03-01-2011, 07:34 AM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
1997 Mark VIII Instrumentation Illumination Wiring








~Rick

TCCoA Sig
NetKeym is offline
post #10 of 17 (permalink) Old 03-07-2011, 09:35 AM Thread Starter
SuperNewbie

supergordo's Avatar

Join Date: Nov 2005
Location: Las Vegas
Posts: 2,869
Garage
Send a message via Yahoo to supergordo
Awesome stuff! NetKeym, do you possibly have the diagram that shows the LED's for the shifter and in the dash for the PRNDL? Might be related to the info center, but I'm not sure.

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd
supergordo is offline
post #11 of 17 (permalink) Old 03-07-2011, 10:18 AM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Quote:
Originally Posted by supergordo View Post
Awesome stuff! NetKeym, do you possibly have the diagram that shows the LED's for the shifter and in the dash for the PRNDL? Might be related to the info center, but I'm not sure.
Post #8 first pic above shows the LED's right in the center of the diagram & instrument cluster bulbs right under that. I'm not sure what else you are looking for.

~Rick

TCCoA Sig
NetKeym is offline
post #12 of 17 (permalink) Old 03-07-2011, 11:22 PM
6th Gear Poster

BUCK's Avatar

Join Date: Jul 2009
Location: SOUTH CAROLINA
Age: 65
Posts: 649
Thumbs up Should Be A Sticky

This awesome Thread should be stickied by Mod IMO ~!

GET OFF MY LAWN~! ... & Let's not forget guys... There's still a dead Imaginary Ex-Girlfriend out there...
BUCK is offline
post #13 of 17 (permalink) Old 03-08-2011, 05:05 PM Thread Starter
SuperNewbie

supergordo's Avatar

Join Date: Nov 2005
Location: Las Vegas
Posts: 2,869
Garage
Send a message via Yahoo to supergordo
Quote:
Originally Posted by NetKeym View Post
Post #8 first pic above shows the LED's right in the center of the diagram & instrument cluster bulbs right under that. I'm not sure what else you are looking for.
I must have missed it on my first look. Thanks, I'll check it again.

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd
supergordo is offline
post #14 of 17 (permalink) Old 03-08-2011, 05:07 PM Thread Starter
SuperNewbie

supergordo's Avatar

Join Date: Nov 2005
Location: Las Vegas
Posts: 2,869
Garage
Send a message via Yahoo to supergordo
Yeah, I must have scrolled down to quickly the first time I looked at it.

1995 Cougar XR7 4.6
1997 Thunderbird LX 4.6
1977 Country Squire 460
1985 Capri RS 5.0, 5spd
1997 Thunderbird 4.6
1984 Capri RS 5.0,5spd
supergordo is offline
post #15 of 17 (permalink) Old 05-05-2011, 04:41 PM
5th Gear Poster

Join Date: May 2003
Location: new york city
Posts: 414
i should have asked a long time ago. What does mlps stand for. I am looking for this in the parts section of a lot of auto part websites and i can't find it. Is there another name for it. Also is ford the only part to use when replacing this or is there any acceptable substitutes.
tino is offline
post #16 of 17 (permalink) Old 05-05-2011, 04:49 PM
Seasoned PostWhore

Chris_Murder's Avatar

Join Date: Sep 2006
Location: Las Vegas, Nevada
Posts: 5,408
Send a message via AIM to Chris_Murder
Autozone/pepboys/etc. call it a neutral safety switch. It stands for manual lever position switch IIRC.

-1996 Pearl White Thunderbird 4.6 Sport 4v with many mods:
Current Best: 13.583 @ 103.74 10/2014.
227hp/241tq measured on calibrated mustang dyno, tested at full vehicle simulation with inertia enabled, no number skewing.
-2001 White Ford F-250 Super Duty 6.8 V10, 4-door, 4x4, Limo Tint, BFG KO2's, Bilstein 7100 Remote Reservoir Race Bypass Shocks, 6" Spring lift, Kenwood Double Din, K&N Intake, FlowMaster Exhaust
Amber_Murder's Daily Driver.
-2005 White GMC Sierra 3500 6.6 Duramax, Dually, 4-door, 4x4, Limo Tint, BFG Commercial T/A's, Rancho RS9000XL Shocks, Kenwood Double Din, K&N Intake, Banks Monster Exhaust
Chris_Murder's Daily Driver.
Chris_Murder is offline
post #17 of 17 (permalink) Old 05-06-2011, 09:54 AM
5th Gear Poster

Join Date: May 2003
Location: new york city
Posts: 414
Thank you for the info it is greatly appreciated.
