Mark viii diff specs - TCCoA Forums

LinkBack Thread Tools
post #1 of 6 (permalink) Old 06-27-2013, 03:30 PM Thread Starter
4th Gear Poster

97 30th's Avatar

Join Date: Apr 2012
Location: Elburn,IL
Age: 55
Posts: 296
Mark viii diff specs

Hi guys I'm putting together an alum 3.73 trac-lok dif for my cat and I'm wondering if any body has a mark viii manual and can tell me the bearing preload and bearing cap torque specs. I can't find anywhere if they're different from the iron case specs or not and would rather not buy a Mark viii manual just for that if I can avoid it. Thanks in advance Mike

You can't fix stupid
97 30th is offline
Sponsored Links
Advertisement

post #2 of 6 (permalink) Old 06-27-2013, 06:03 PM
Seasoned PostWhore

NetKeym's Avatar

Join Date: Aug 2009
Location: Florida
Posts: 5,862
Quote:
Originally Posted by 97 30th View Post
Hi guys I'm putting together an alum 3.73 trac-lok dif for my cat and I'm wondering if any body has a mark viii manual and can tell me the bearing preload and bearing cap torque specs. I can't find anywhere if they're different from the iron case specs or not and would rather not buy a Mark viii manual just for that if I can avoid it. Thanks in advance Mike
I looked up a 1997 Lincoln Mark VIII differential specifications in Alldata and other vehicles and they all seem to be the same. There does NOT seem to be any specifics to the aluminum case.

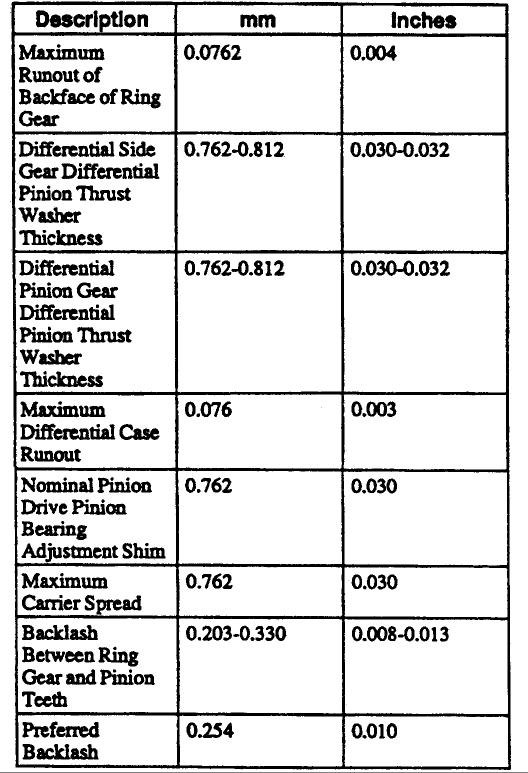

The numbers are as follows:

Ford Traction Lok 8.8":
Backlash Between Ring Gear and Pinion Teeth = 0.203-0.330mm (0.008-0.013")
Maximum Backlash Variation Between Teeth = 0.1016mm (0.004")

Ford 8.8":
Maximum Runout of Backface of Ring Gear = 0.0762mm (0.003")
Maximum Axle Shaft Endplay = 0.762mm (0.030")
Differential Side Gear Thrust Washer Thickness = 0.762-0.812mm (0.030-0.032")
Differential Pinion Gear Thrust Washer Thickness = 0.762-0.812mm (0.030-0.032")
Maximum Differential Case Runout = 0.0762mm (0.003")
Nominal Differential Bearing Pre-Load Adjustment Shim = 6.75mm (0.265")
Backlash Between Ring Gear and Pinion Teeth = 0.203-0.330mm (0.008-0.013")
Maximum Backlash Variation Between Teeth = 0.1016mm (0.004")
Maximum Radial Runout of Companion Flange in Assembly = 0.25mm TIR (0.010" TIR)
Available Pinion Gear Shims in Steps of:
0.0254mm (0.001") = 0.254-0.965mm (0.010-0.038")
224mm (8.8 inches)


~Rick

TCCoA Sig

Last edited by NetKeym; 06-27-2013 at 06:09 PM.
NetKeym is offline
post #3 of 6 (permalink) Old 06-27-2013, 06:36 PM Thread Starter
4th Gear Poster

97 30th's Avatar

Join Date: Apr 2012
Location: Elburn,IL
Age: 55
Posts: 296
Thanks for the info. Did you notice if the torque on the bearing caps is also the same? Thanks Mike




Quote:
Originally Posted by NetKeym View Post
I looked up a 1997 Lincoln Mark VIII differential specifications in Alldata and other vehicles and they all seem to be the same. There does NOT seem to be any specifics to the aluminum case.

The numbers are as follows:

Ford Traction Lok 8.8":
Backlash Between Ring Gear and Pinion Teeth = 0.203-0.330mm (0.008-0.013")
Maximum Backlash Variation Between Teeth = 0.1016mm (0.004")

Ford 8.8":
Maximum Runout of Backface of Ring Gear = 0.0762mm (0.003")
Maximum Axle Shaft Endplay = 0.762mm (0.030")
Differential Side Gear Thrust Washer Thickness = 0.762-0.812mm (0.030-0.032")
Differential Pinion Gear Thrust Washer Thickness = 0.762-0.812mm (0.030-0.032")
Maximum Differential Case Runout = 0.0762mm (0.003")
Nominal Differential Bearing Pre-Load Adjustment Shim = 6.75mm (0.265")
Backlash Between Ring Gear and Pinion Teeth = 0.203-0.330mm (0.008-0.013")
Maximum Backlash Variation Between Teeth = 0.1016mm (0.004")
Maximum Radial Runout of Companion Flange in Assembly = 0.25mm TIR (0.010" TIR)
Available Pinion Gear Shims in Steps of:
0.0254mm (0.001") = 0.254-0.965mm (0.010-0.038")
224mm (8.8 inches)


You can't fix stupid
97 30th is offline
Sponsored Links
Advertisement

post #4 of 6 (permalink) Old 07-05-2013, 06:01 PM Thread Starter
4th Gear Poster

97 30th's Avatar

Join Date: Apr 2012
Location: Elburn,IL
Age: 55
Posts: 296
Just to follow up on this I got a Mark VIII manual and the bearing caps are the same torque but where the preload on the iron case is an additional .004 shim on each side the alum case has total of .014 preload and it's set up a little differently. Mike

You can't fix stupid

Last edited by 97 30th; 07-05-2013 at 07:01 PM.
97 30th is offline
post #5 of 6 (permalink) Old 07-05-2013, 06:27 PM
̇

Rayo's Avatar

Join Date: Nov 2008
Location: Ohio
Posts: 3,702
Garage
Good info..

Thanks for the follow-up..





Rayo..

.
.
1991 Ford Thunderbird Sport

"If you don't know where you're going..Any road will take you there." George Harrison
Rayo is offline
post #6 of 6 (permalink) Old 07-05-2013, 07:03 PM Thread Starter
4th Gear Poster

97 30th's Avatar

Join Date: Apr 2012
Location: Elburn,IL
Age: 55
Posts: 296
Quote:
Originally Posted by Rayo View Post
Good info..

Thanks for the follow-up..





Rayo..
I like to try and help where I can. Mike

You can't fix stupid
97 30th is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TCCoA Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
